Tandem Hydraulic Pump for Case IH, Bosch

Part Number: S.34407Categories: Hydraulics
Tandem Hydraulic Pump for Case IH, Bosch
Tandem Hydraulic Pump for Case IH, Bosch
Tandem Hydraulic Pump for Case IH, Bosch
Tandem Hydraulic Pump for Case IH, Bosch
Tandem Hydraulic Pump for Case IH, Bosch

Part Number: S.34407

Grade: Replacement

Part Details

Tandem Hydraulic Pump Max. LPM: 57.4 | 49.5, Max. GPM: 15.16 | 13.08,Pump rotation: Anti-Clockwise.

Technical Information

Brand Sparex

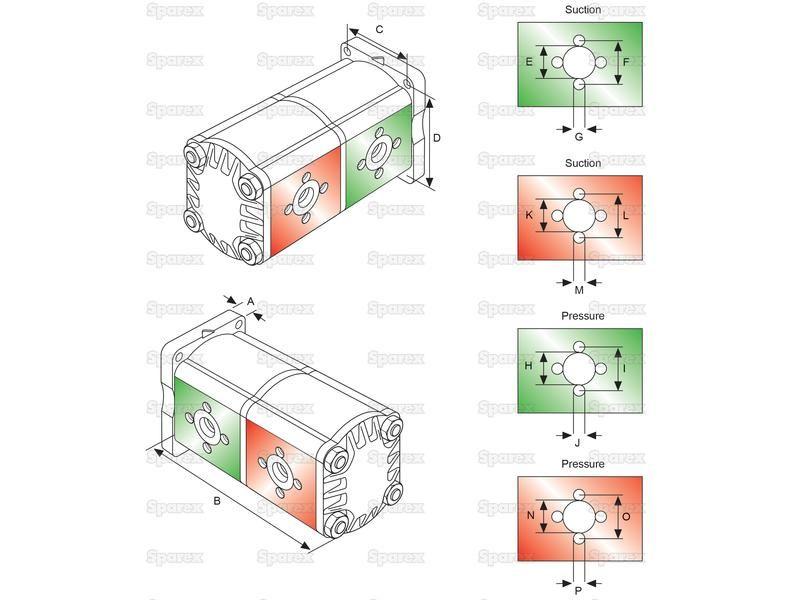

Diagram specifications A: , - B (mm): 239.7, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6, - K: 20, - L: 40, - M: M6, - N: 15, - O: 35, - P: M6.
Front inlet hole fixing hole size M6
Front inlet hole fixing hole spacing 40
Front inlet hole size 20
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 35
Front outlet hole size 15
Inner max. gallon per minute 15.16
Inner maximium litres per minute 57.4
Length mm 239.7
Outer max. gallons per minute 13.08
Outer maximium litres per minute 49.5
Pump rotation Anti-Clockwise
Pump type Tandem Pump
Rear Inlet Hole Fixing Hole Size M6
Rear Inlet Hole Fixing Hole Spacing 40
Rear Inlet Hole Size 20
Rear Outlet Hole Fixing Hole Size M6
Rear Outlet Hole Fixing Hole Spacing 35
Rear Outlet Hole Size 15
Side hole spacing 60
Tariff Code 8413603190
Top hole spacing 60

Models

Case IH
1255 (55 Series), 1455 (55 Series), 1455XL

Manufacturer Part Numbers

Bosch
0510 555 306, 0510555303, 0510555306, 510555306
Case IH
3226942R91, 3226942R93
