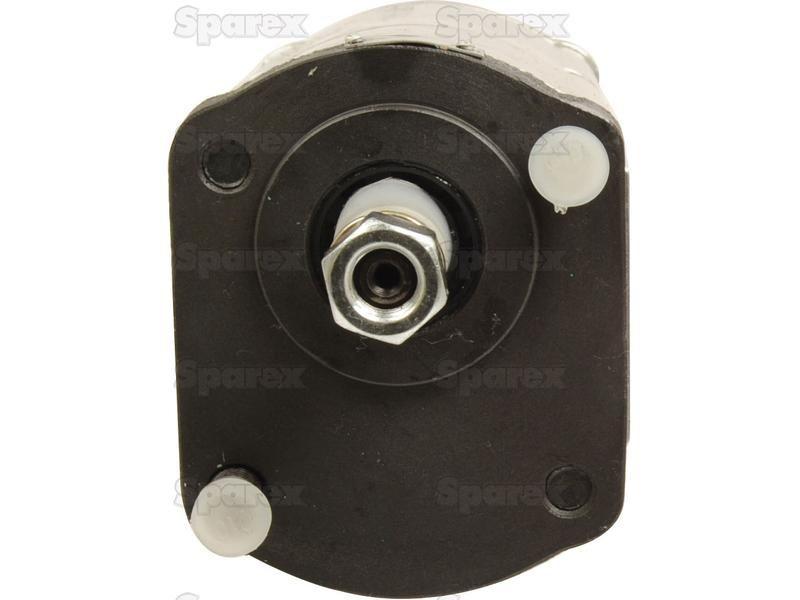

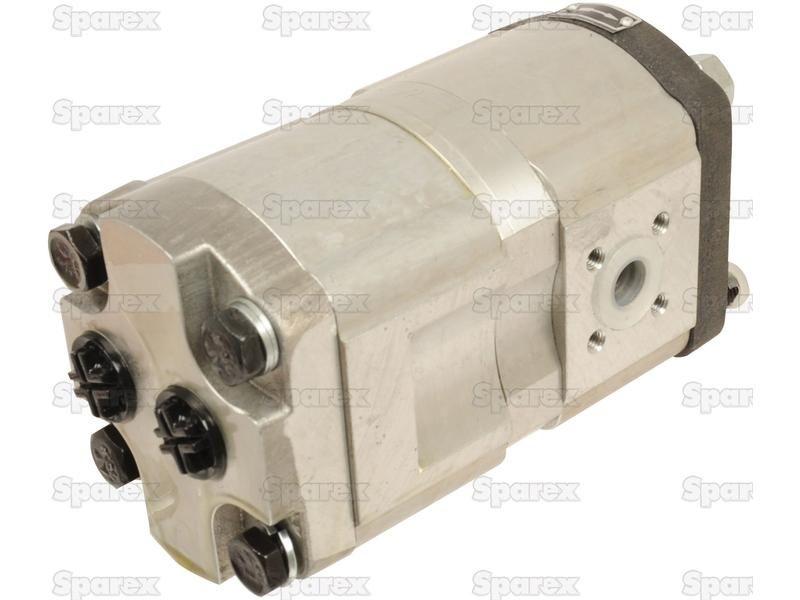

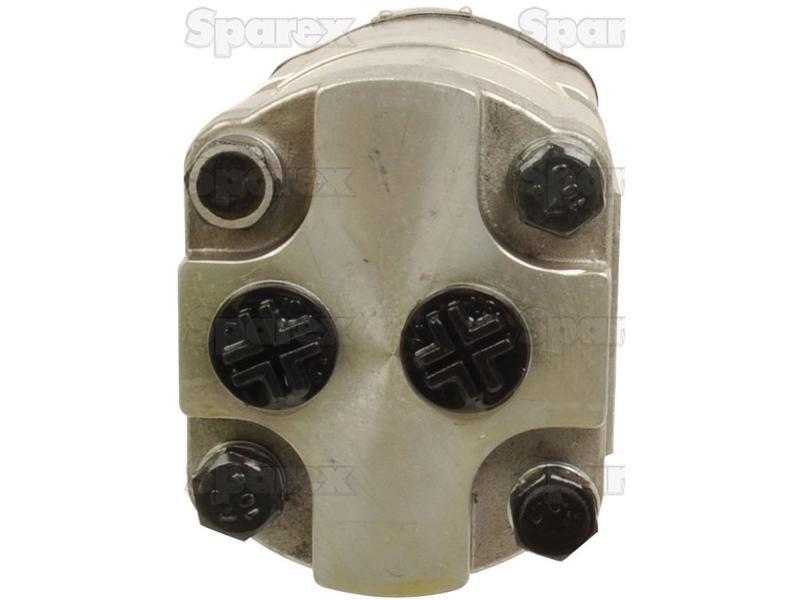

Tandem Hydraulic Pump for Case IH 745XL
Part Number: S.34403Categories: Hydraulics
Part Number: S.34403
Grade: Replacement
Part Details
Tandem Hydraulic Pump
Technical Information
| Brand | Sparex |

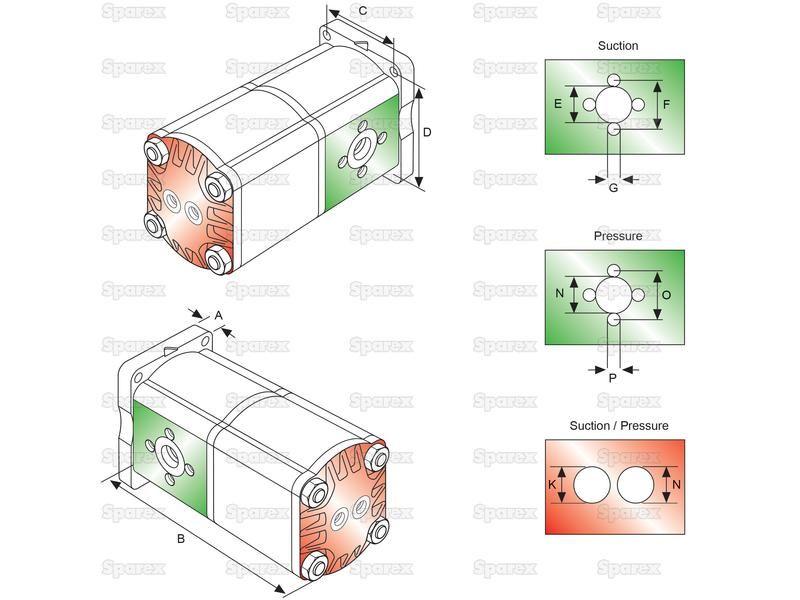

| Diagram specifications | A: , - B (mm): 161.8, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6, - K: M18 x 1.5, - L: , - M: , - N: M18 x 1.5, - O: , - P: . |
| Front inlet hole fixing hole size | M6 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 35 |
| Front outlet hole size | 15 |
| Inner max. gallon per minute | 6.3 |
| Inner maximium litres per minute | 24 |
| Length mm | 161.8 |
| Outer max. gallons per minute | 6.3 |
| Outer maximium litres per minute | 24 |
| Pump rotation | Anti-Clockwise |
| Pump type | Tandem Pump |
| Rear Inlet Hole Size | M18 x 1.5 |
| Rear Outlet Hole Size | M18 x 1.5 |
| Side hole spacing | 60 |
| Tariff Code | 8413603190 |
| Top hole spacing | 60 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510465321, 0510465338, 0510465349 |
| Case IH |
| 1986964C1, 3147535R91, 3147535R92, 3147535R94, 3216613R91 |
