Tandem Hydraulic Pump Bosch (0510 565 324, 0510565324, 510565324)

Part Number: S.344823Categories: Hydraulics
Tandem Hydraulic Pump Bosch (0510 565 324, 0510565324, 510565324)
Tandem Hydraulic Pump Bosch (0510 565 324, 0510565324, 510565324)
Tandem Hydraulic Pump Bosch (0510 565 324, 0510565324, 510565324)
Tandem Hydraulic Pump Bosch (0510 565 324, 0510565324, 510565324)

Part Number: S.344823

Grade: Replacement

Part Details

Tandem Hydraulic Pump Max. LPM: 33 | 24, Max. GPM: 8.72 | 6.34,Pump rotation: Anti-Clockwise.

Technical Information

Brand Sparex

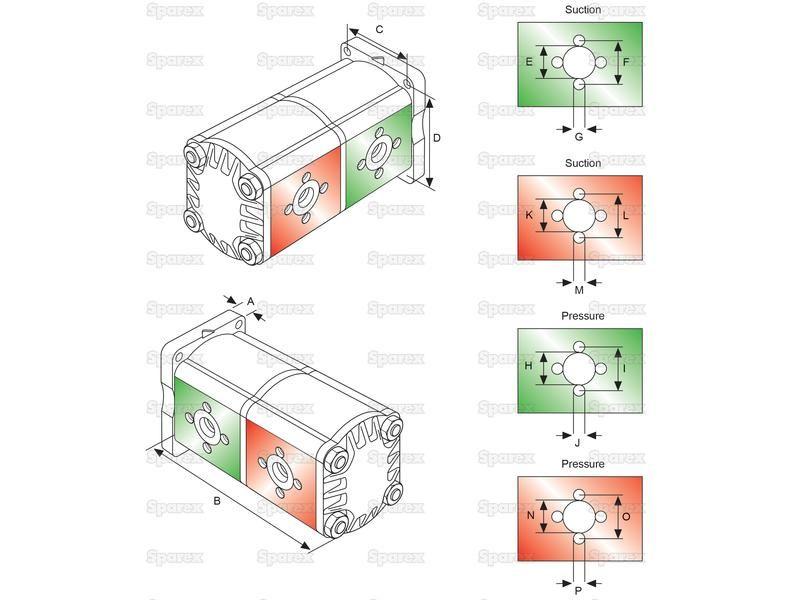

Diagram specifications A: , - B (mm): 182, - C: 60, - D: 60, - E: 15, - F: 35, - G: M6, - H: 20, - I: 40, - J: M6, - K: 15, - L: 35, - M: M6, - N: 20, - O: 40, - P: M6.
Front inlet hole fixing hole size M6
Front inlet hole fixing hole spacing 35
Front inlet hole size 15
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 40
Front outlet hole size 20
Inner max. gallon per minute 8.72
Inner maximium litres per minute 33
Length mm 182
Outer max. gallons per minute 6.34
Outer maximium litres per minute 24
Pump rotation Anti-Clockwise
Pump type Tandem Pump
Rear Inlet Hole Fixing Hole Size M6
Rear Inlet Hole Fixing Hole Spacing 35
Rear Inlet Hole Size 15
Rear Outlet Hole Fixing Hole Size M6
Rear Outlet Hole Fixing Hole Spacing 40
Rear Outlet Hole Size 20
Side hole spacing 60
Tariff Code 8413603190
Top hole spacing 60

Manufacturer Part Numbers

Bosch
0510 565 324, 0510565324, 510565324
