Swinging Drawbar Hinge Pin 19x297mm for Massey Ferguson 230 (200 Series)
Part Number: S.2731Categories: PTO (shaft), Linkage
Part Number: S.2731
Grade: Replacement
Part Details

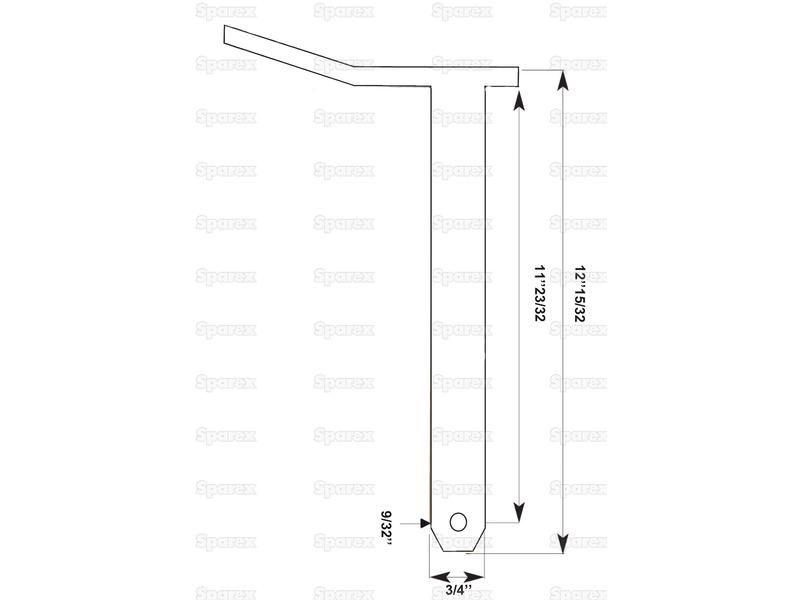

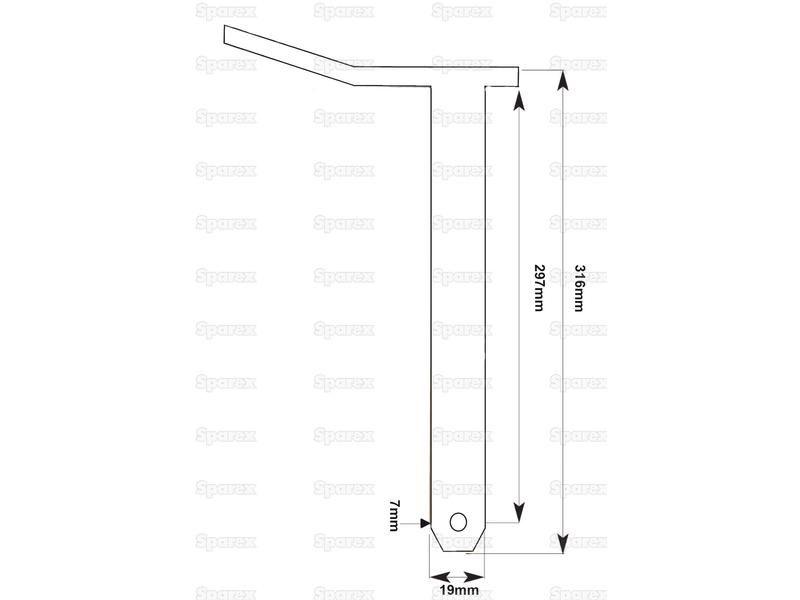

Swinging Drawbar Hinge Pin 19x297mm Working length: 297mm, Overall length: 316mm, Hole Ø: 7mm
Technical Information
| A Ø ins | 9/32 |
| A Ø mm | 7 |
| A ins | 12 11/16 |
| A mm | 316 |
| B Ø ins | 3/4 |
| B Ø mm | 19 |
| B ins | 11 3/4 |
| B mm | 297 |
| Brand | Sparex |
| C ins | 9/32 |
| C mm | 297 |
| D Ø ins | 3/4 |
| D Ø mm | 19 |
| Hole Ø ins | 9/32 |
| Hole Ø mm | 7 |
| Overall length ins | 12 15/32 |
| Overall length mm | 316 |
| Pin Ø ins | 3/4 |
| Pin Ø mm | 19 |
| Tariff Code | 8708999790 |
| Working length ins | 11 23/32 |
| Working length mm | 297 |
Manufacturer Part Numbers
| Massey Ferguson |
|---|
| 886163M1, 886163M91 |
