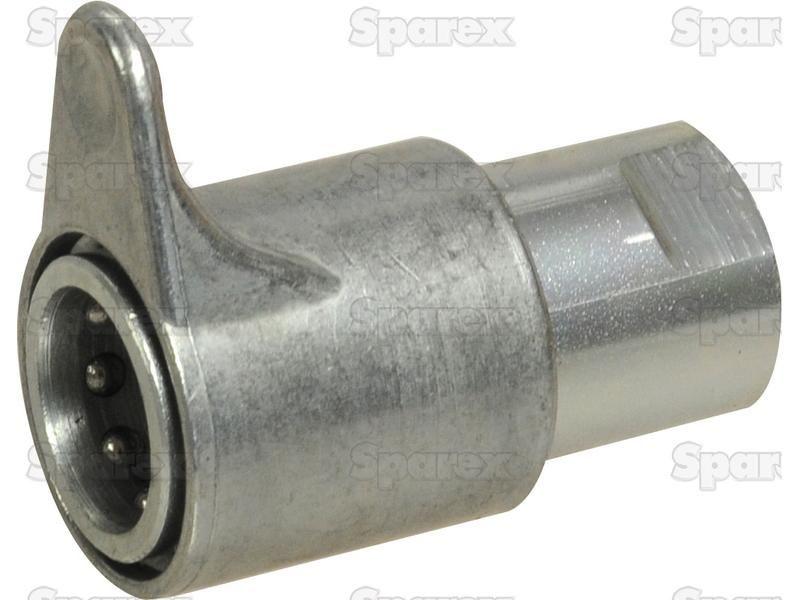

Stauff Quick Release Hydraulic Coupling Female 1/2'' Body x M22 x 1.50 Metric Female Thread
Part Number: S.30216Categories: Hydraulics
Part Number: S.30216
Grade: Replacement
Part Details
Stauff Quick Release Hydraulic Coupling Female 1/2'' Body x M22 x 1.50 Metric Female Thread
Technical Information

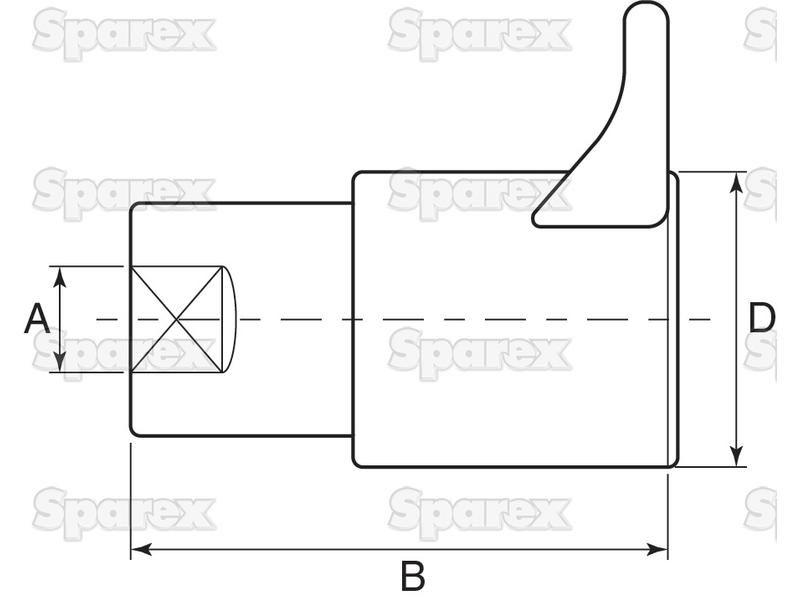

| A mm | M22 x 1.50 |
| B mm | 70 |
| Body size ins | 1/2 |
| Brand | Stauff |
| Coupler type | Standard Coupling With Poppet Valve |
| D Ø mm | 38 |
| Flow rate litres per minute | 100 |
| ISO Rating | ISO A |
| Length mm | 70 |
| Male Female | Female |
| Material | Carbon Steel/ |
| Maximum Working Pressure bar | 250 |
| Outer Ø mm | 38 |
| Reference | ZP10-1-IMF22 |
| Series | BG3 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size | M22 x 1.50 |
| Thread type | Metric |
| Tube Series | 15L |
