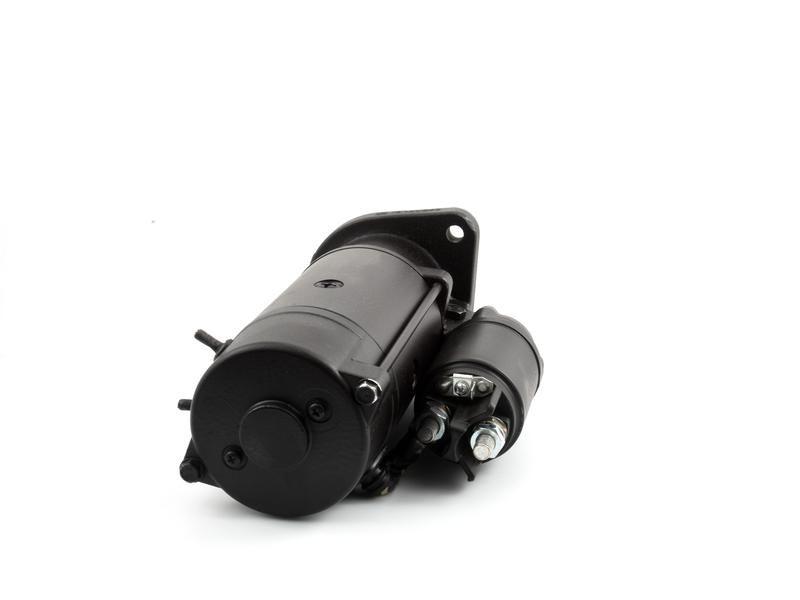

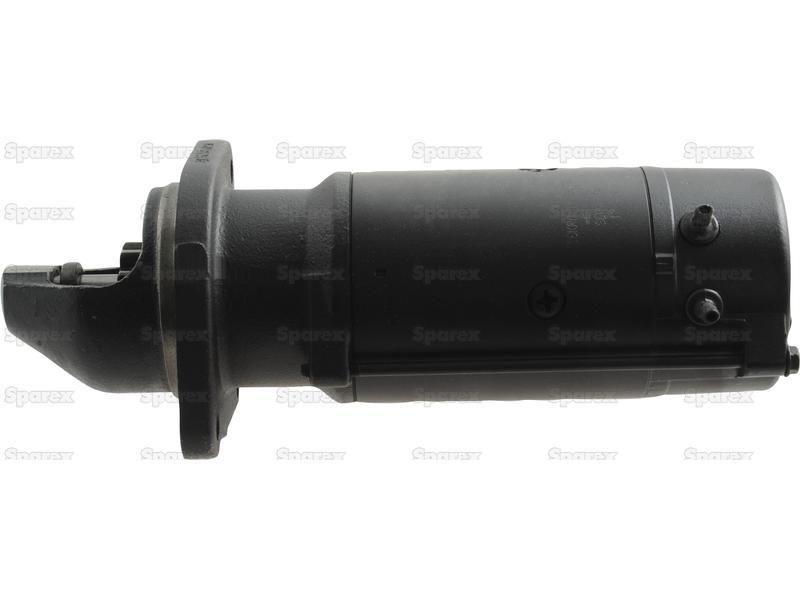

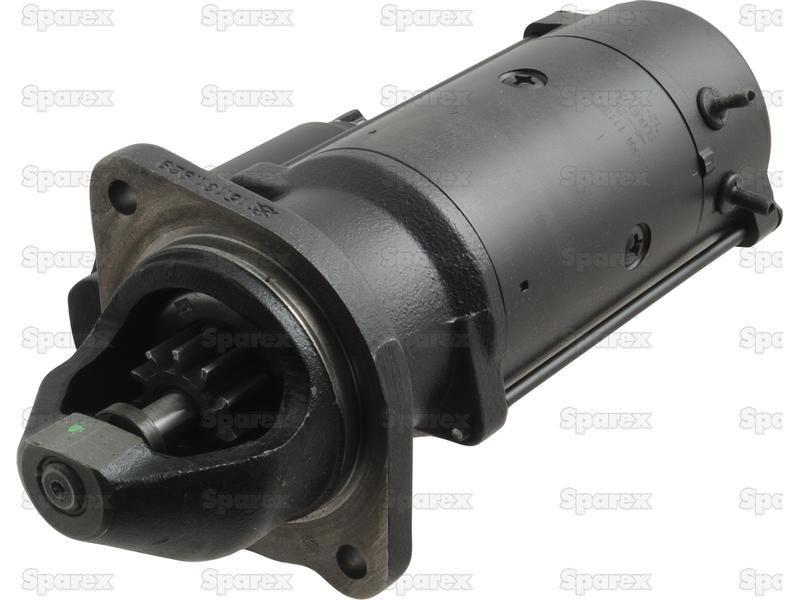

Starter Motor - 24V, 4Kw, Gear Reducted (Mahle) for Fendt
Part Number: S.39908Categories: Electrical Accessories
Part Number: S.39908
Grade: Replacement
Part Details
Starter Motor - 24V, 4Kw, Gear Reducted (Mahle)
Technical Information
| a Angle ° | -35 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 31 |
| D mm | 41 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 4 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 11 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 39952 |
| Tariff Code | 8511400090 |
| Volts | 24V |
| Width mm | 225.4 |
Models
| Fendt |
|---|
| XYLON 520, XYLON 522, XYLON 524 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001231007, 0001231019, 0001231030, 0986018990, 1231007, 1231019, 1231030, 1231119, 1368056, 1368310, 986017870, 986018990 |
| Fendt |
| F926900060041, F926900060100, F926900060130 |
| Iskra |
| IS0730 |
| Lester |
| 30105, 30124, 30126 |
| Lucas |
| LRS01943, LRS01970 |
| Valeo |
| 458335, 458843 |
