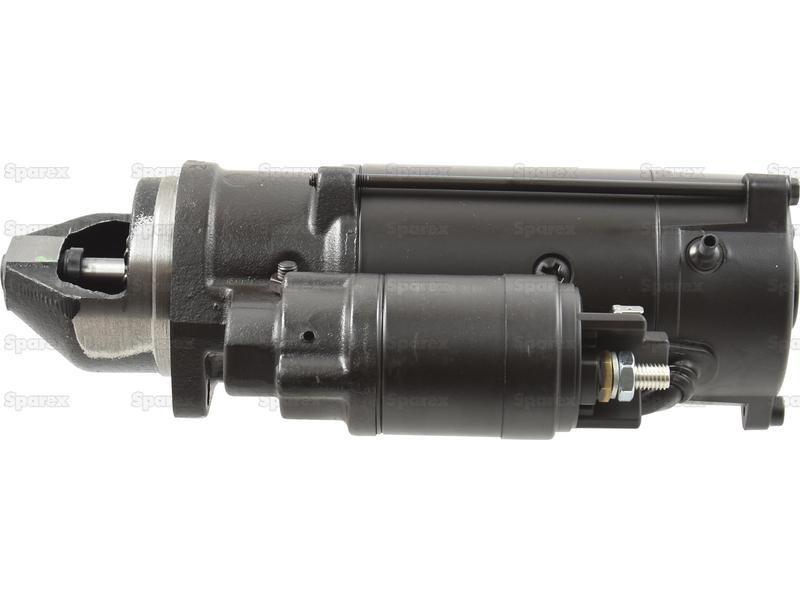

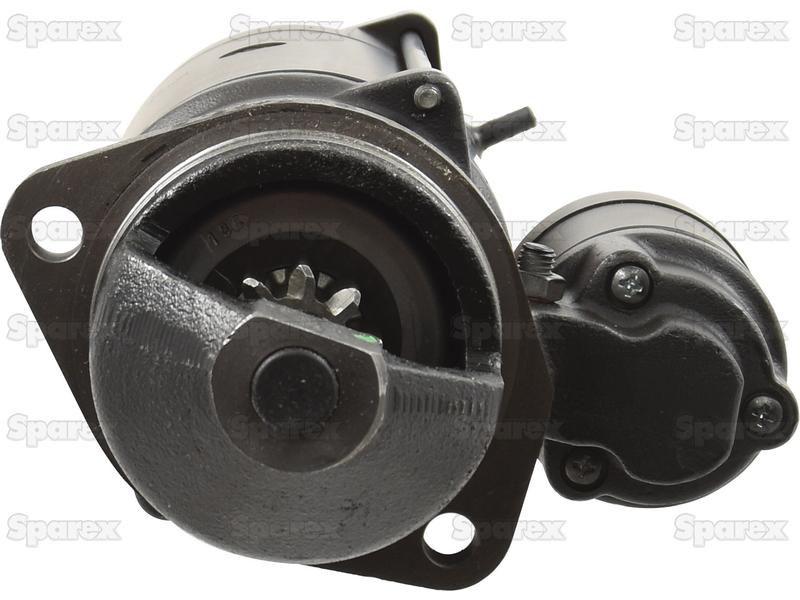

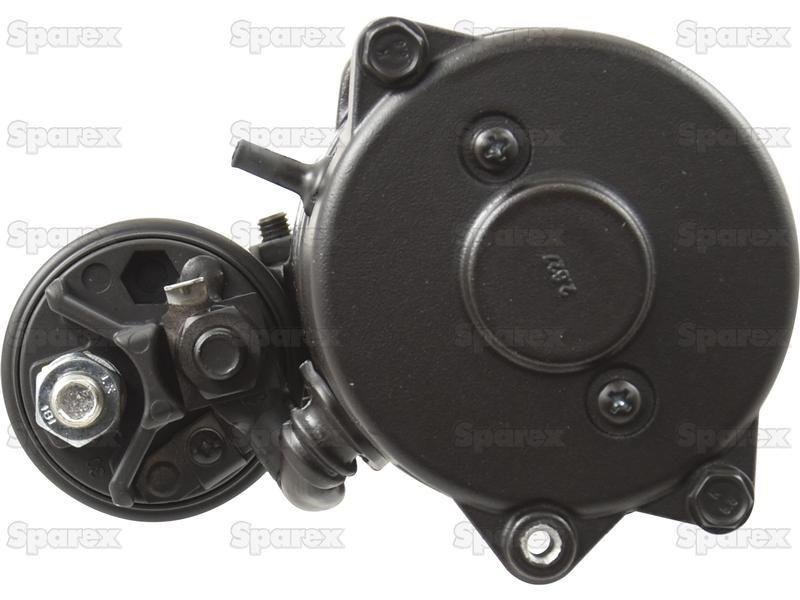

Starter Motor - 12V, 4Kw, Gear Reducted (Mahle) for Deutz-Fahr, Bosch, Iskra, Lucas
Part Number: S.137304Categories: Electrical Accessories
Part Number: S.137304
Grade: Replacement
Part Details
Starter Motor - 12V, 4Kw, Gear Reducted (Mahle)
Technical Information

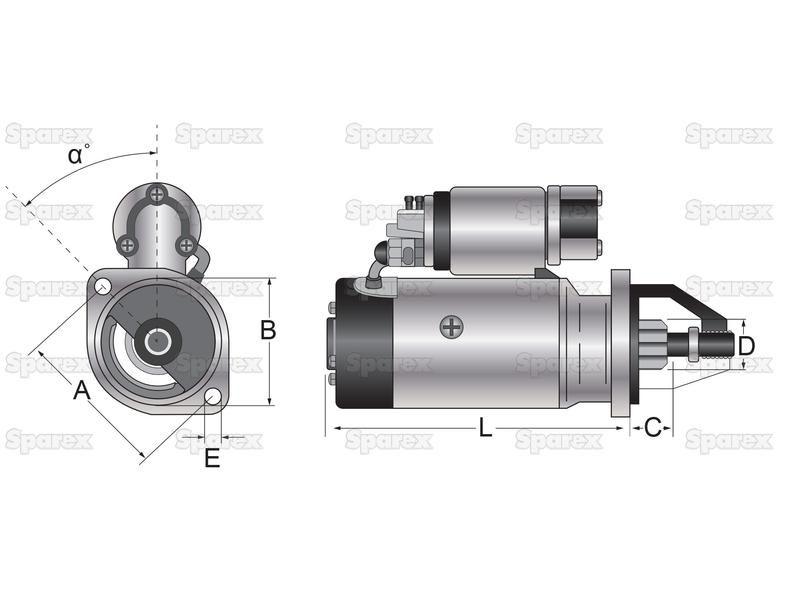

| a Angle ° | 40 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 26 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 4 |
| Length from Front Mounting Face to Rear mm | 250 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 2 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 219.1 |
Models
| Deutz-Fahr |
|---|
| F3L1011 (Motor Series) |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001230013, 1230013 |
| Deutz-Fahr |
| 01181570, 01182179, 01182388, 04300287 |
| Iskra |
| IS1237 |
| Lucas |
| LRS02559 |
