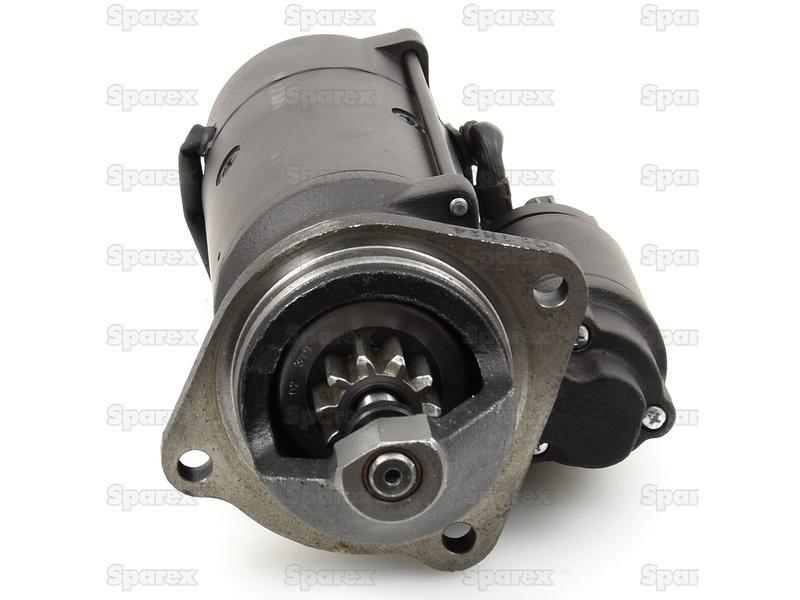

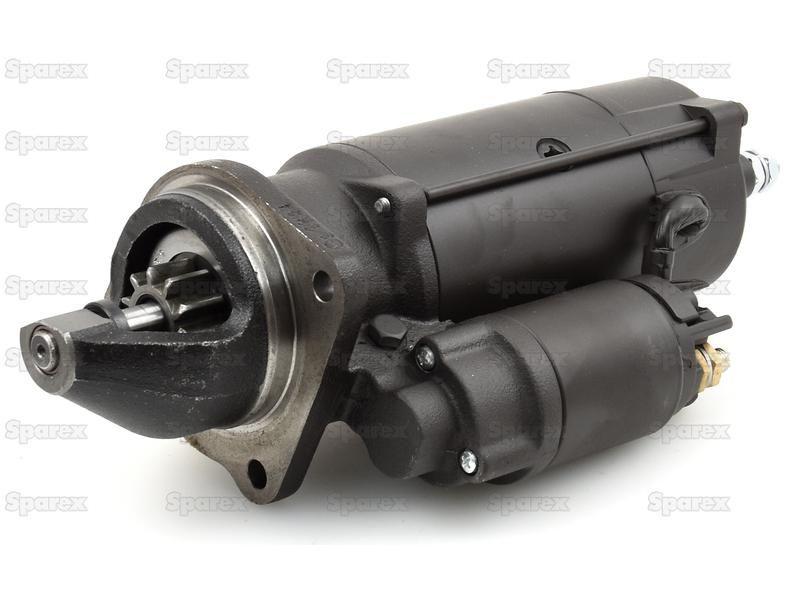

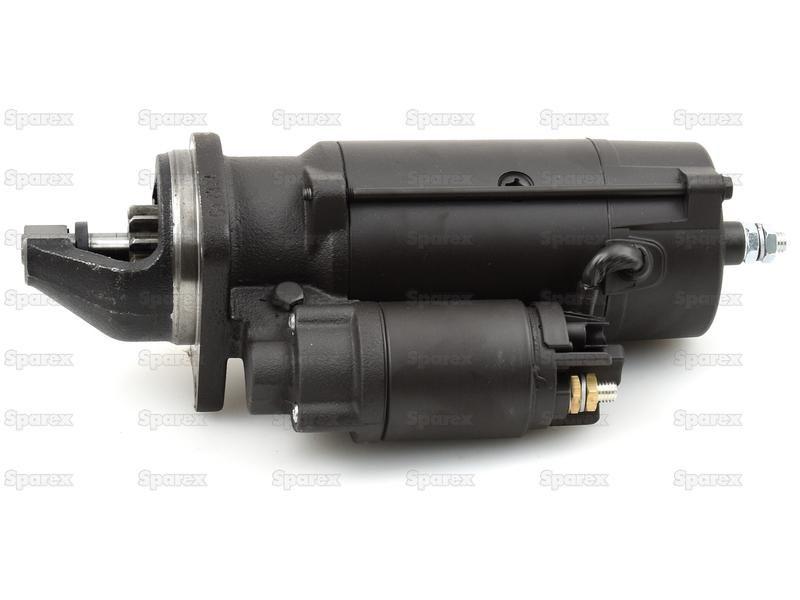

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for Massey Ferguson

Part Number: S.137297Categories: Electrical Accessories

Get a Quote

Part Number: S.137297

Grade: Replacement

Part Details

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)

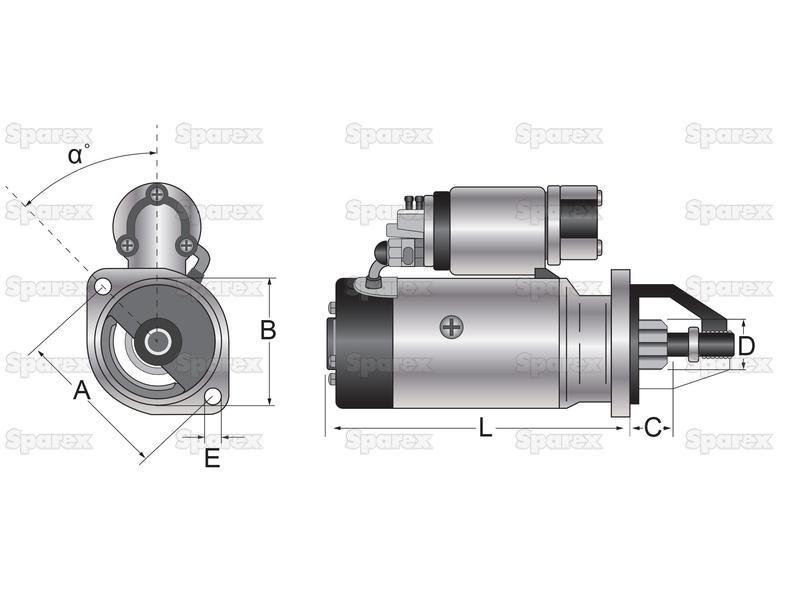

Technical Information

a Angle °	45
A mm	127
B mm	89
Bell Opening	LH
Brand	Mahle
C mm	32.5
D mm	39.6
Distance Between Teeth mm	15.4
E mm	10.9
Fitting	3 Hole Flange - LH Opening
Gear Reducted	Yes
Height mm	152.4
Kilowatts	4.2
Length from Front Mounting Face to Rear mm	240
Length mm	381
Mounting Hole mm	10.9
Number of Flange Holes	3
Number of Teeth	10
Outer Diameter of Battery Terminal mm	9.8
Related Products	38018
Tariff Code	8511400090
Volts	12V
Width mm	222.3

Models

Massey Ferguson

5460 (5400 Series), 5460SA, 5465 (5400 Series), 5470 (5400 Series), 5475, 5480 (5400 Series), 6460 (6400 Series), 6465 (6400 Series), 6470 (6400 Series), 6475 (6400 Series), 6480 (6400 Series), 6485 (6400 Series), 6490 (6400 Series), 6495 (6400 Series), 6497 (6400 Series), 6499 (6400 Series), 6612 DYNA 4, 6613 DYNA 4, 6613 DYNA 6, 6614 DYNA 6, 6614 DYNA VT, 6615 DYNA 4, 6615 DYNA 6, 6615 DYNA VT, 6616 DYNA 6, 6616 DYNA VT, 7465 (7400 Series), 7475 (7400 Series), 7480 (7400 Series), 7485 (7400 Series), 7485 DYNA VT/DYNA STEP, 7490 (7400 Series), 7495 (7400 Series), 7614 DYNA 4, 7615 DYNA 4, 7615 DYNA 6, 7615 DYNA VT/DYNA STEP, 7616 DYNA 6, 7616 DYNA VT/DYNA STEP, 7618 DYNA 6, 7618 DYNA VT/DYNA STEP, 7619 DYNA 6, 7619 DYNA VT, 7620 DYNA 6, 7620 DYNA VT, 7622 DYNA 6, 7622 DYNA VT, 7624 DYNA 6, 7624 DYNA VT, 7626 DYNA 6, 8240 (8200 Series), 8250 (8200 Series), 8260 (8200 Series), 8270 (8200 Series), 8280 (8200 Series)

Manufacturer Part Numbers

Iskra
IS1019
Massey Ferguson
1029405, 1072559, 3784889M2, 3784890M1, 3786094M93, 3786094M94, 382361M94, 3823621M91, 3823621M93, 3823621M95, 3823621M96, 836667507
Valmet & Valtra
V836667507
