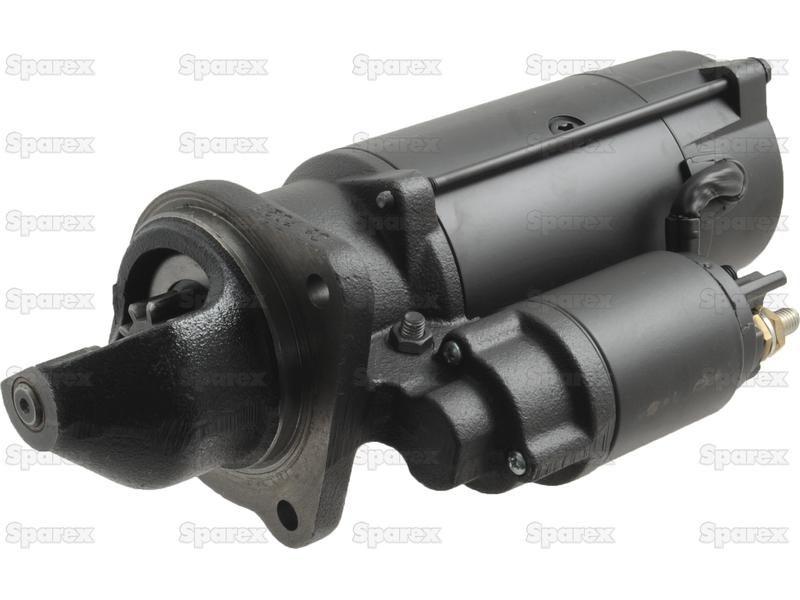

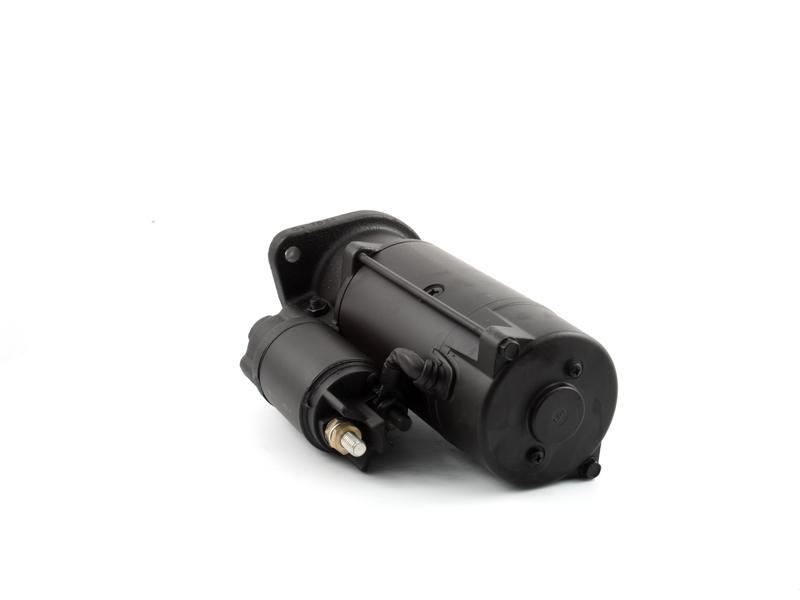

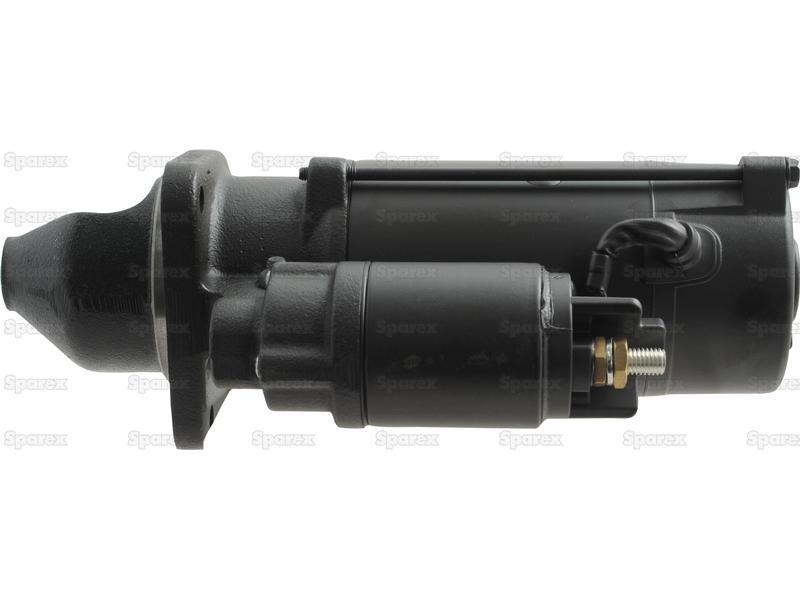

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for Case IH
Part Number: S.36220Categories: Electrical Accessories
Part Number: S.36220
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)

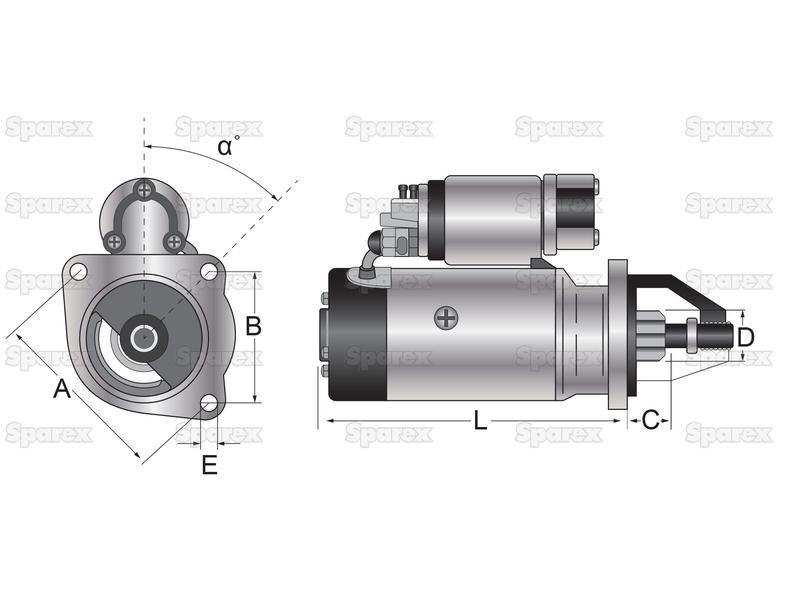

Technical Information
| a Angle ° | 45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 30 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 222 |
| Length mm | 387.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Models
| Case IH |
|---|
| FARMALL 105A, FARMALL 105U, FARMALL 115A, FARMALL 115U, FARMALL 65A, FARMALL 75A, FARMALL 85A, FARMALL 95A, FARMALL 95U, JX1070 (JX Series), JX1070U, JX1080U, JX1085C, JX1090U, JX1095C, JX1100U, JX90 (JX Series), JX95 (JX Series), JXU 105, JXU 115, JXU 75, JXU 85, JXU 95, QUANTUM 105F, QUANTUM 105N, QUANTUM 105V, QUANTUM 85C, QUANTUM 95C, QUANTUM 95F, QUANTUM 95N, QUANTUM 95V |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001230021, 0001262022, 1230020, 1230021, 1262020, 1262021, 1262022 |
| Carraro |
| 394677 |
| Case IH |
| 2852178, 2859528, 47137534, 47137538, 84208903 |
| Claas |
| 0011383370, 11383370 |
| Ford New Holland |
| 47132888, 47137534, 47137538, 47906044, 84151331, 84208903, 87337538 |
| Iskra |
| IS1109 |
| IVECO |
| 285217, 2859527, 323019050, 504031929, 504357109, 504357110, 50436476 |
| Lester |
| 19792, 19861 |
| Lucas |
| LRS02407 |
| Steyr |
| 47137534, 47137538, 84208903 |
