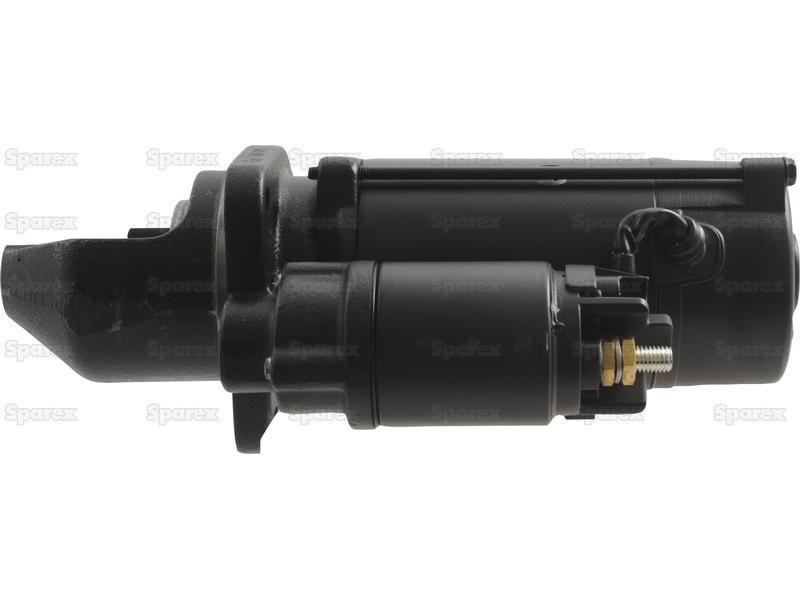

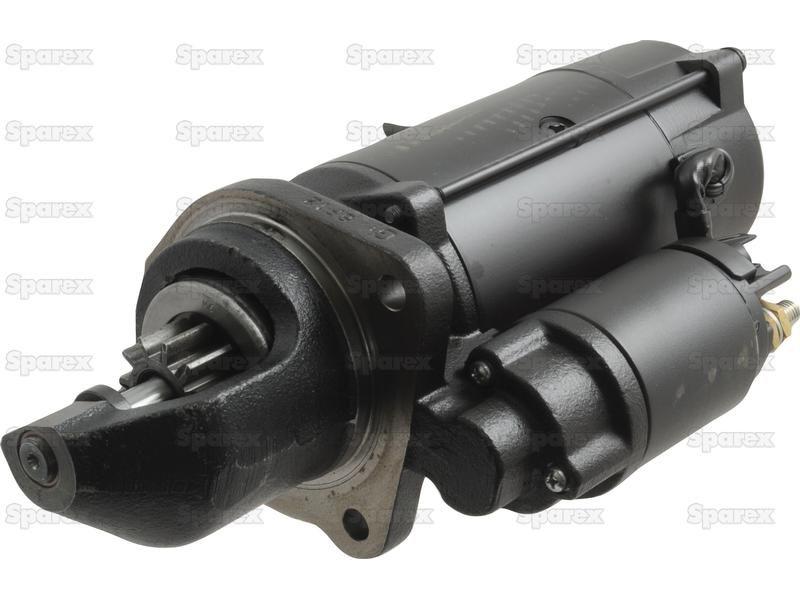

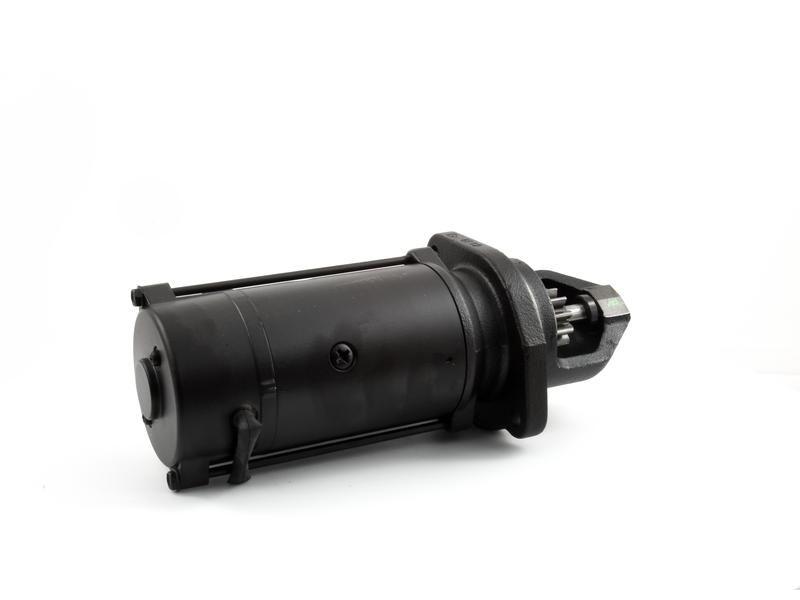

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for Steyr 9115
Part Number: S.36208Categories: Electrical Accessories
Part Number: S.36208
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)

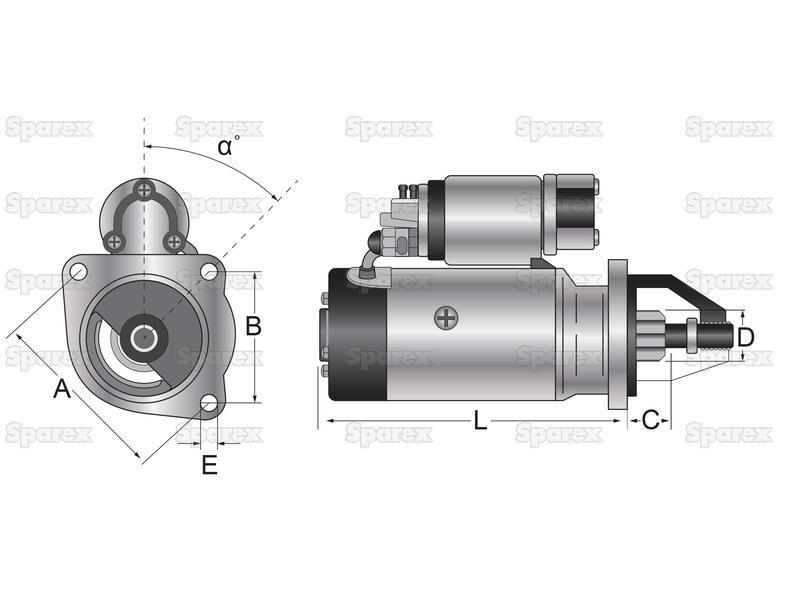

Technical Information
| a Angle ° | 45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 51 |
| D mm | 41 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 220 |
| Length mm | 304.8 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 11 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 219.1 |
Manufacturer Part Numbers
| AGCO |
|---|
| 569018D1, 836873088, 836873457, D45070088, V836866817, V836873457 |
| Bosch |
| 0001260025, 1260025, 1260026, 1359124, 1367032, 1367067, 986013690, 986013691 |
| Case IH |
| 132000090705, 132000090740, 142000090700, 162000090722, 47111575, 84284540 |
| Ford New Holland |
| 87693781, 87751000 |
| Iskra |
| is0836, IS0897 |
| Lester |
| 18480 |
| Lucas |
| 26284, 26342, LRS00147, LRS00926, LRS02361, LRS147 |
| Steyr |
| 162000090722 |
| Valmet & Valtra |
| 835331592, 836640940, 836640949, 836662073, 836673290, 836866817, 89732200 |
