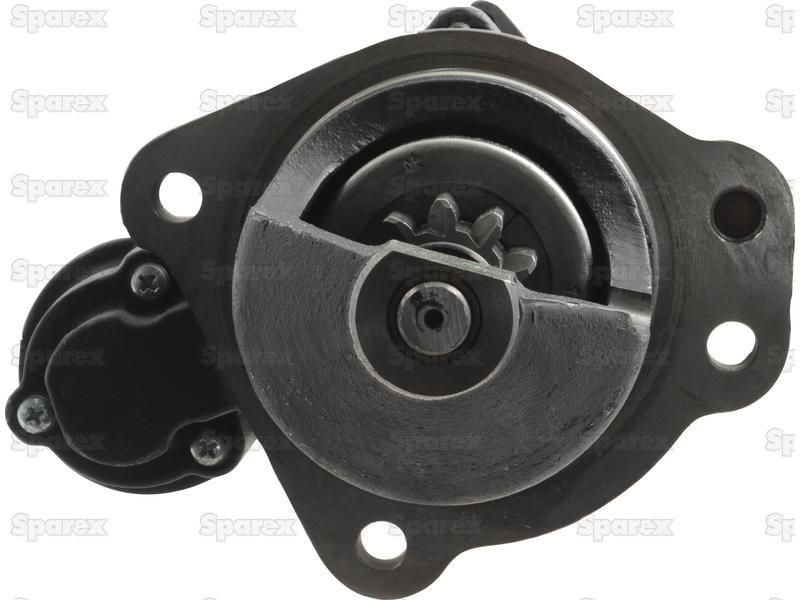

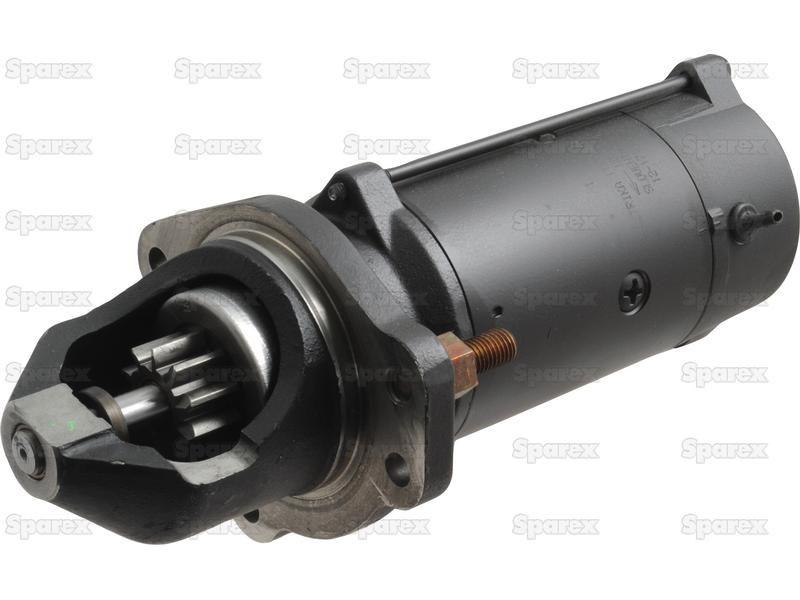

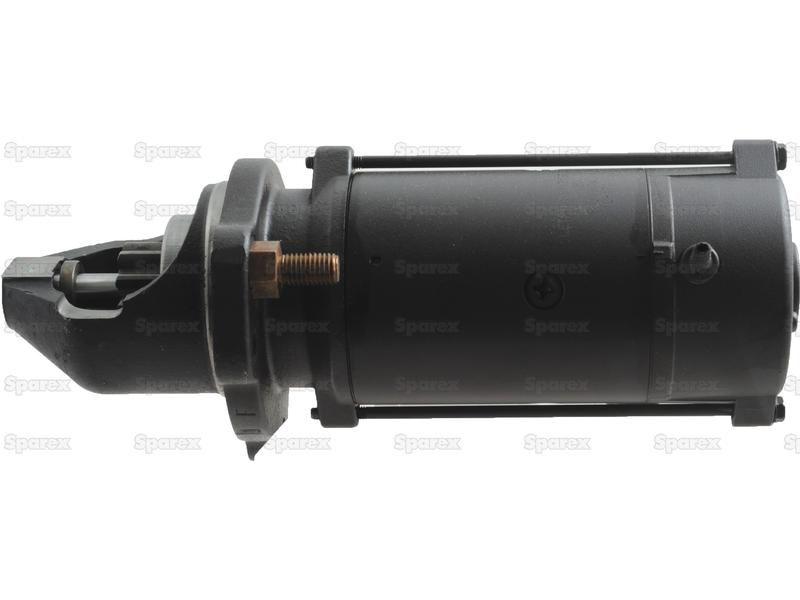

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for John Deere 6810 (6010 Series)
Part Number: S.70904Categories: Electrical Accessories
Part Number: S.70904
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)
Technical Information

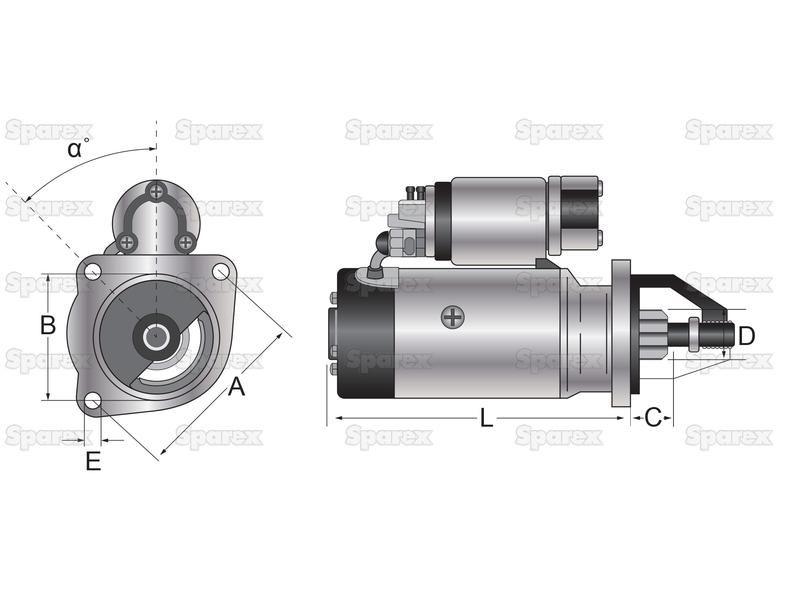

| a Angle ° | -55 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 51 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 225 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 38018 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 225.4 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001362324 |
| Iskra |
| 11.130.679, 11130679, IS1063 |
| John Deere |
| AL81154, RE501766, RE505744, RE507639 |
