Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for John Deere, Bosch, Iskra
Part Number: S.39909Categories: Electrical Accessories
Part Number: S.39909
Grade: Replacement
Part Details

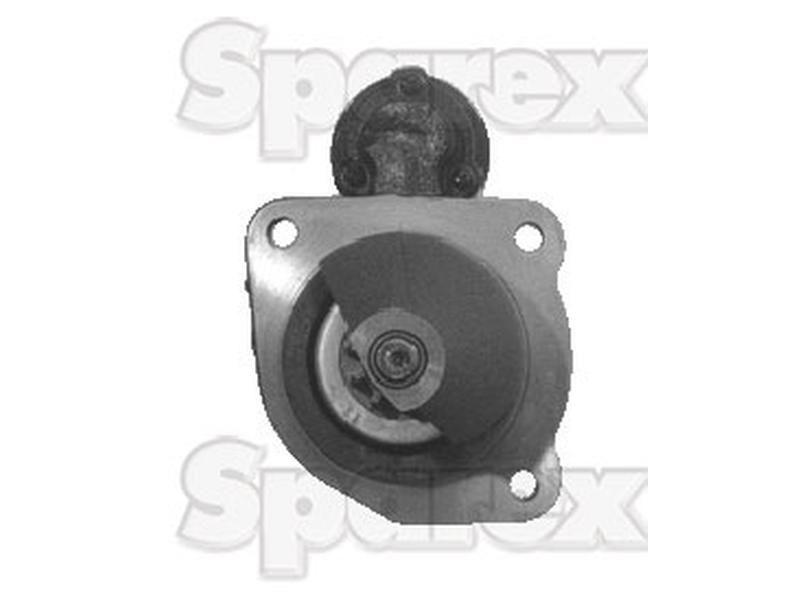

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)

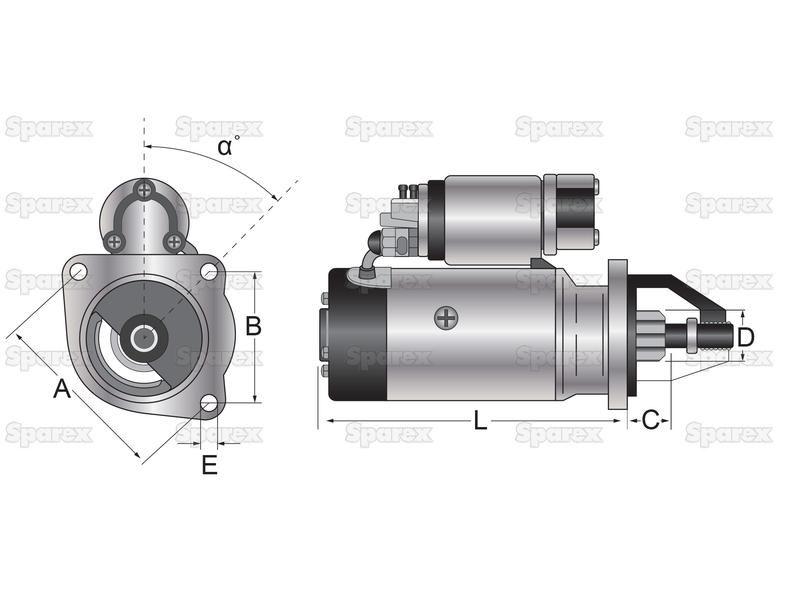

Technical Information
| a Angle ° | 45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 51 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 149.2 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 226 |
| Length mm | 311.2 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 38018, 38047 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Models
| John Deere |
|---|
| 1175, 1450CWS, 1550CWS, 3200 (Telescopic Handlers - 3000 Series), 3215 (Telescopic Handlers - 3000 Series), 3220 (Telescopic Handlers - 3000 Series), 3400 (Telescopic Handlers - 3000 Series), 3415 (Telescopic Handlers - 3000 Series), 3420 (Telescopic Handlers - 3000 Series), 3800 (Telescopic Handlers - 3000 Series), 6403 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001359029, 0001359058, 0001359114, 0001362302 |
| Iskra |
| IS1056 |
| John Deere |
| RE503093, RE503120, RE504009, RE509025, RE509856, RE523501, RE523502, RE59010, RE68783 |
