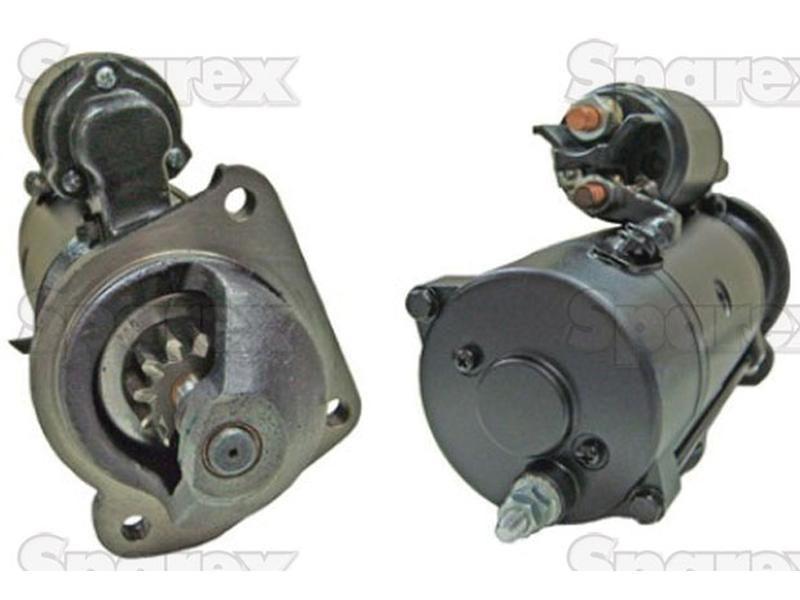

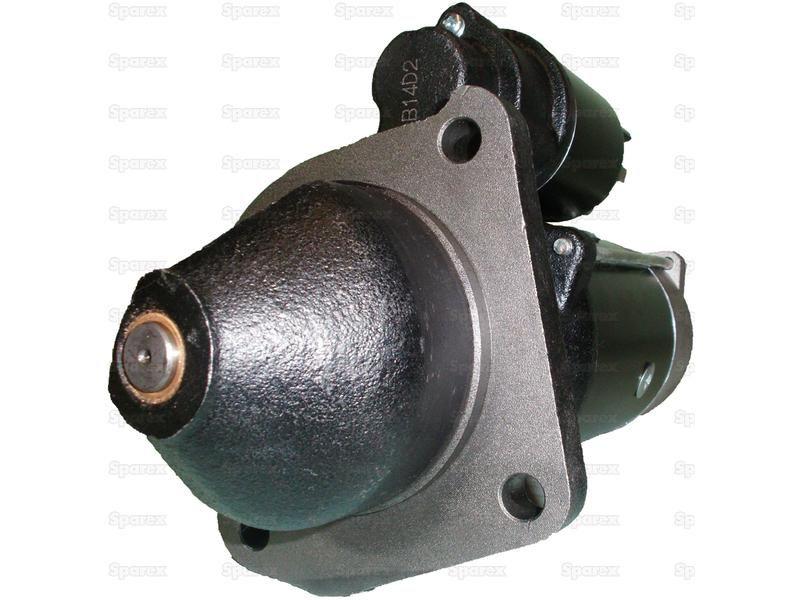

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for JCB 533-105
Part Number: S.68436Categories: Electrical Accessories



Part Number: S.68436
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)

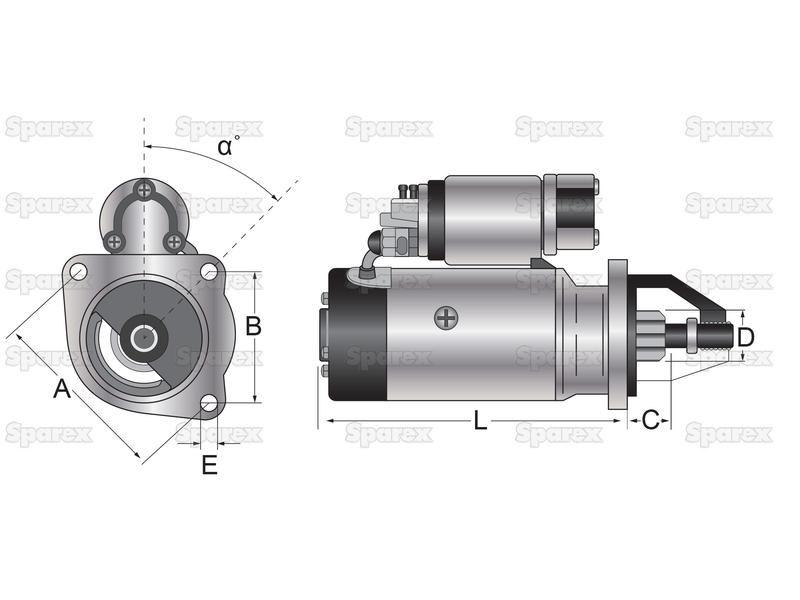

Technical Information
| a Angle ° | 119 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 24 |
| D mm | 41 |
| Distance Between Teeth mm | 15.5 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 278 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 11 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 225.4 |
Manufacturer Part Numbers
| Iskra |
|---|
| IS1105 |
| JCB |
| 320/09022, 320/09023, 320/09026, 320/09032, 320/09035, 320/09144, 320/09346, 320/09409, 320/09452, 320/09454 |
