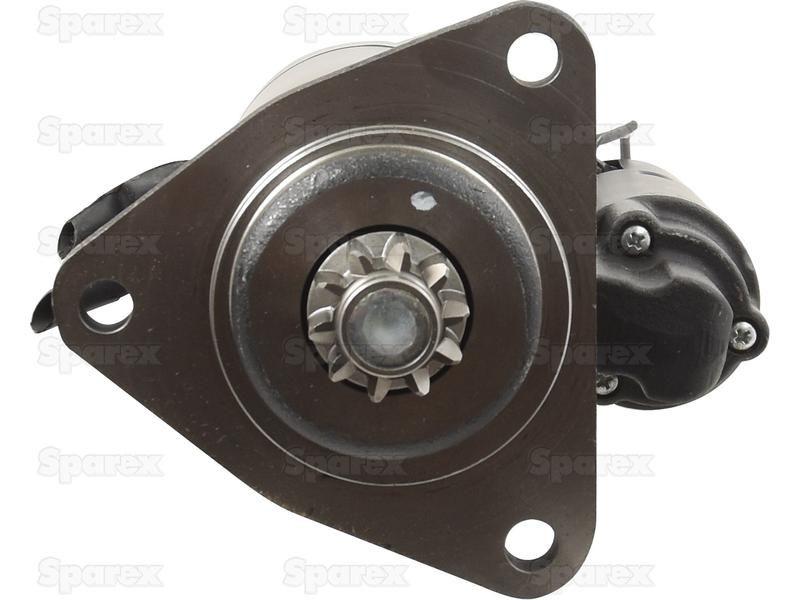

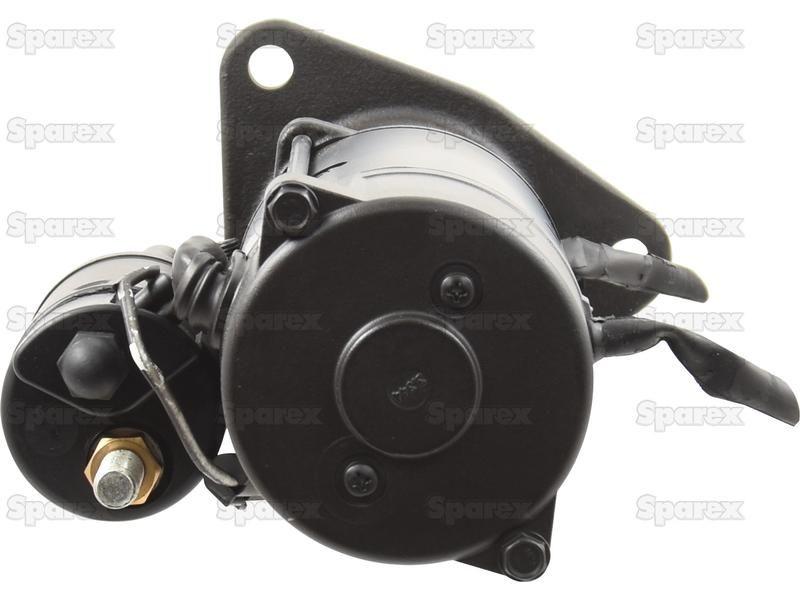

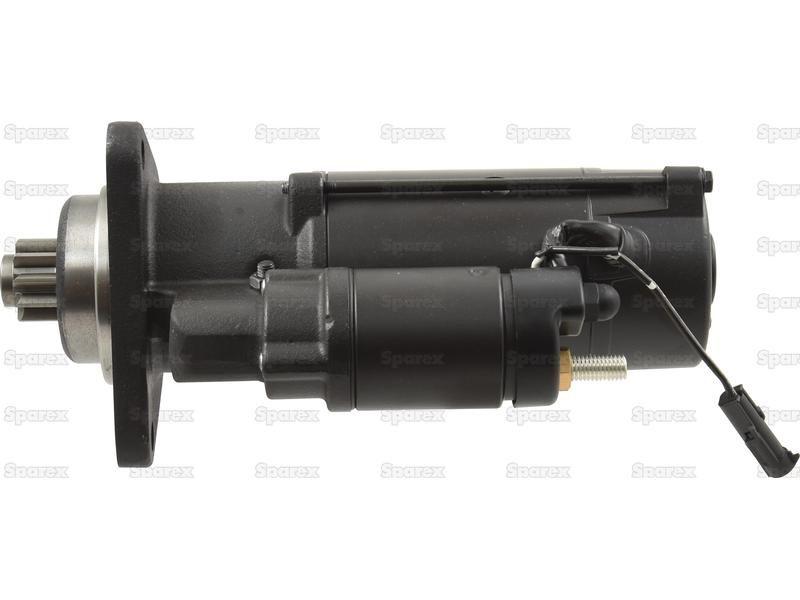

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for Case IH
Part Number: S.137300Categories: Electrical Accessories
Part Number: S.137300
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)
Technical Information

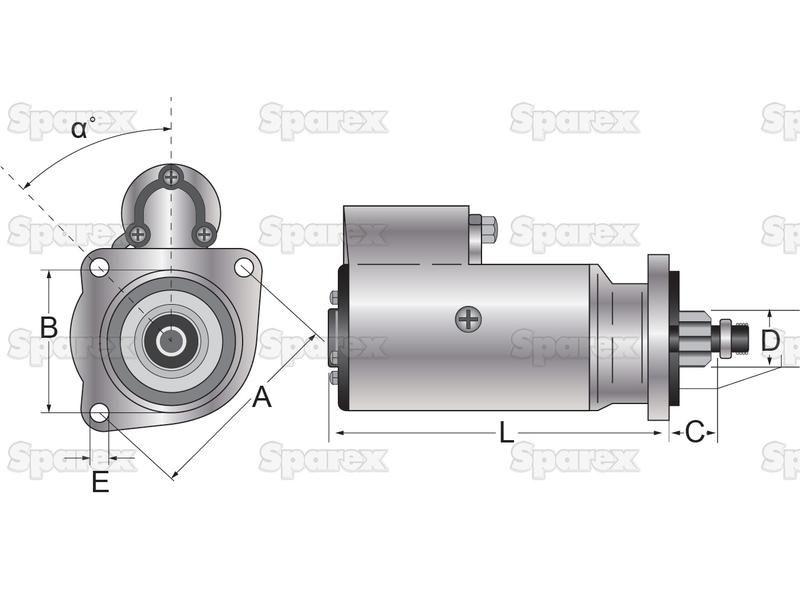

| a Angle ° | 48 |
| A mm | 146 |
| B mm | 92 |
| Bell Opening | N/A |
| Brand | Mahle |
| C mm | 51 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 13.5 |
| Fitting | 3 Hole Flange |
| Gear Reducted | Yes |
| Height mm | 158.8 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 270 |
| Length mm | 457.2 |
| Mounting Hole mm | 13.5 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 209.55 |
Models
| Case IH |
|---|
| MAGNUM 225, MAGNUM 250, MAGNUM 255, MAGNUM 280, MAGNUM 310, MAGNUM 335, MX215 |
Manufacturer Part Numbers
| Case IH |
|---|
| 84213446, 87425232, 87499205 |
| Ford New Holland |
| 84213446 |
| Iskra |
| IS1114 |
