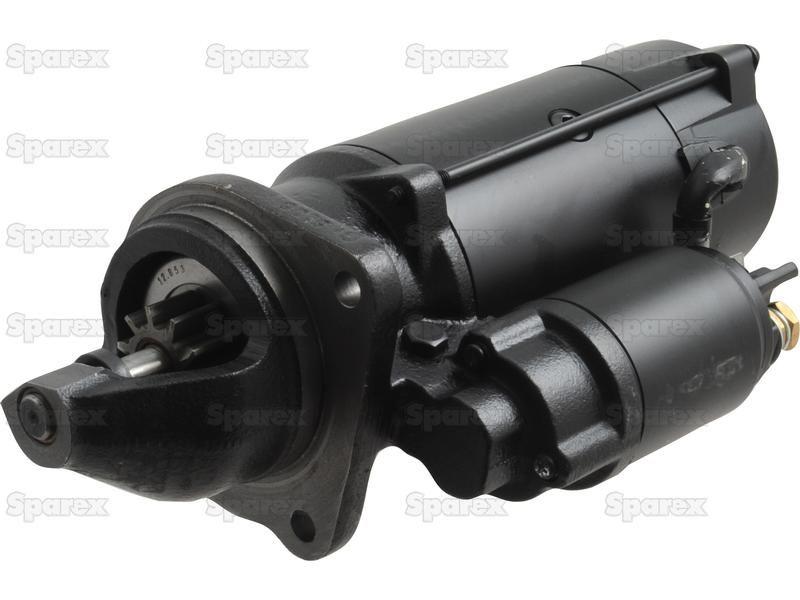

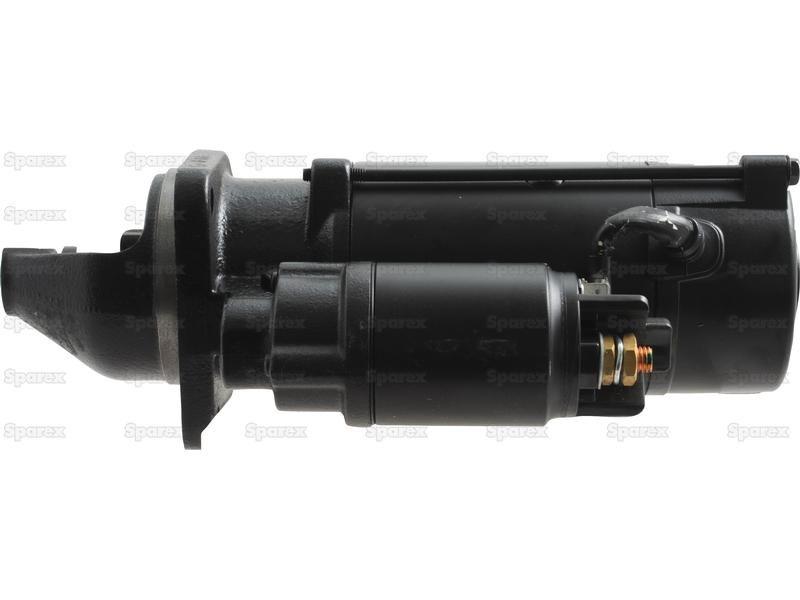

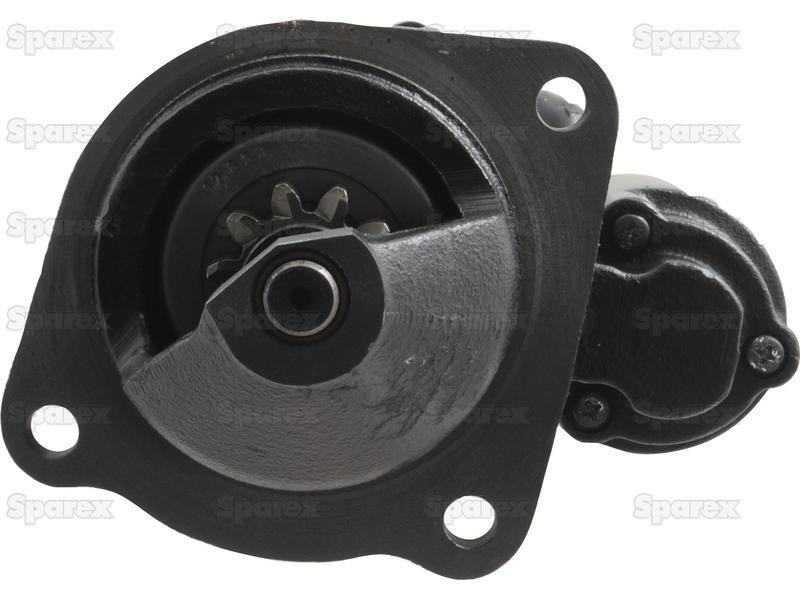

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for Perkins A4.236 (4.236 Series)
Part Number: S.127861Categories: Electrical Accessories
Part Number: S.127861
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)
Technical Information

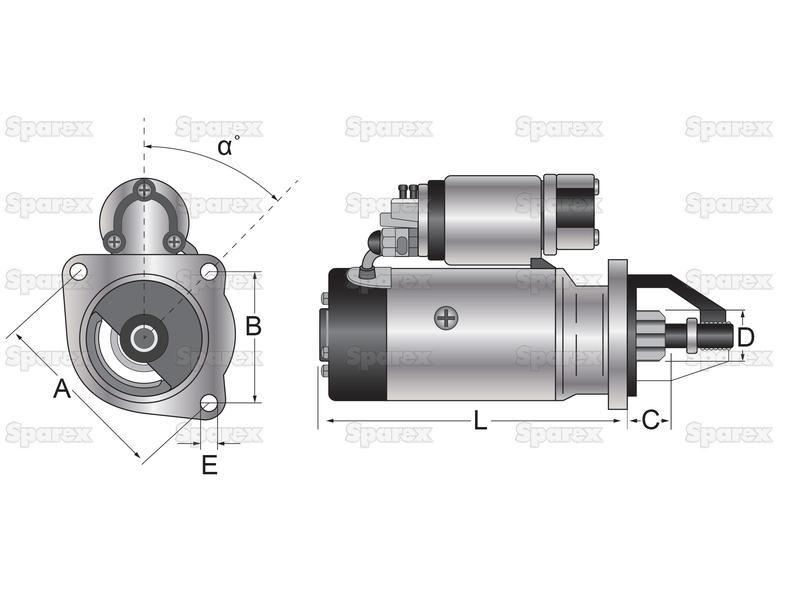

| a Angle ° | 45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 149.2 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 387.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 150754 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| Bosch |
|---|
| 986018151 |
| Case IH |
| 388187A1, 6106496M92, 73326810 |
| HELLA LTD |
| 8EA730209-001, 8EA730219-001, CS693, CS703 |
| Iskra |
| IS1160 |
| JCB |
| 714/29300R |
| Landini |
| 3551773M91, 3648190M91 |
| Lester |
| 17649 |
| Lucas |
| 27518, 27520, 27570, 27588, LRS00124, LRS00161, LRS00195, LRS00968, NSB524, NSB529 |
| Magnetimar |
| 54293284, 63227478, 63227486, 63227518, 63227520, 63227585, 63227588, 63227596, 63296357, 943226294, 943226329, 943226348, 943226357, 943226366, 943227502, 943227518, 943227520, 943227524, 943227570, 943227572, 943252075, 943252076, MSN180, MSN191 |
| Massey Ferguson |
| 3648190M91, 3667040M91, 3777247M1, 3823621M91, 3823621M93, 3823621M94, 3823621M95, 3823621M96 |
| McCormick |
| 388187A1, 6106496M92 |
| Perkins |
| 1446802M91, 1447732M1, 1447732R1, 2873001, 2873A030, 2873A102, 2873B056, 2873B071, 3581576M1, 3581576R1 |
