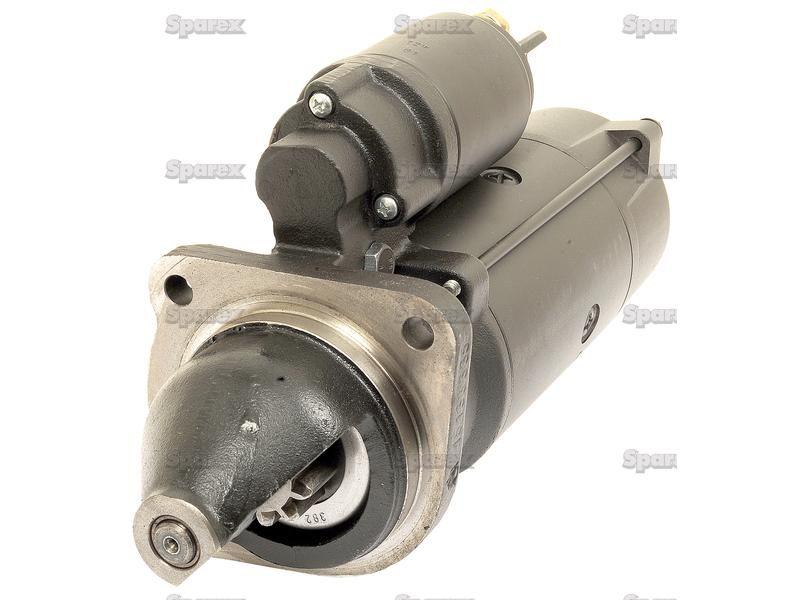

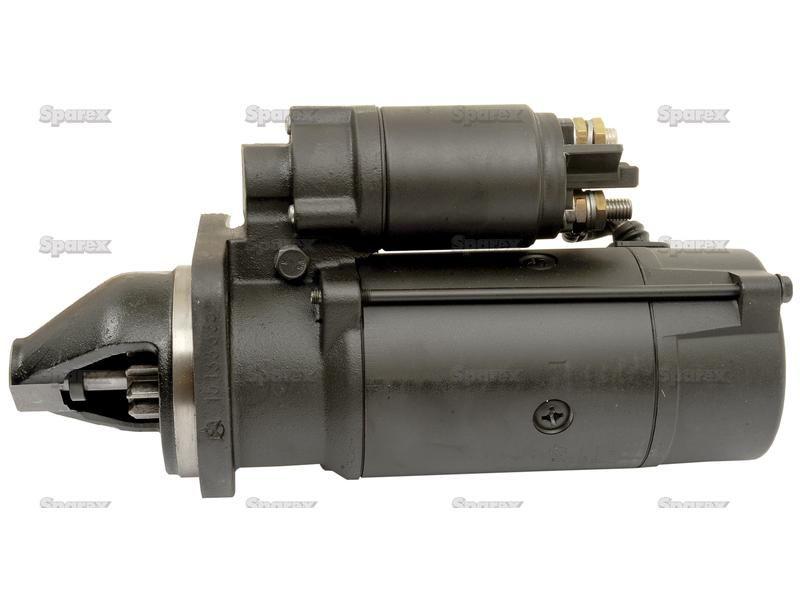

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for JCB 540-170
Part Number: S.36199Categories: Electrical Accessories
Part Number: S.36199
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)

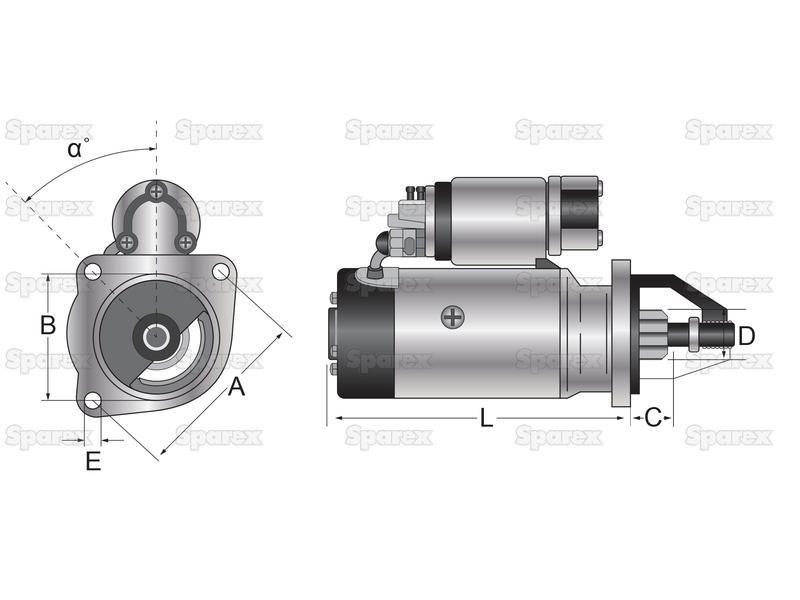

Technical Information
| a Angle ° | -40 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 250 |
| Length mm | 387.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 228.6 |
Manufacturer Part Numbers
| AGCO |
|---|
| 067916T1, 2834390M91, 3786310M1, 3788259M93, 3788259M94, 6306847M91 |
| Iskra |
| IS1023, IS1159 |
| JCB |
| 714/40159 |
| Massey Ferguson |
| 3821818M91, 3821818M93, 3821818M94 |
| McCormick |
| 700336A1 |
