Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for Case IH
Part Number: S.36209Categories: Electrical Accessories
Part Number: S.36209
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)

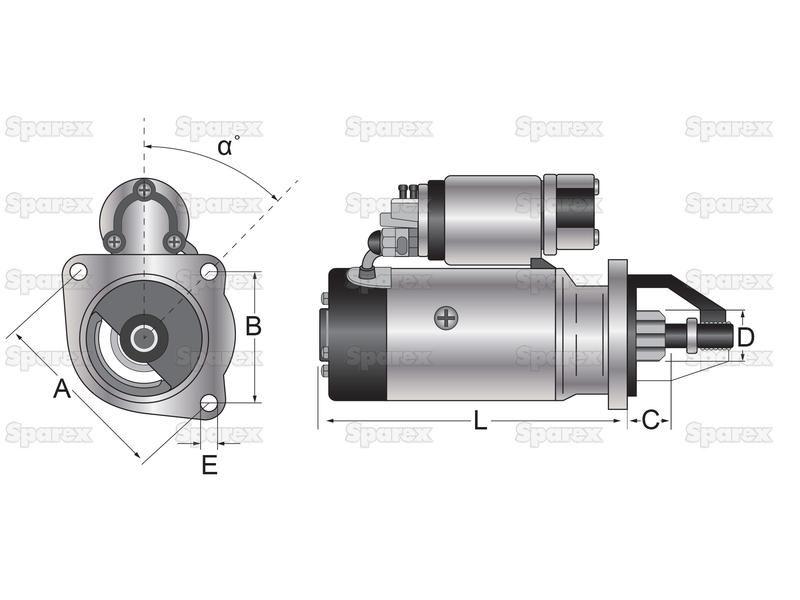

Technical Information
| a Angle ° | 48 |
| A mm | 146 |
| B mm | 92 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 51 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 13.5 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 146.1 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 225 |
| Length mm | 387.4 |
| Mounting Hole mm | 13.5 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Models
| Case IH |
|---|
| 7110 (Magnum Series), 7120 (Magnum Series), 7130 (Magnum Series), 7140 (Magnum Series), 7150 (Magnum Series), 7210 (Magnum Series), 7220 (Magnum Series), 7230 (Magnum Series), 7240 (Magnum Series), 7250 (Magnum Series) |
Manufacturer Part Numbers
| Case IH |
|---|
| 91902C1, 91902C2, A162469, A187728, AR187728 |
| Iskra |
| IS1089 |
| Lester |
| 17353, 17634 |
