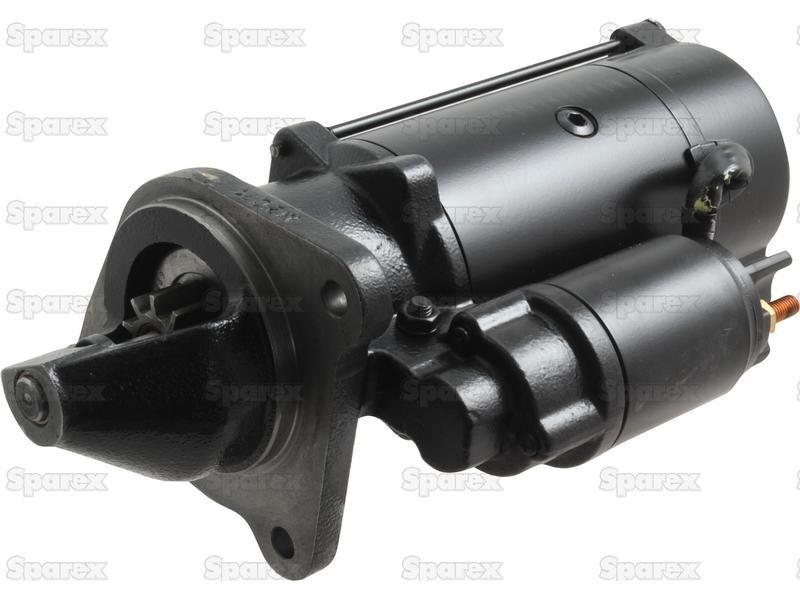

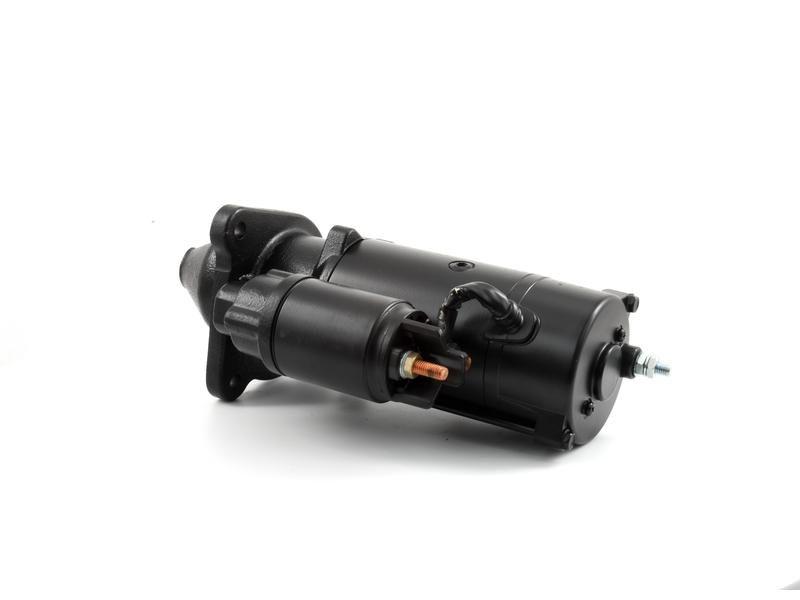

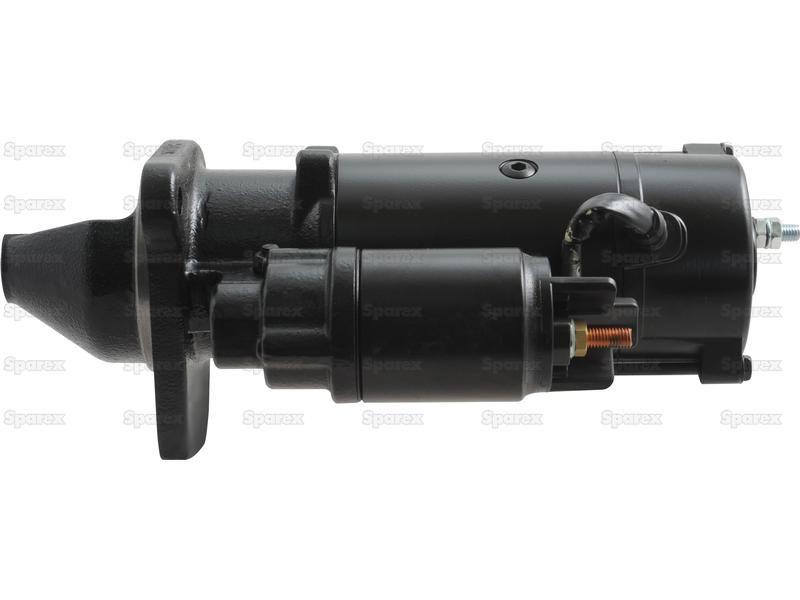

Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle) for Ford New Holland 7710 (10 Series)
Part Number: S.127863Categories: Electrical Accessories
Part Number: S.127863
Grade: Replacement
Part Details
Starter Motor - 12V, 4.2Kw, Gear Reducted (Mahle)
Technical Information

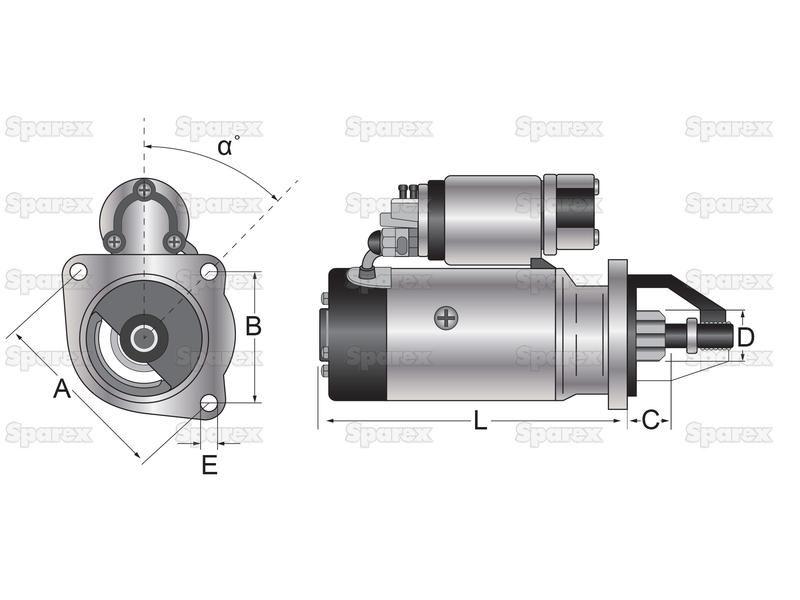

| a Angle ° | 52 |
| A mm | 146 |
| B mm | 92 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 24 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 4.2 |
| Length from Front Mounting Face to Rear mm | 280 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 219.1 |
Manufacturer Part Numbers
| Case IH |
|---|
| 87304276 |
| Fiat |
| 87304276 |
| Ford New Holland |
| 87304276 |
| Iskra |
| IS1158 |
| Lucas |
| 26147, 26189, 26364, LRS00230, LRS01637 |
