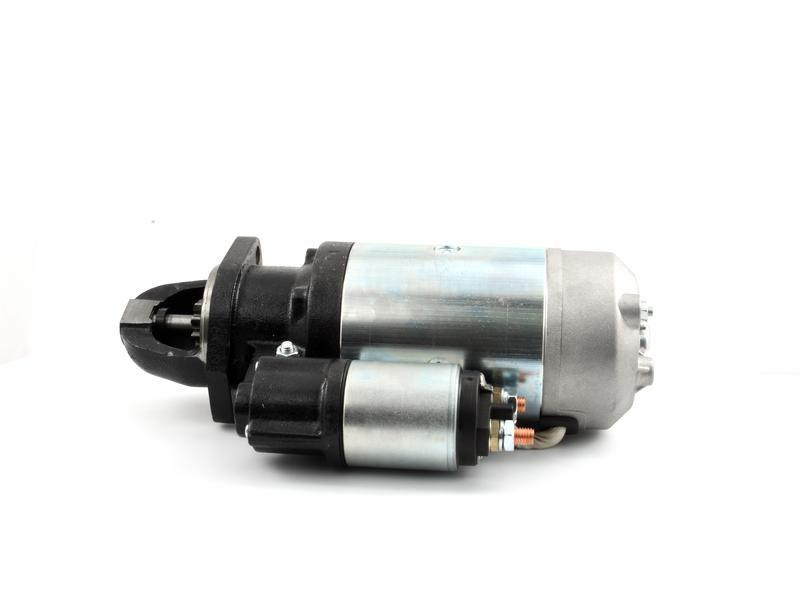

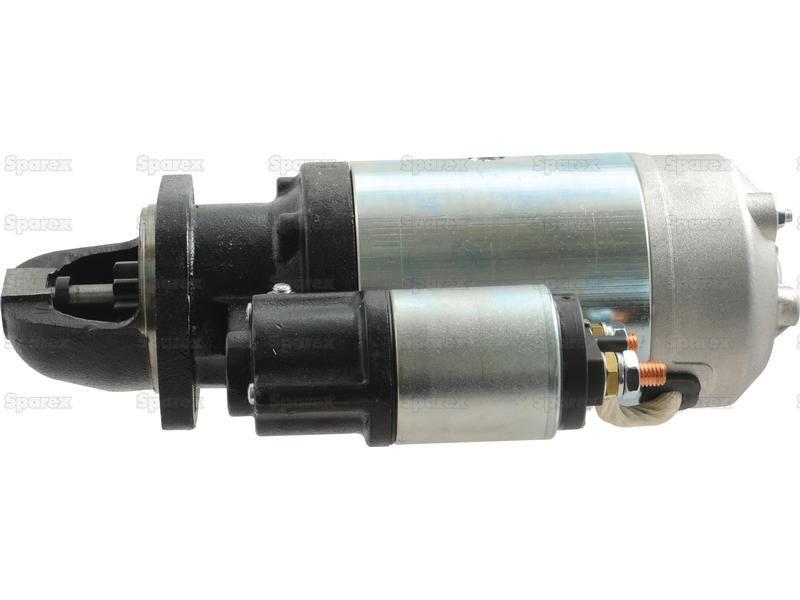

Starter Motor - 12V, 3Kw (Mahle) for Steyr 8060 (Various Series)
Part Number: S.36106Categories: Electrical Accessories
Part Number: S.36106
Grade: Replacement
Part Details
Starter Motor - 12V, 3Kw (Mahle)
Technical Information

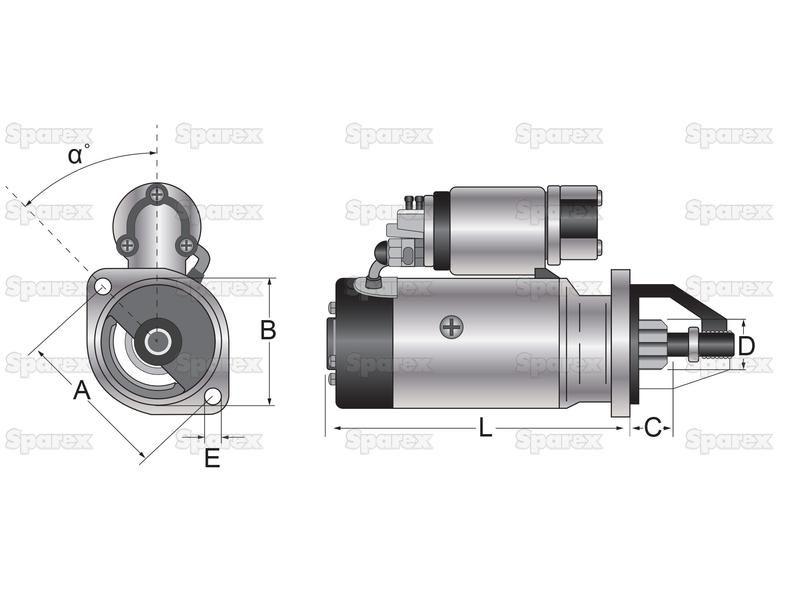

| A (mm) | 105 |
| Mounting Hole mm | 12.5 |
| E (mm) | 12.5 |
| Volts | 12V |
| Distance Between Teeth mm | 14.4 |
| Height (mm) | 149.2 |
| Number of Flange Holes | 2 |
| Fitting | 2 Hole Flange - LH Opening |
| C (mm) | 24 |
| Length from Front Mounting Face to Rear mm | 270 |
| Kilowatts | 3 |
| D (mm) | 34.8 |
| a Angle ° | 35 |
| Length (mm) | 381 |
| Related products | 39954,39963 |
| B (mm) | 82.5 |
| Tariff Code | 8511400090 |
| Number of Teeth: | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Bell Opening | LH |
| Brand | Mahle |
| Gear Reducted | No |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060150 |
| Bosch |
| 0001362309, 0001367011, 1362309, 1367011 |
| Case IH |
| 131100090017, 141100090015, 141100090733, 141100090902 |
| Iskra |
| IS0671 |
| Lester |
| 32320, 32321 |
