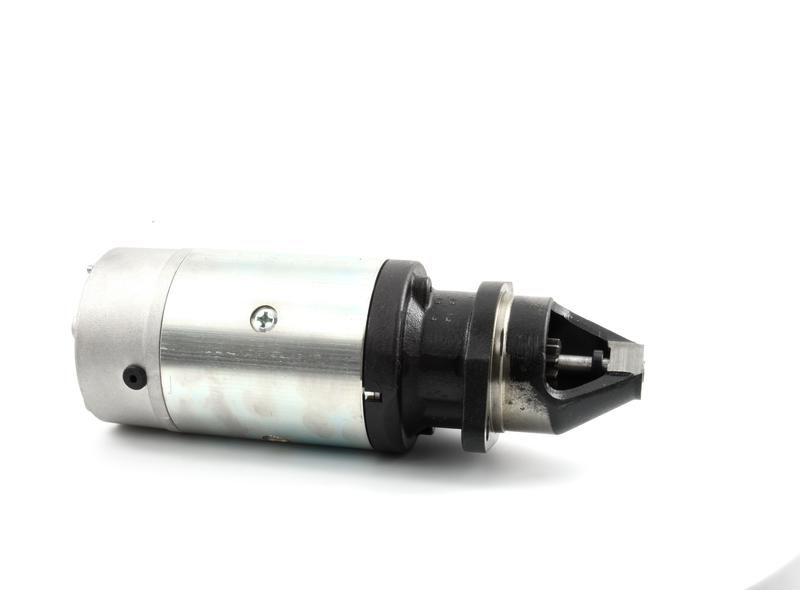

Starter Motor - 12V, 3Kw (Mahle) for John Deere 3030 (30 Series)
Part Number: S.359750Categories: Electrical Accessories





Part Number: S.359750
Grade: Replacement
Part Details
Starter Motor - 12V, 3Kw (Mahle)
Technical Information

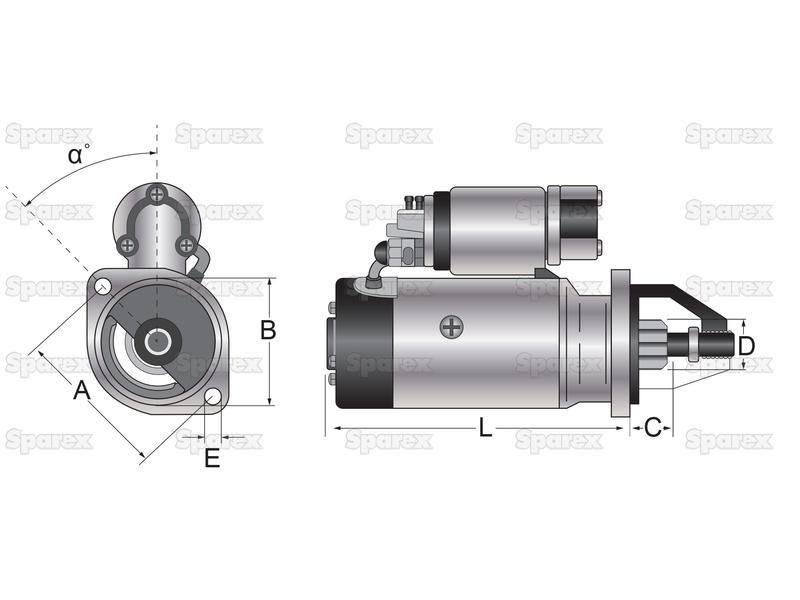

| a Angle ° | -45 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 38 |
| D mm | 32 |
| Distance Between Teeth mm | 12.3 |
| E mm | 13.5 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | No |
| Height mm | 152.4 |
| Kilowatts | 3 |
| Length from Front Mounting Face to Rear mm | 237 |
| Length mm | 381 |
| Mounting Hole mm | 13.5 |
| Number of Flange Holes | 2 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 39951, 39960 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 219.1 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060100 |
| Bosch |
| 0001359016, 0001359090, 0001362312, 0001362316, 0001367037, 0001369001, 0986012420, 0986014730, 1359016, 1359090, 1367037, 986012420 |
| Claas |
| 6005706631 |
| Iskra |
| IS0534 |
| John Deere |
| AL110597, AL62690, AL67897, AL70850, AR70436, AT23401, TY6720 |
| Lester |
| 16563, 17095, 3579 |
| Lucas |
| LRS00565, LRS565 |
