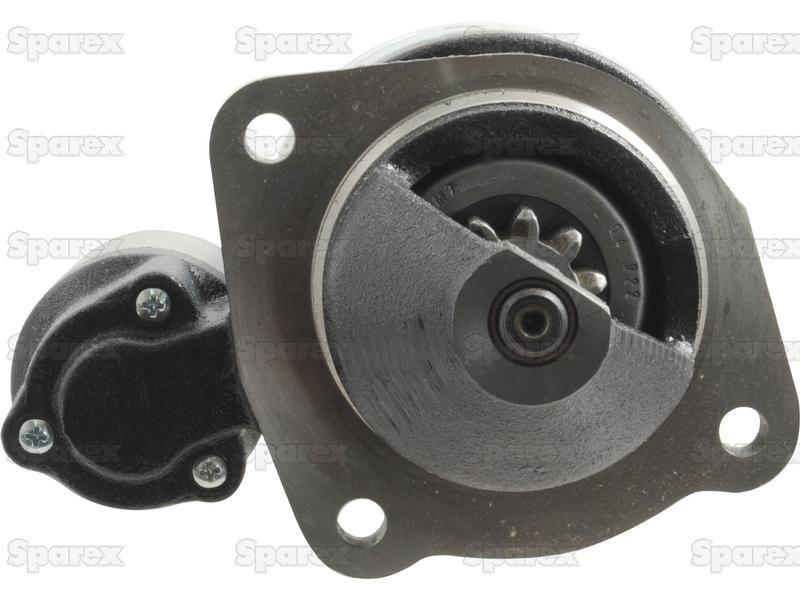

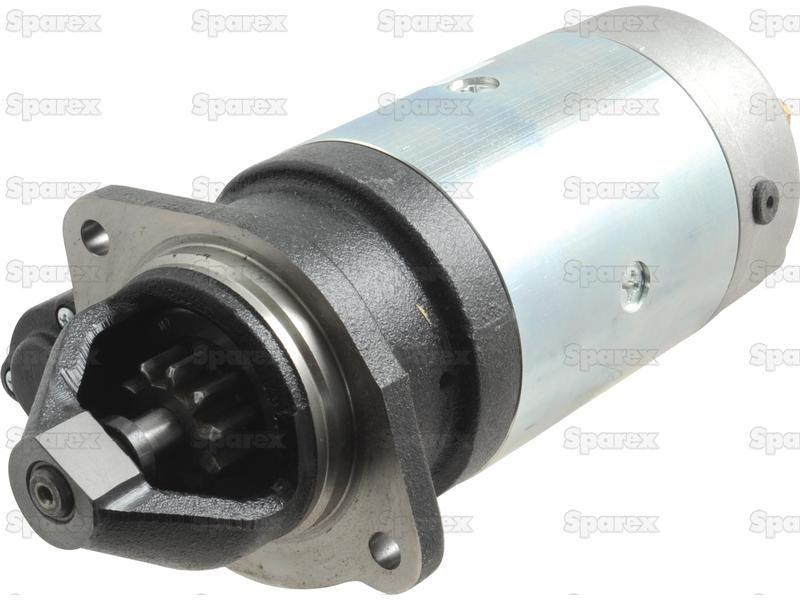

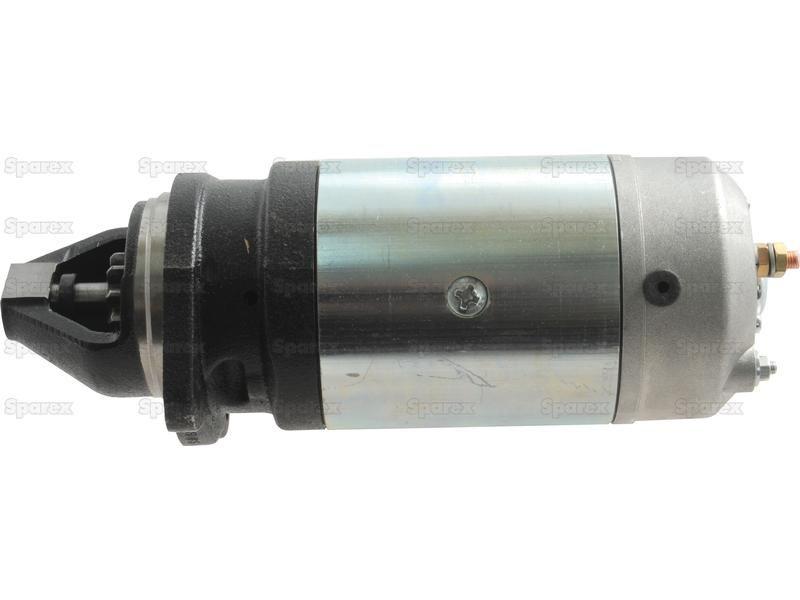

Starter Motor - 12V, 3Kw (Mahle) for Massey Ferguson 575 (500 Series)
Part Number: S.36189Categories: Electrical Accessories
Part Number: S.36189
Grade: Replacement
Part Details
Starter Motor - 12V, 3Kw (Mahle)
Technical Information

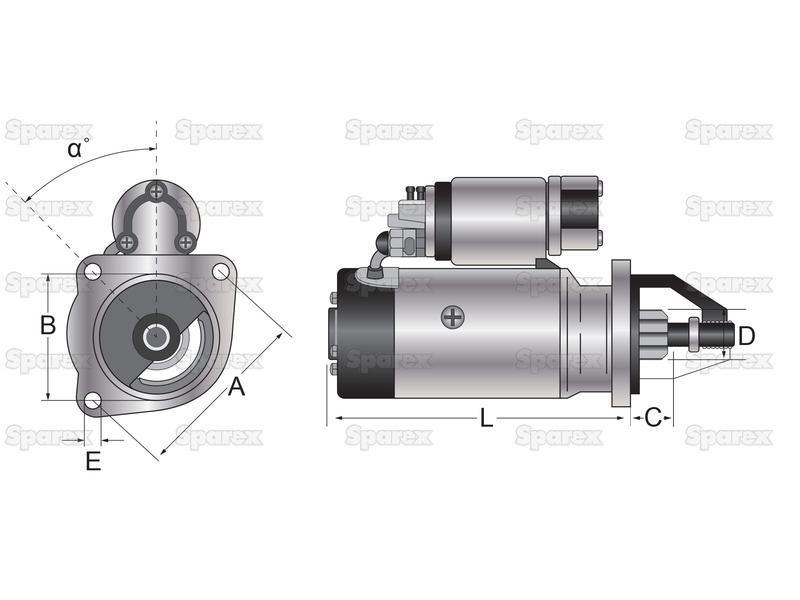

| a Angle ° | -40 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | No |
| Height mm | 152.4 |
| Kilowatts | 3 |
| Length from Front Mounting Face to Rear mm | 238 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 225.4 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060220 |
| Case IH |
| 234987A1, 323319A1, 388187A1, 388187A2, 395377A1, 395378A1, 73326810 |
| Iskra |
| IS0807 |
| Landini |
| 388187A1, 388187A2, 388187A3 |
| Lester |
| 18482 |
| Massey Ferguson |
| 6106496M92 |
