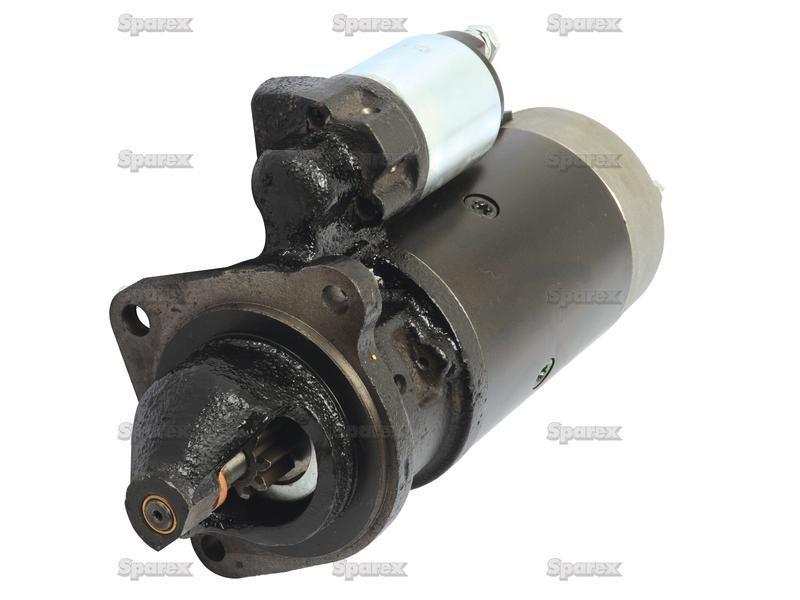

Starter Motor - 12V, 3Kw (Mahle) for Fiat L85 (L Series)
Part Number: S.35971Categories: Electrical Accessories
Part Number: S.35971
Grade: Replacement
Part Details
Starter Motor - 12V, 3Kw (Mahle)
Technical Information

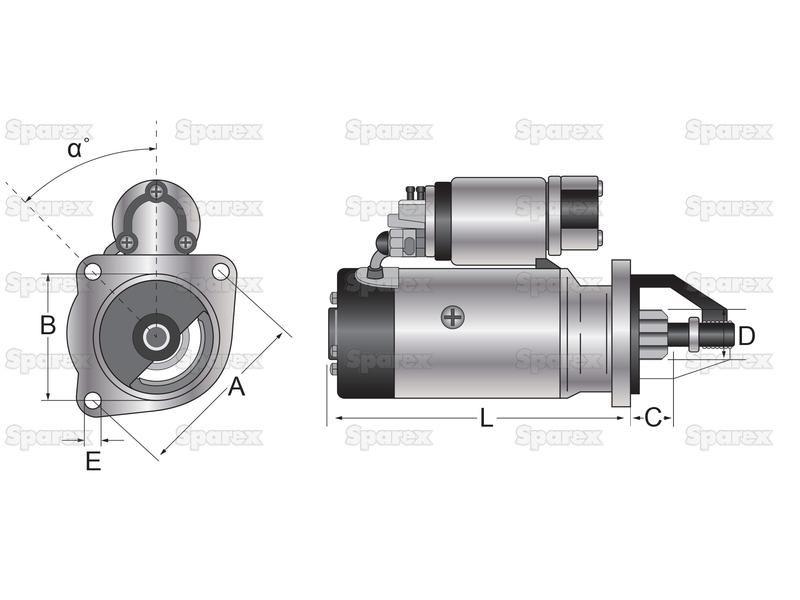

| a Angle ° | -60 |
| A mm | 146 |
| B mm | 110 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 30 |
| D mm | 35 |
| Distance Between Teeth mm | 14.7 |
| E mm | 12 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | No |
| Height mm | 152.4 |
| Kilowatts | 3 |
| Length from Front Mounting Face to Rear mm | 260 |
| Length mm | 387.4 |
| Mounting Hole mm | 12 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Related Products | 38013, 39960 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060050 |
| Bosch |
| 0001359021, 0001359102, 0001367028, 0986011211, 0986011220, 1367082, 986011221, SR914X |
| Case IH |
| 2022506, 4702248, 4737755, 4755109, 4755110, 4807375, 500338952, 504059251, 5801441814, 84273182, 87376493, 9972215 |
| Claas |
| 6005706621 |
| Fiat |
| 153622139, 153632330, 2000314, 2022506, 4669705, 4699705, 4737755, 4755109, 4807375, 500338952, 504059251, 5801441814, 84273182, 87376493, 88205006, 920016758, 99449113, 9972215, ST38TB |
| Ford New Holland |
| 2000314, 2022507, 4169093, 4669705, 4692478, 4702248, 4737755, 4737760, 4755109, 4763996, 4807375, 4807394, 4832942, 500338952, 504059251, 5801441814, 99449113 |
| Iskra |
| IS0403 |
| IVECO |
| 500333271 |
| Lester |
| 16659, 17111, 18029 |
| Lucas |
| LRS00847, LRS847 |
| Magnetimar |
| 30380301, 63216827, 63216831, 68213815, 68216825, 68216826, 94321683, MT38TB, MT68A, MT68AA, MT68AB, MT68AC, MT68AD |
| Valeo |
| 436073, 458297 |
| White Oliver |
| 31-2906208 |
