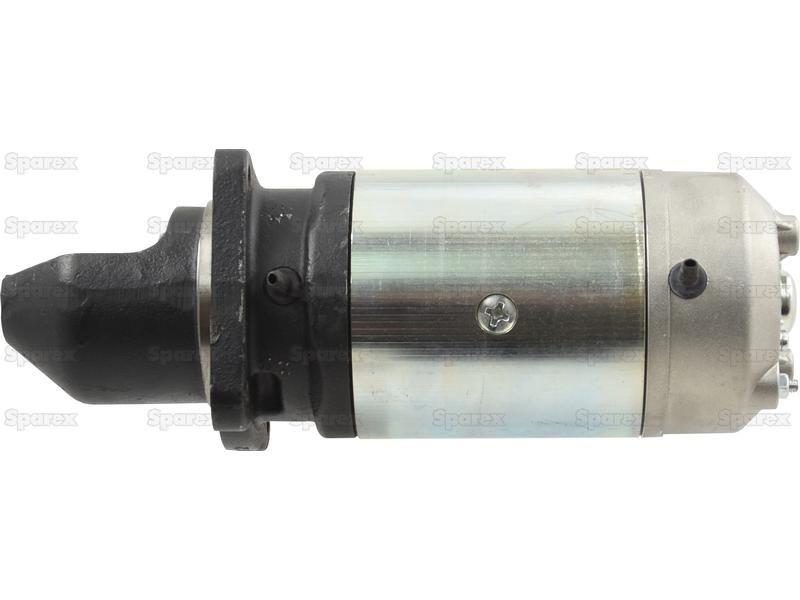

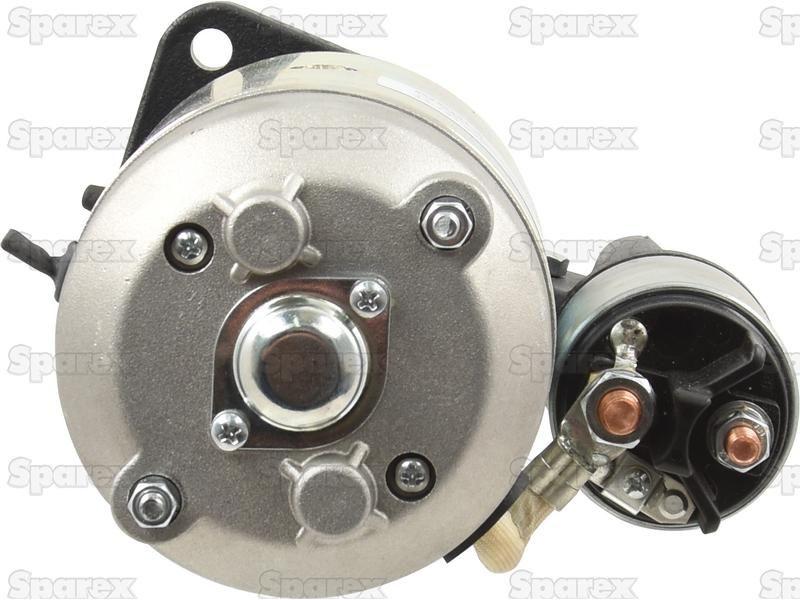

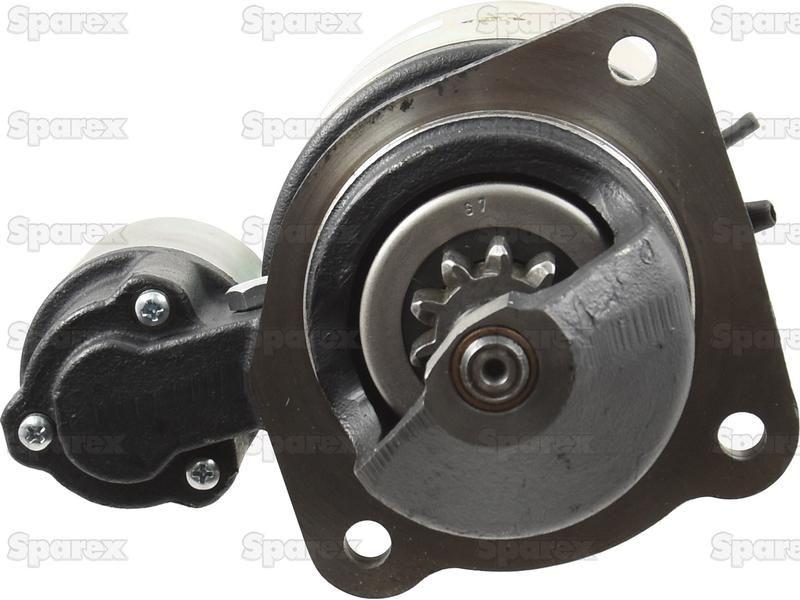

Starter Motor - 12V, 3Kw (Mahle) for Case IH 695 (95 Utility Series )
Part Number: S.127862Categories: Electrical Accessories
Part Number: S.127862
Grade: Replacement
Part Details
Starter Motor - 12V, 3Kw (Mahle)
Technical Information

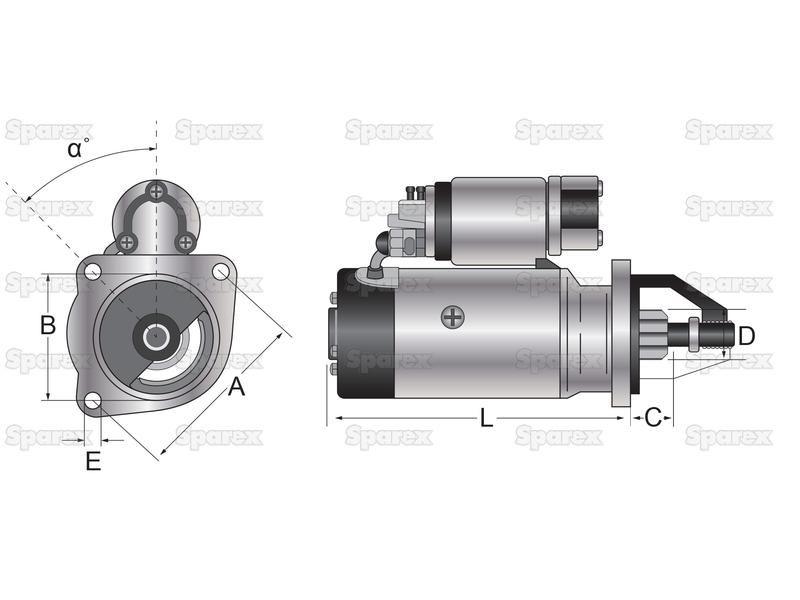

| a Angle ° | -135 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 51 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | No |
| Height mm | 146.1 |
| Kilowatts | 3 |
| Length from Front Mounting Face to Rear mm | 235 |
| Length mm | 387.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| AC Delco |
|---|
| 10461483, 10461607, 10461635, 10461638, 1107867, 1109270, 1113284, 12301335, 1998343, 323-678 |
| Bosch |
| 1354107, 1359045, 1362310, 1367003, 1367042, 986015040, SR9937X |
| Case IH |
| 403300R92, 529965R92, 529965R93, 537140R95 |
| Cousins |
| 3575730RX, 3675130RX |
| HELLA LTD |
| 8EA725963-001, CS106 |
| Iskra |
| IS1018 |
| Lester |
| 16984, 17077, 19652, 4275 |
| Lucas |
| 26336, 26428, 26433, 27508, 27556, 27575, 27586, 27604, LRS00240, S5029 |
| Magnetimar |
| 63227604, MSN799 |
