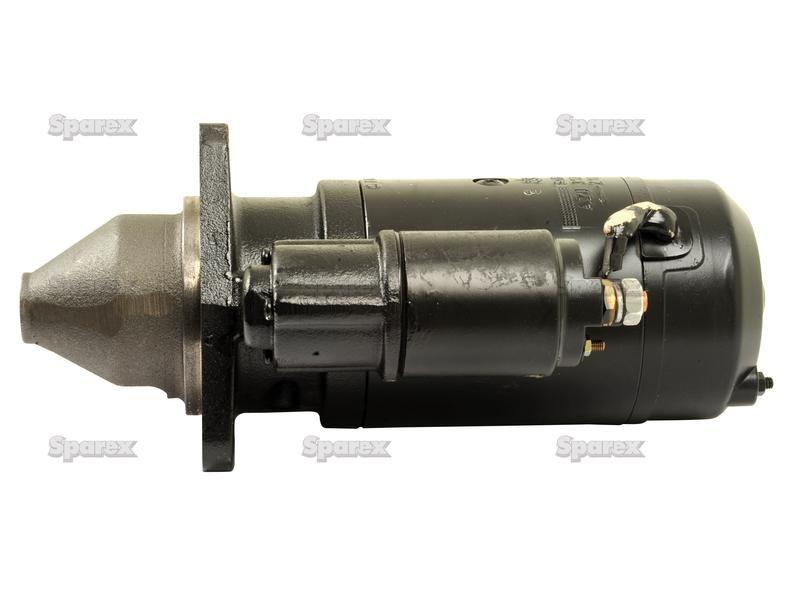

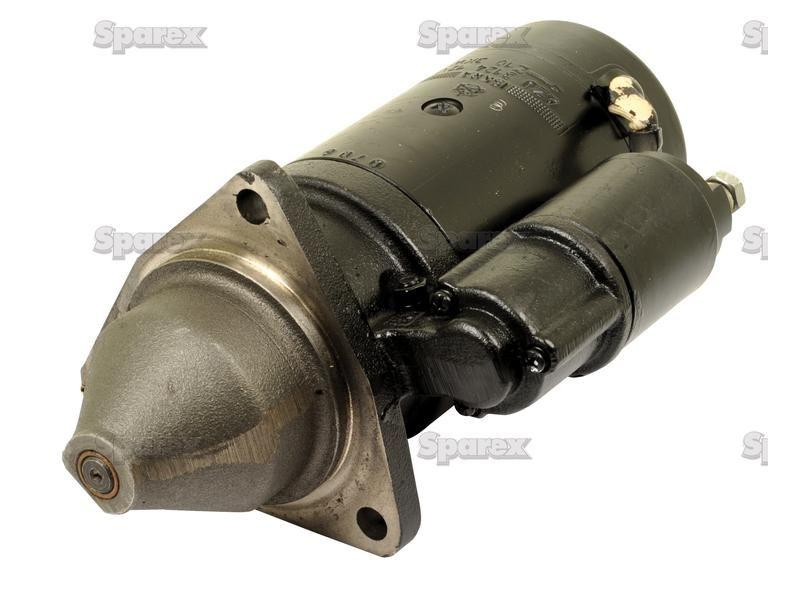

Starter Motor - 12V, 3Kw (Mahle) for Belarus
Part Number: S.36108Categories: Electrical Accessories
Part Number: S.36108
Grade: Replacement
Part Details
Starter Motor - 12V, 3Kw (Mahle)

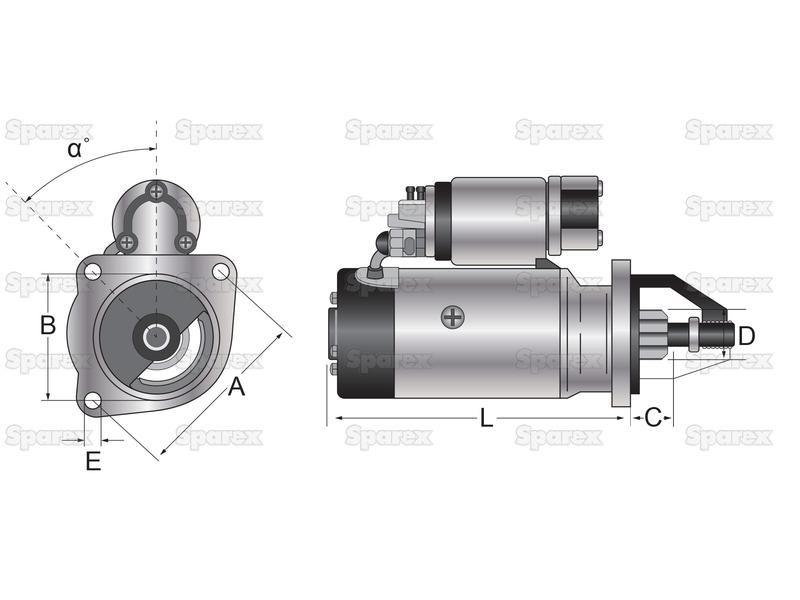

Technical Information
| a Angle ° | -67 |
| A mm | 146 |
| B mm | 100 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 35 |
| D mm | 37 |
| Distance Between Teeth mm | 14.1 |
| E mm | 13.1 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | No |
| Height mm | 152.4 |
| Kilowatts | 3 |
| Length from Front Mounting Face to Rear mm | 250 |
| Length mm | 304.8 |
| Mounting Hole mm | 13.1 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Models
| Belarus |
|---|
| 510, 512, 520, 521, 522, 550E, 552E, 570, 572, 590, 592, 80, 80.1, 80B, 82, 82.1, 82N, 82P, 82V, 900, 920, 922, 950, 952 |
Manufacturer Part Numbers
| Claas |
|---|
| 6005720753 |
| Iskra |
| IS0436 |
| Lester |
| 18546 |
| Magneton |
| 2023708, 9142780 |
