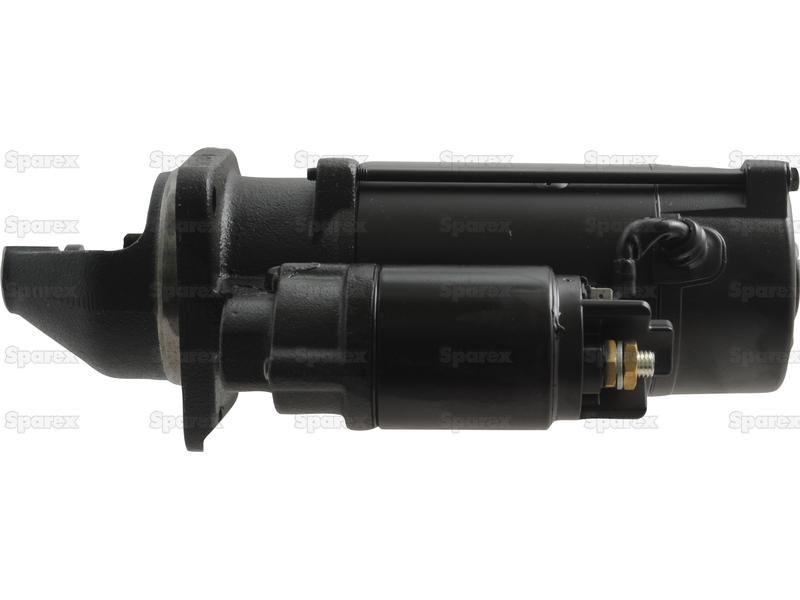

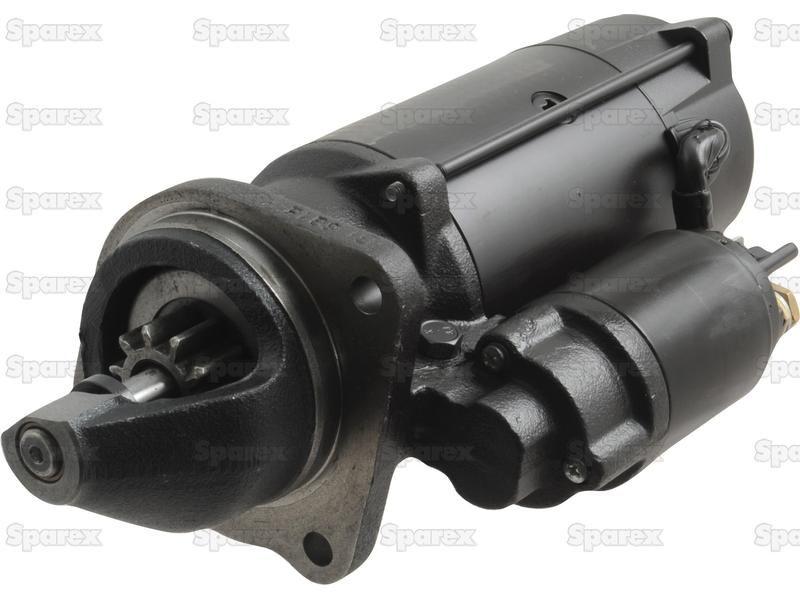

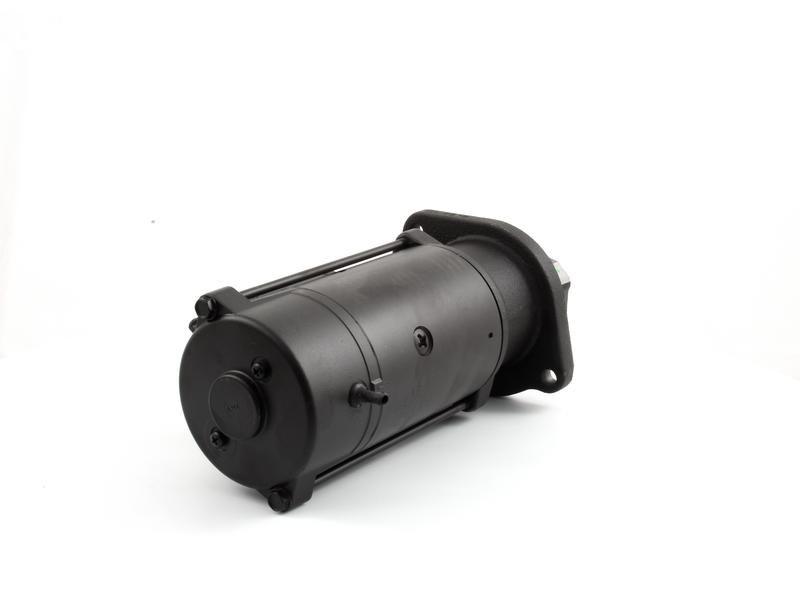

Starter Motor - 12V, 3Kw, Gear Reducted (Mahle) for Massey Ferguson
Part Number: S.36200Categories: Electrical Accessories
Part Number: S.36200
Grade: Replacement
Part Details
Starter Motor - 12V, 3Kw, Gear Reducted (Mahle)
Technical Information
| a Angle ° | 45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 3 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 390.5 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 38018 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Models
| Massey Ferguson |
|---|
| 5465 (5400 Series), 6260 (6200 Series), 6270 (6200 Series), 6280 (6200 Series), 6290 (6200 Series), 6465 (6400 Series), 7475 (7400 Series), 7480 (7400 Series), 8210 (8200 Series), 8220 (8200 Series), 8240 (8200 Series), 8250 (8200 Series), 8260 (8200 Series) |
Manufacturer Part Numbers
| AGCO |
|---|
| 1029405, 1072559, 3784890M1, 3786094M93, 3786094M94, 3823621M92, 3823621M95 |
| Argo |
| 3667040M91, 3680133M91 |
| Iskra |
| IS1071 |
| Landini |
| 2873K404, 2873K621, 3667040M91, 3680133M91, 3784889M2, 3823621M94 |
| Lester |
| 18941 |
| Massey Ferguson |
| 2873K404, 3784889M2, 3784890M1, 3823621M91, 3823621M93, 3823621M94, 4225352M91, 4226826M91 |
| McCormick |
| 3667040M91, 3784889M2 |
