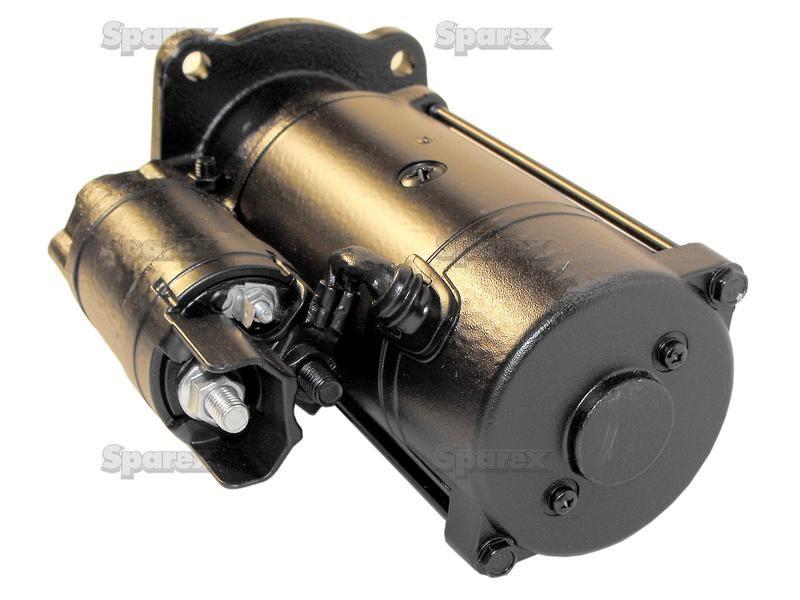

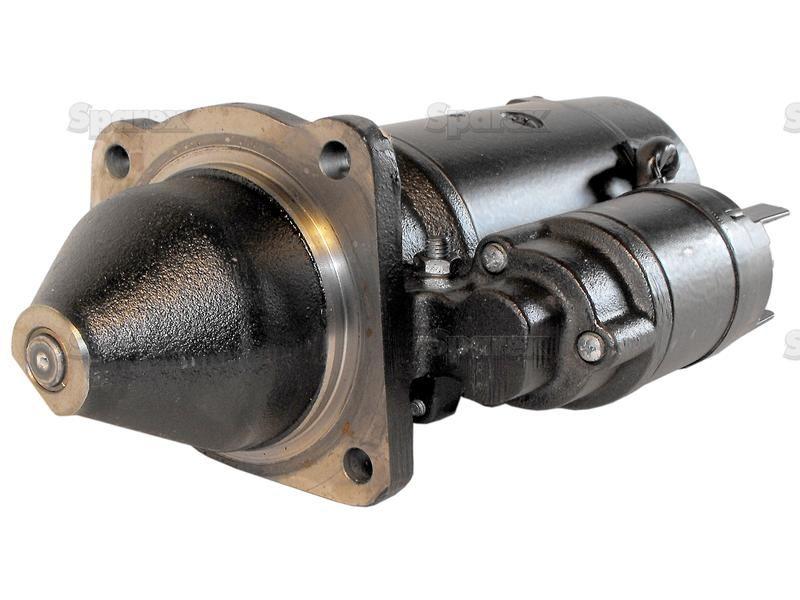

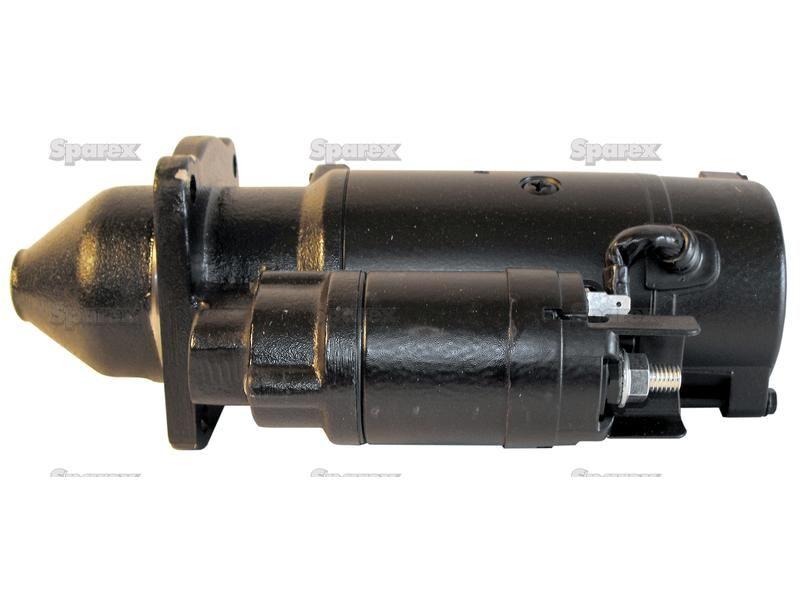

Starter Motor - 12V, 3Kw, Gear Reducted (Mahle) for Claas
Part Number: S.32998Categories: Electrical Accessories
Part Number: S.32998
Grade: Replacement
Part Details
Starter Motor - 12V, 3Kw, Gear Reducted (Mahle)

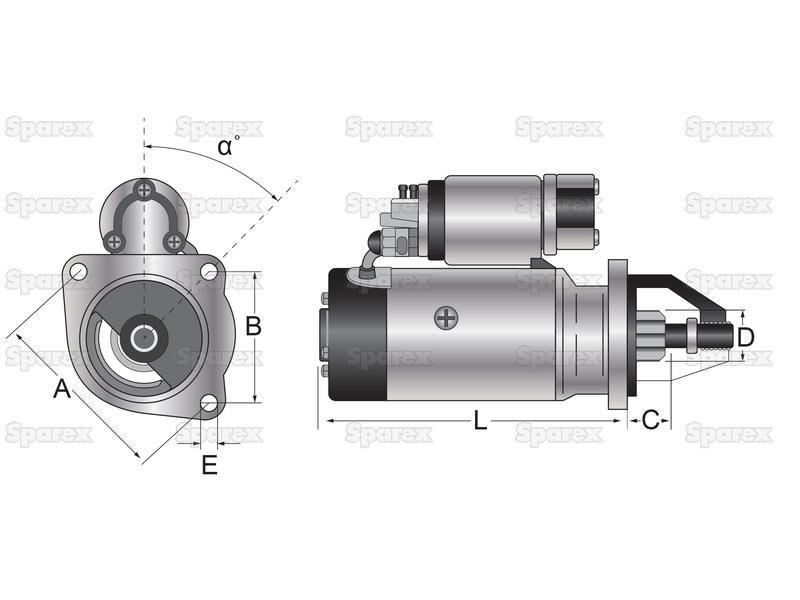

Technical Information
| a Angle ° | -52 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 31 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.5 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 146.1 |
| Kilowatts | 3 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 385.7 |
| Mounting Hole mm | 10.5 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 215.9 |
Models
| Claas |
|---|
| ATLES 926, ATLES 936, ATLES 946, SCORPION 6030 |
Manufacturer Part Numbers
| Bosch |
|---|
| 1230006, 1230014, 986016550, 986019020, 986019547 |
| Deutz-Fahr |
| 0.900.1572.8, 01180928, 01182233, 1178026, 1180928, 1181976, 3045396 |
| Fendt |
| F514900060040, F716900060010, F716900060060, F716903060010 |
| Fiat |
| 73328004 |
| Iskra |
| IS0841 |
| Kramer |
| 1000082774 |
| Lester |
| 18232, 6579 |
| Lucas |
| LRS01603 |
| Same |
| 1180928, 90015728 |
