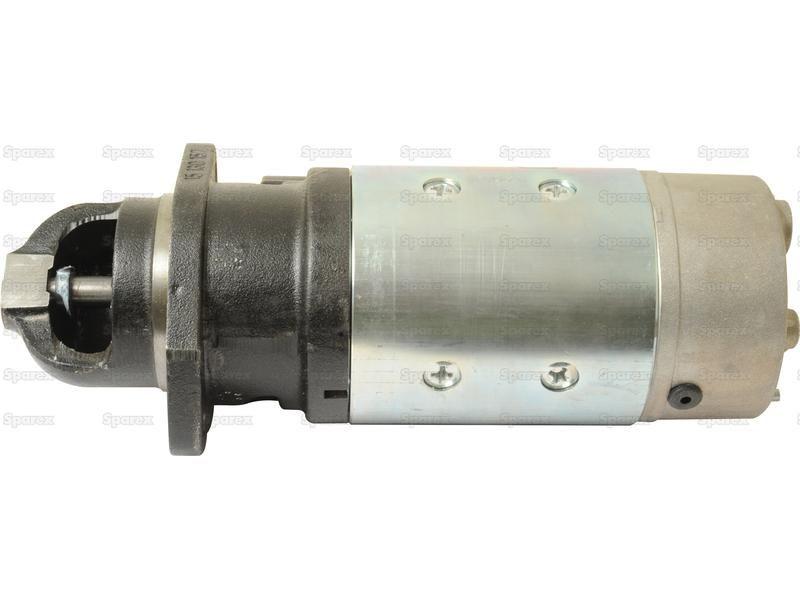

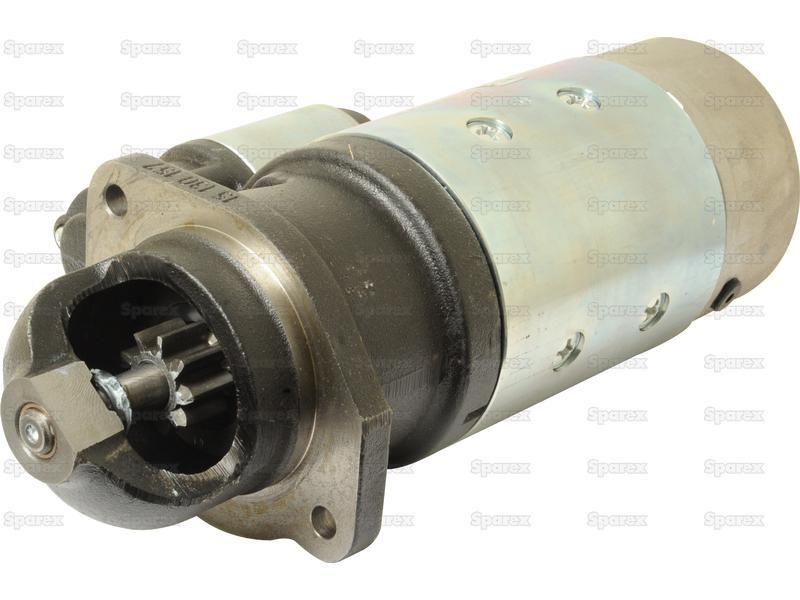

Starter Motor - 12V, 3.7Kw (Mahle) for Deutz-Fahr DX4.61 (DX4 Series)
Part Number: S.359690Categories: Electrical Accessories
Part Number: S.359690
Grade: Replacement
Part Details
Starter Motor - 12V, 3.7Kw (Mahle)
Technical Information

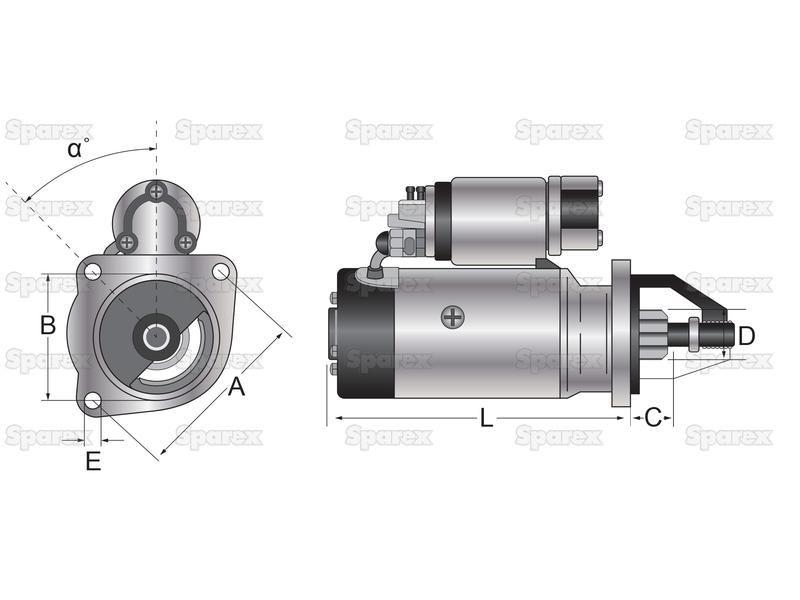

| a Angle ° | -50 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 31 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | No |
| Height mm | 152.4 |
| Kilowatts | 3.7 |
| Length from Front Mounting Face to Rear mm | 270 |
| Length mm | 152.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Related Products | 39954 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 387.4 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060140 |
| Bosch |
| 0001365004, 0986011180, 1365004, 986011180 |
| Claas |
| 6005706635 |
| Deutz-Fahr |
| 01163758, 01179318, 01180805, 01182233, 1163758 |
| Iskra |
| IS0619 |
| IVECO |
| 1163758, 42498131 |
| Lester |
| 17076 |
| Lucas |
| LRS00672 |
