Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for JCB FASTRAC 2150
Part Number: S.127864Categories: Electrical Accessories
Part Number: S.127864
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information

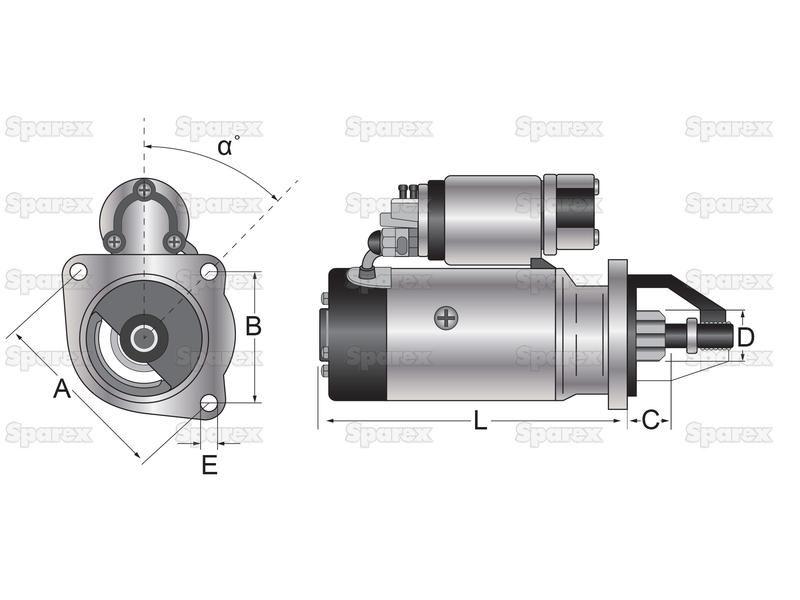

| a Angle ° | 50 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 280 |
| Length mm | 387.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| AC Delco |
|---|
| DRS3289 |
| Bosch |
| 986018151 |
| Case IH |
| 234986A1, 388186A2 |
| HELLA LTD |
| 8EA730209-001, 8EA730219-001, CS693, CS703 |
| Hitachi |
| S12-84 |
| Iskra |
| IS1377 |
| JCB |
| 26294, 26343, 714/29300R, 714/40006 |
| Landini |
| 3551773M91, 3648190M91, 3648190M92 |
| Lester |
| 17644, 17649, 17650, 18479, 19867 |
| Lucas |
| 27518, 27520, 27570, 27588, LRS00124, LRS00161, LRS00195, LRS00968, NSB524, NSB529 |
| Magnetimar |
| 54293284, 63227478, 63227486, 63227518, 63227520, 63227585, 63227588, 63227596, 63296357, 943226294, 943226329, 943226348, 943226357, 943226359, 943226366, 943226369, 943227502, 943227518, 943227520, 943227524, 943227570, 943227572, 943252075, 943252076, MSN180, MSN191 |
| Manitou |
| 745011 |
| Massey Ferguson |
| 3581576M1, 3581576M2, 3930508R1 |
| McCormick |
| 388186A1, 388186A2, 388186A3 |
| Perkins |
| 1446802M91, 1447732MI, 1447732R1, 2873A001, 2873A030, 2873A102, 2873B071, 37701400 |
