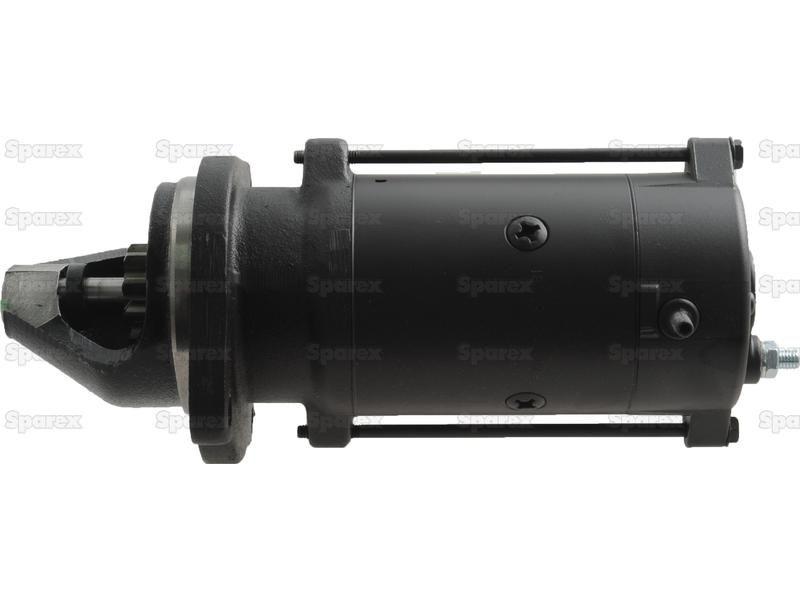

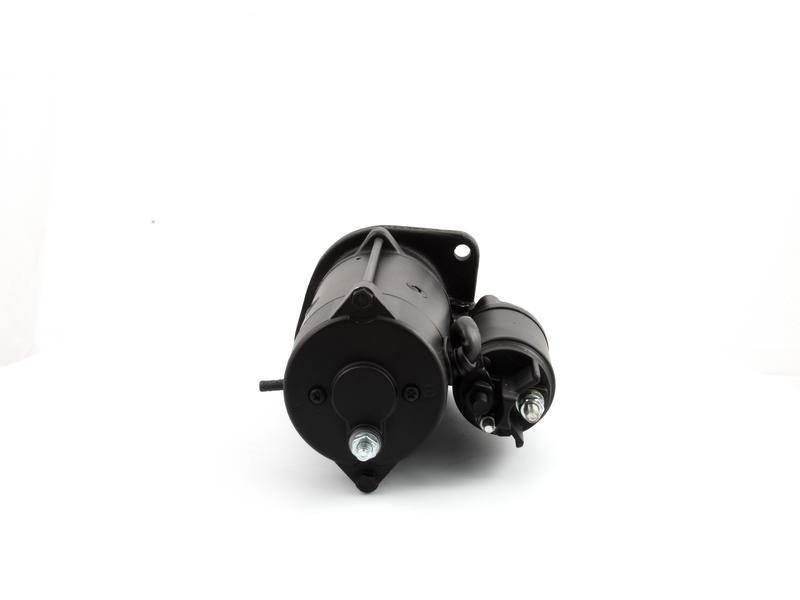

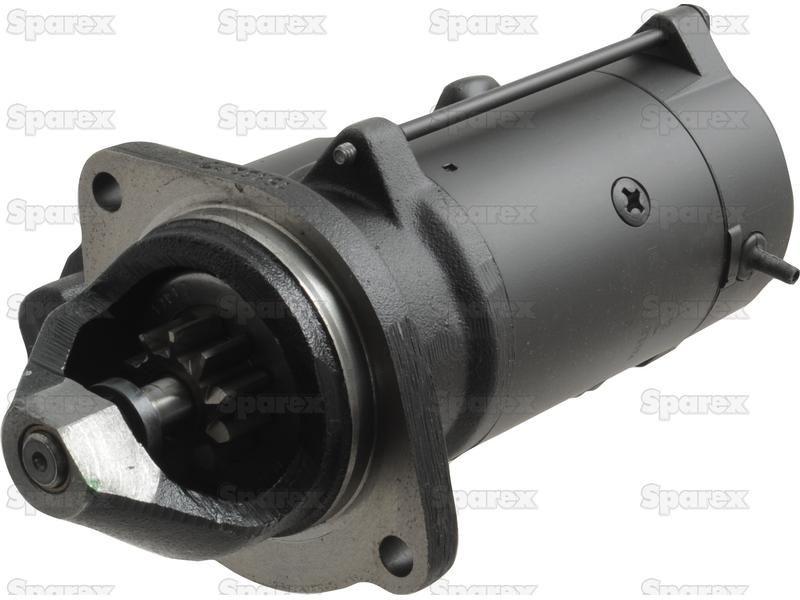

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for JCB 2CX
Part Number: S.113797Categories: Electrical Accessories
Part Number: S.113797
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)

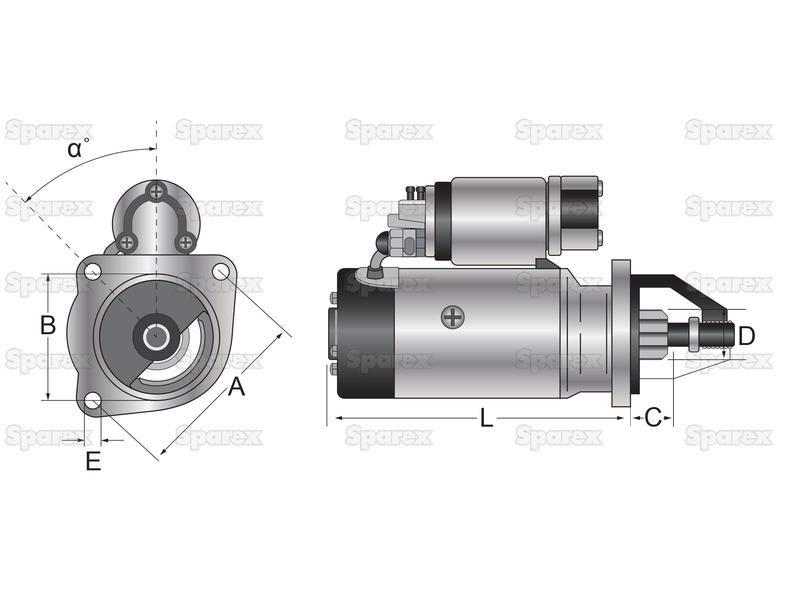

Technical Information
| a Angle ° | -42 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 220 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| Iskra |
|---|
| IS1201 |
| JCB |
| 714/40159, 714/40159R, 714/40231, 714/40531, 714/40536 |
| Massey Ferguson |
| 1482841M92, 4225326M91, 4226784M91, 4226785M91, 4227054M91, 4227441M91 |
| Perkins |
| 2873A029, 2873K405, 2873K624, 2873K626, T410865 |
