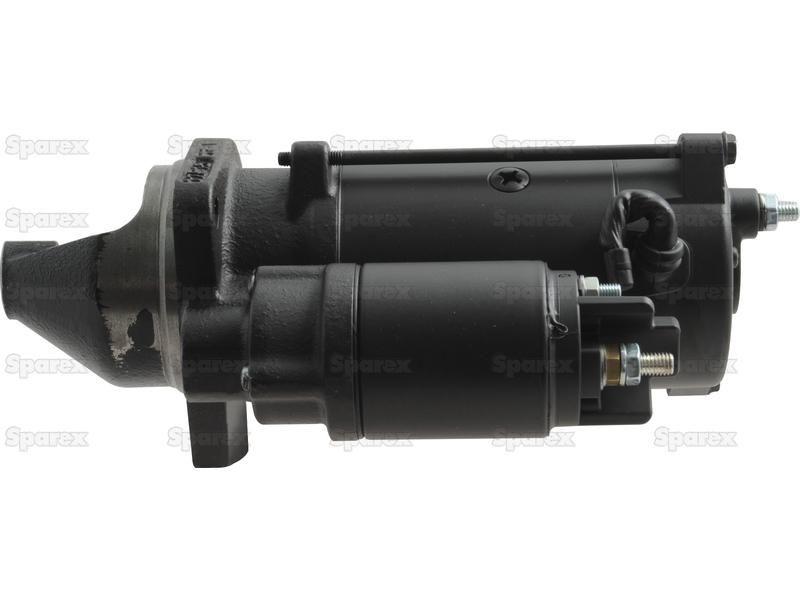

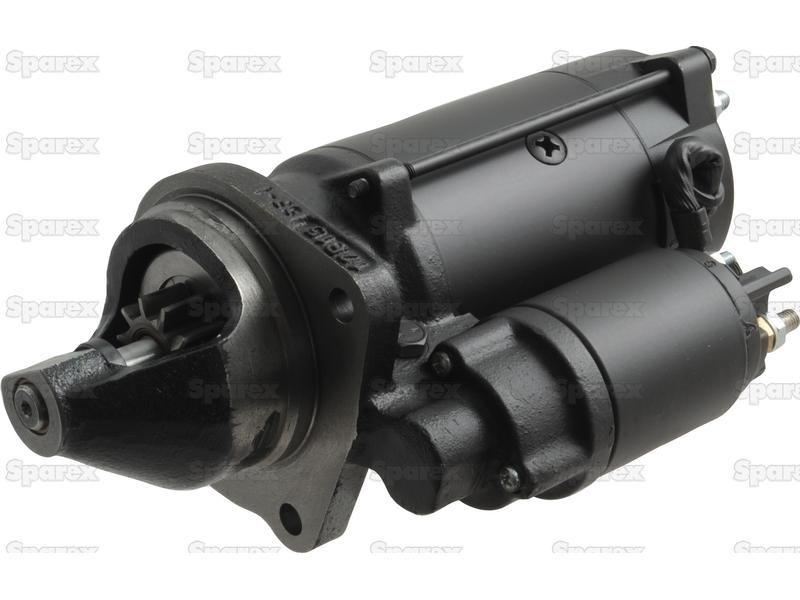

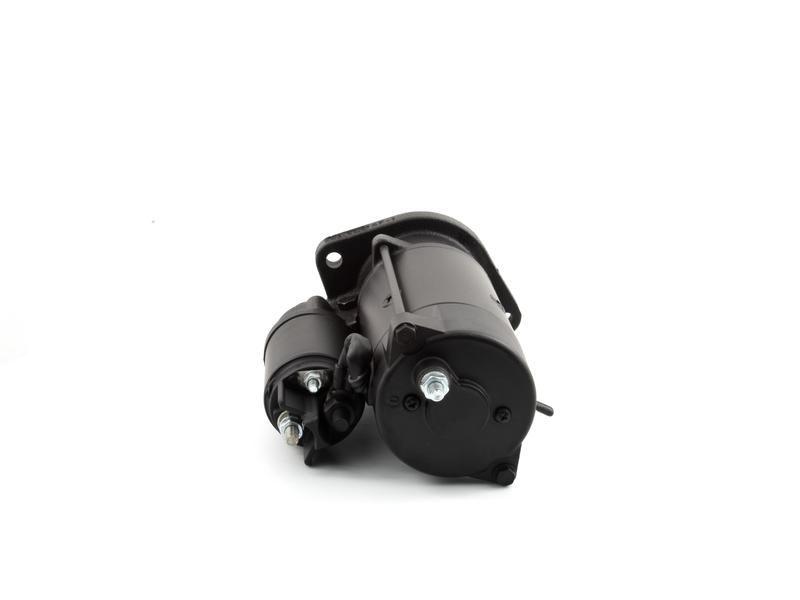

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for Massey Ferguson
Part Number: S.127860 - Categories: Electrical Accessories
£419.44
per item, including UK VAT and delivery
Part Number: S.127860
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information
| a Angle ° | 50 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 146.1 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 225 |
| Length mm | 387.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Models
| Massey Ferguson |
|---|
| 5465 (5400 Series), 5470 (5400 Series), 5470 SA (5400 Series), 5475 SA, 6260 (6200 Series), 6270 (6200 Series), 6280 (6200 Series), 6290 (6200 Series), 6465 (6400 Series), 6475 (6400 Series), 6480 (6400 Series), 6485 (6400 Series), 6490 (6400 Series), 6495 (6400 Series), 6497 (6400 Series), 6499 (6400 Series), 7465 (7400 Series), 7475 (7400 Series), 7480 (7400 Series), 7485 (7400 Series), 7485 DYNA VT/DYNA STEP, 7490 (7400 Series), 7495 (7400 Series), 8210 (8200 Series), 8220 (8200 Series), 8240 (8200 Series), 8250 (8200 Series), 8925 (Telescopic Handlers), 8926 (Telescopic Handlers) |
Manufacturer Part Numbers
| Caterpillar |
|---|
| 2253148, 3127539, 3575202 |
| Claas |
| 0011445780, 11445780 |
| Iskra |
| IS1195 |
| Lester |
| 18941 |
| Lucas |
| LRS02206 |
| Magnetimar |
| 63280040, MSN8040 |
| Massey Ferguson |
| 3784889M2, 3784890M1, 3823621M91 |
| Perkins |
| 2873K404, 2873K621, 2873K632, 3575202, 3586847 |
