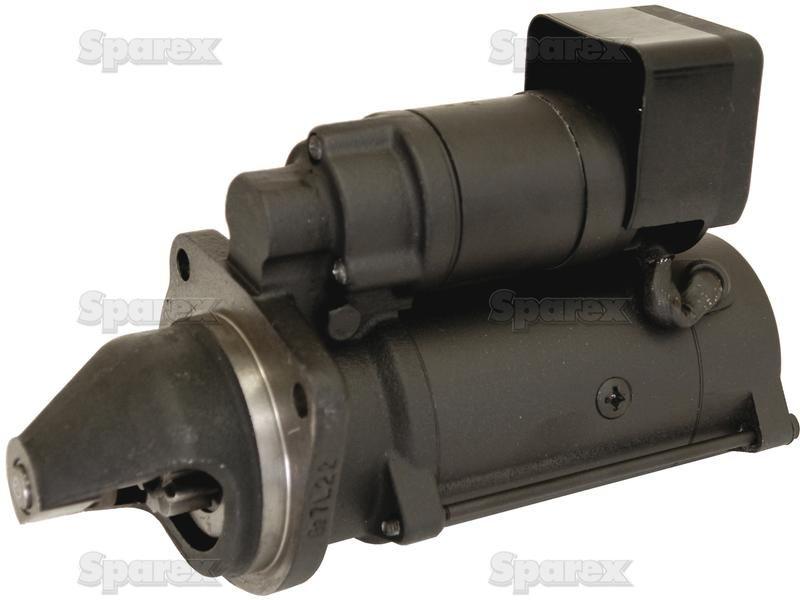

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for Massey Ferguson 290 (200 Series)
Part Number: S.36213Categories: Electrical Accessories
Part Number: S.36213
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information
| a Angle ° | -40 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 204 |
| Length mm | 384.2 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| AGCO |
|---|
| 1482841M92, 191068M94 |
| Bosch |
| 9000083000, 9000083072 |
| Case IH |
| 234987A1 |
| Iskra |
| IS1098 |
| Landini |
| 1447834M91, 3542185M93, 3667037M91, 4213912M91, 706022A1 |
| Lester |
| 32561 |
| Massey Ferguson |
| 4270745M2 |
| McCormick |
| 1447834M91, 3542185M93, 3667037M91, 706022A1 |
