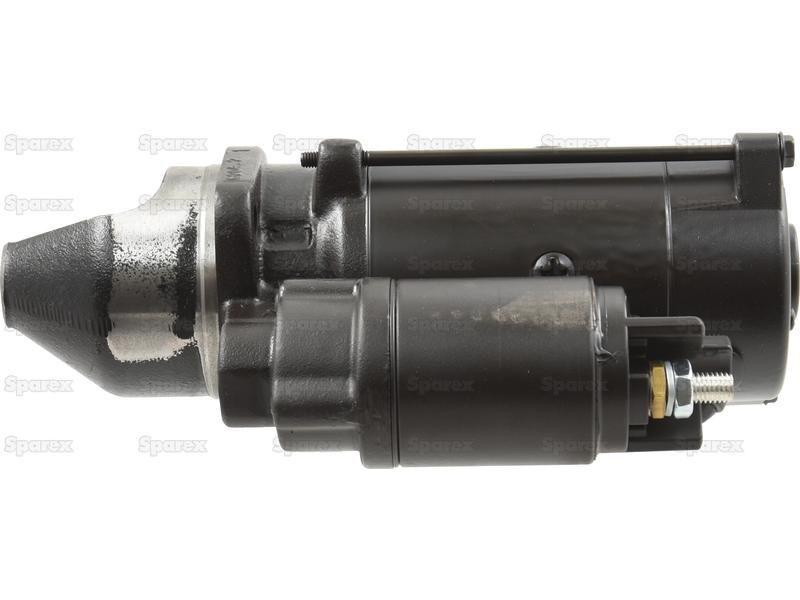

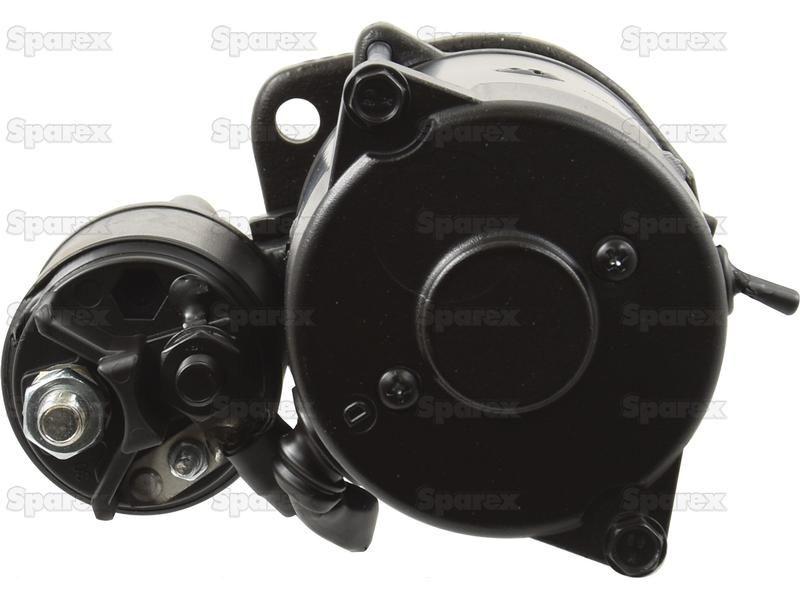

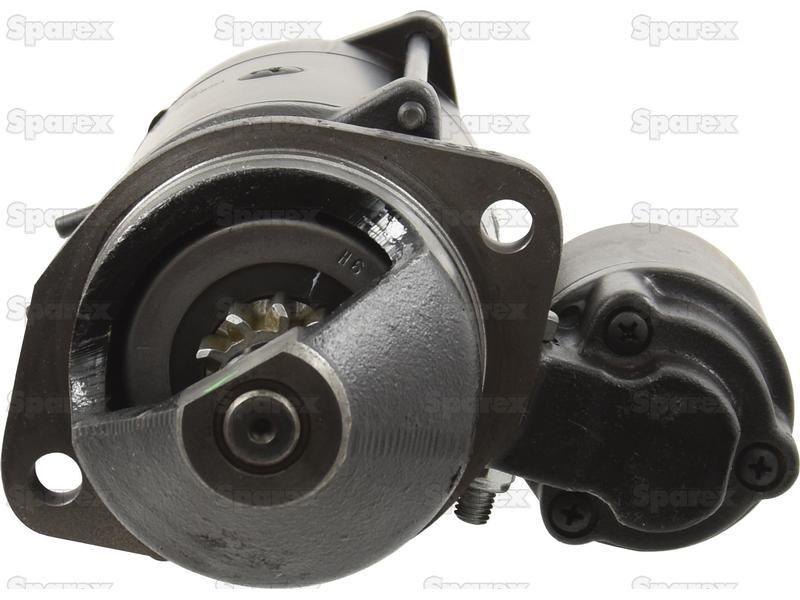

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for John Deere 3050 (50 Series)
Part Number: S.127867 - Categories: Electrical Accessories
£312.71
per item, including UK VAT and delivery
Part Number: S.127867
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information

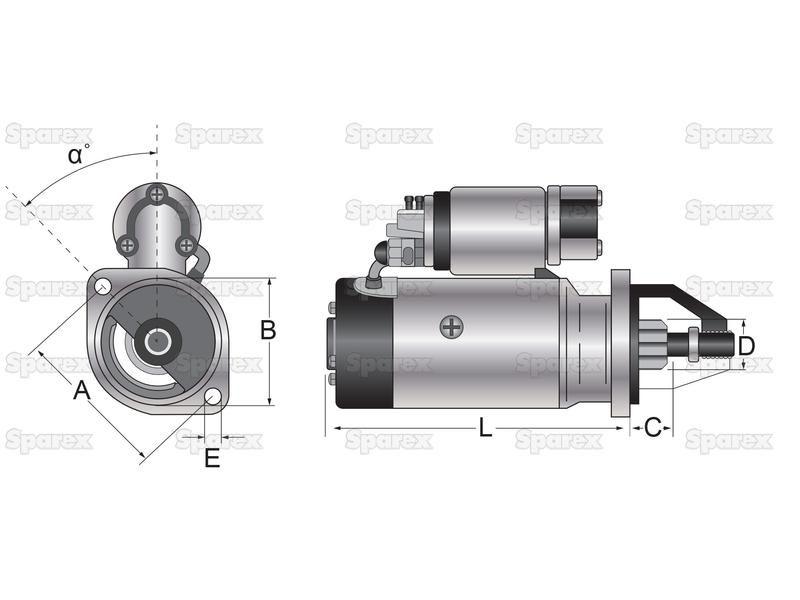

| a Angle ° | -45 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 38 |
| D mm | 32 |
| Distance Between Teeth mm | 12.3 |
| E mm | 10.5 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 139.7 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 192 |
| Length mm | 165.1 |
| Mounting Hole mm | 10.5 |
| Number of Flange Holes | 2 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 314.3 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001223502, 1223502, 986022520 |
| Iskra |
| IS1059 |
| John Deere |
| RE50095, RE501347, RE501680, RE501689, RE501693, RE501713, RE502156, RE502196, RE516455, RE519568, RE551444, RE60641, RE62916, RE63010, SE501869 |
| Lester |
| 17086, 18476, 18526, 18529 |
| Valeo |
| 438012, 455735 |
