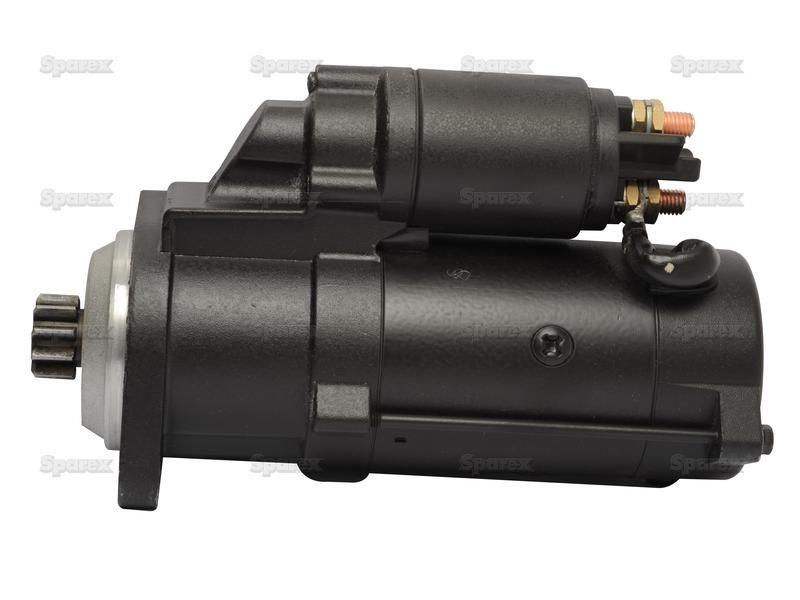

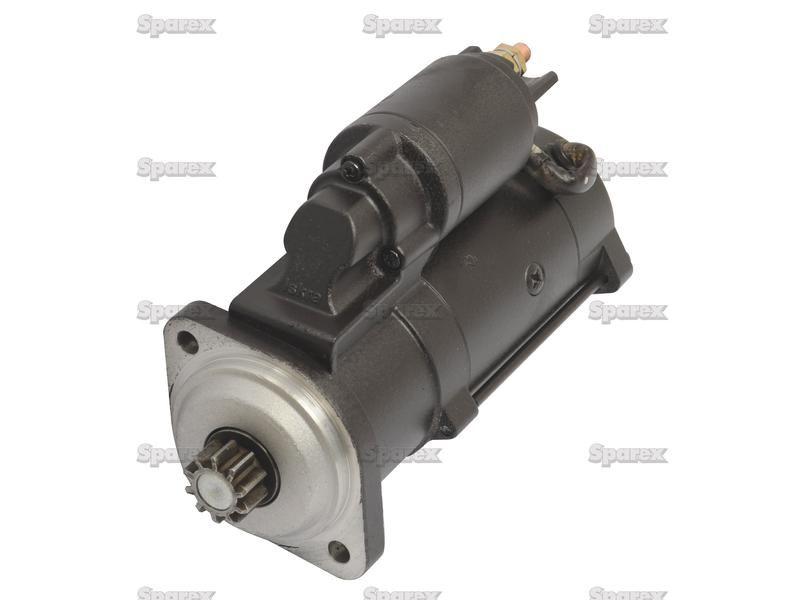

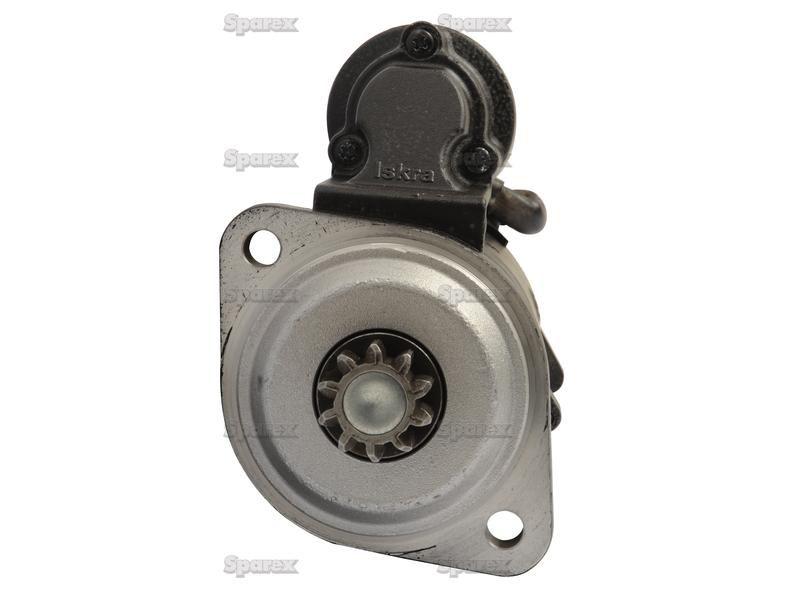

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for Case IH
Part Number: S.36196Categories: Electrical Accessories
Part Number: S.36196
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information

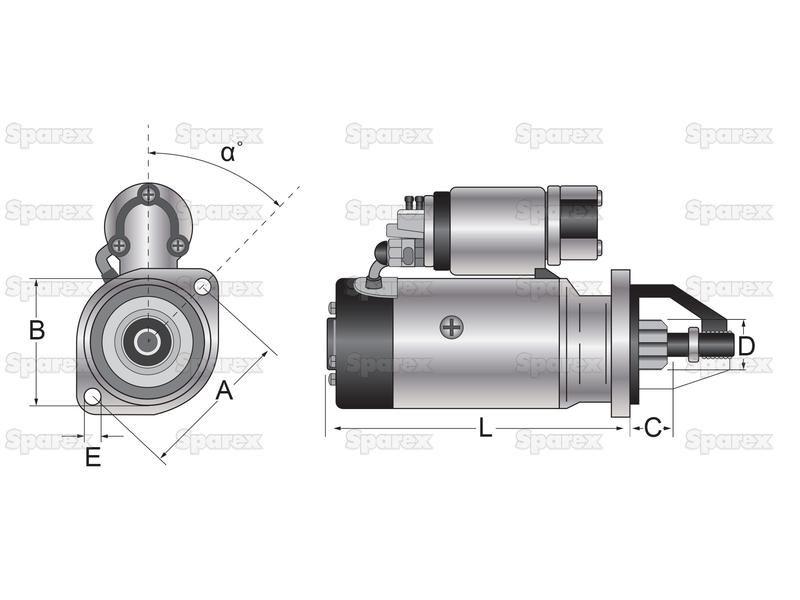

| a Angle ° | -45 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | Mahle |
| Brand | Mahle |
| C mm | 38 |
| D mm | 32 |
| Distance Between Teeth mm | 12.3 |
| E mm | 10.5 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 139.7 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 330.2 |
| Mounting Hole mm | 10.5 |
| Number of Flange Holes | 2 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 225.4 |
Models
| Case IH |
|---|
| MXM120 (MXM Series), MXM130 (MXM Series), MXM135 (MXM Series), MXM140 (MXM Series), MXM150 (MXM Series), MXM155 (MXM Series), MXM165 (MXM Series), MXM175 (MXM Series), MXM180 (MXM Series), MXM190 (MXM Series) |
Manufacturer Part Numbers
| Iskra |
|---|
| IS1027 |
| John Deere |
| RE505746, RE516157, RE533976, RE553507 |
