Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for Same Titan 160 (Titan)
Part Number: S.127872 - Categories: Electrical Accessories
£360.29
per item, including UK VAT and delivery
Part Number: S.127872
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)

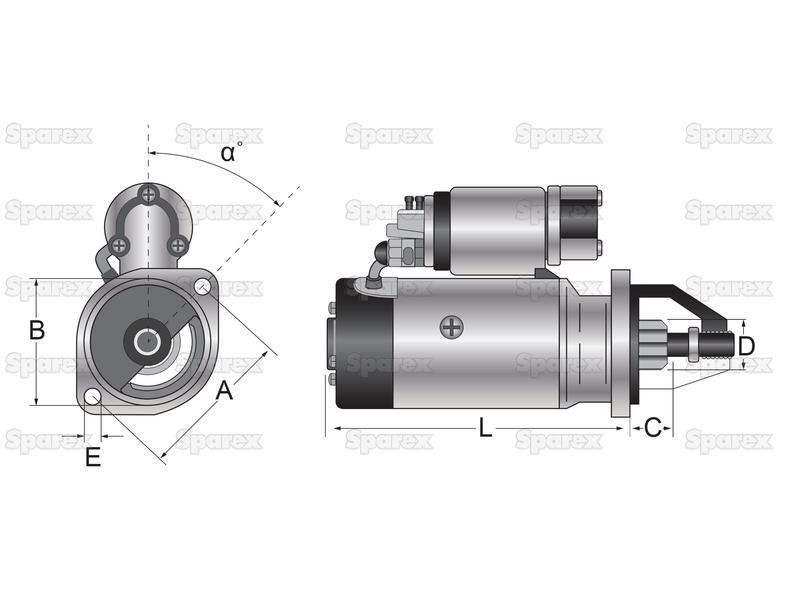

Technical Information
| Number of Teeth: | 10 |
| A (mm) | 105 |
| Volts | 12V |
| Mounting Hole mm | 13.5 |
| E (mm) | 13.5 |
| Height (mm) | 139.7 |
| Distance Between Teeth mm | 14.4 |
| Number of Flange Holes | 2 |
| Fitting | 2 Hole Flange - RH Opening |
| C (mm) | 25.6 |
| Length from Front Mounting Face to Rear mm | 256 |
| Kilowatts | 3.2 |
| Length (mm) | 323.9 |
| D (mm) | 38 |
| a Angle ° | 40 |
| B (mm) | 82.5 |
| Tariff Code | 8511400090 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Brand | Mahle |
| Bell Opening | RH |
| Gear Reducted | Yes |
Manufacturer Part Numbers
| Bosch |
|---|
| 1230012, 1262029, 1262030, 986024080 |
| Case IH |
| 1530289C1 |
| Delphi |
| DRS3326 |
| Deutz-Fahr |
| 296192300 |
| Iskra |
| IS1450 |
| Lamborghini |
| 296192300 |
| Lester |
| 19666 |
| Lucas |
| LRS01053 |
| Same |
| 2.9619.565.0, 296192300, 296193900, 296195600, 299392950 |
| Steyr |
| 61100090002 |
