Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for JCB 3C (Sitemaster 3C)
Part Number: S.127859Categories: Electrical Accessories
Part Number: S.127859
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information

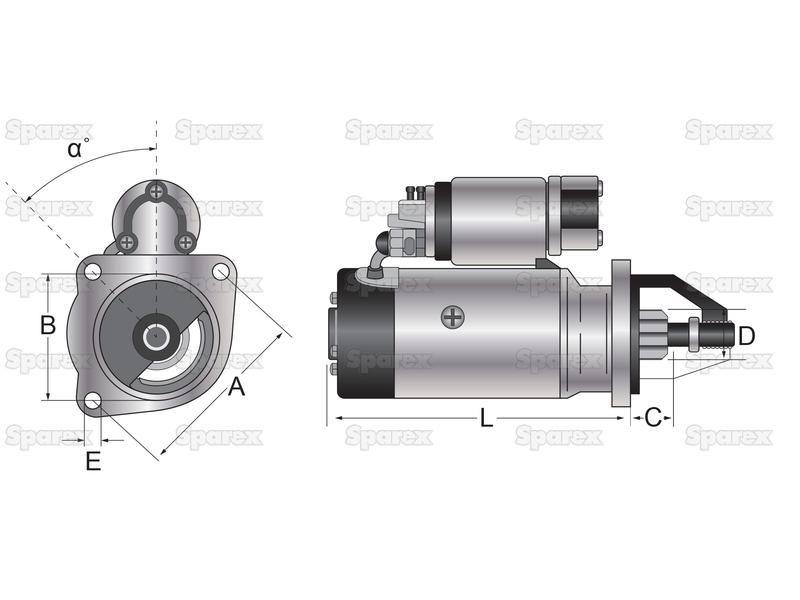

| a Angle ° | -42 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 238 |
| Length mm | 304.8 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 196.9 |
Manufacturer Part Numbers
| AC Delco |
|---|
| DRS3287, DRS3333, DRS3769 |
| AGCO |
| 3763362M94 |
| Bosch |
| 1367040, 9000143416, 986023190 |
| Case IH |
| 234987A1, 3116683EX, 3116683R91, 323319A1, 388187A1, 388187A2, 395377A1, 73326810 |
| HELLA LTD |
| 8EA726027-001, 8EA737250-001, CS1033, CS201 |
| Hitachi |
| S13-73, S13-74 |
| Iskra |
| IS1378 |
| JCB |
| 26358, 26358A, 26414, 27519, 714/29500 |
| Landini |
| 3542185M91, 3542185M92, 3542185M93, 3546391M91 |
| Lester |
| 17072, 17649, 17650, 17651, 17652, 18289, 18482, 18919, 19736, 30216, 32560 |
| Lucas |
| 26271, 26410, 27541, 27565, 27568, 27572B, 27578, LRS00162, LRS00173, LRS00232, LRS00306, LRS00519, NSB531, NSB540, S5027, S5036 |
| Magnetimar |
| 54293280, 63216817, 63226323, 63226345, 63226405, 63226406, 63226410, 63227477, 63227479, 63227510, 63227515, 63227523, 63227539, 63227541, 63227565, 63227568, 63227590, 63227598, 63227602, MSN178, MSN199, MT68S |
| Massey Ferguson |
| 1691806R1, 1860093M2, 1868285R3, 1868287T, 2873002T, 2873006T, 3519400M92, 3542185M92, 3763362M94, 3930506R1, 3930509R1 |
| McCormick |
| 388187A2, 388187A3 |
| Perkins |
| 1447834M91, 26410R, 2873002, 2873003, 2873004, 2873A029, 2873A031, 2873A032, 2873B055, 2873B057, 2873B072 |
| Renault |
| 6005003154, 6005021272, 6005700081, 7700011850, 7701031686 |
| Ursus |
| 7017954M1 |
