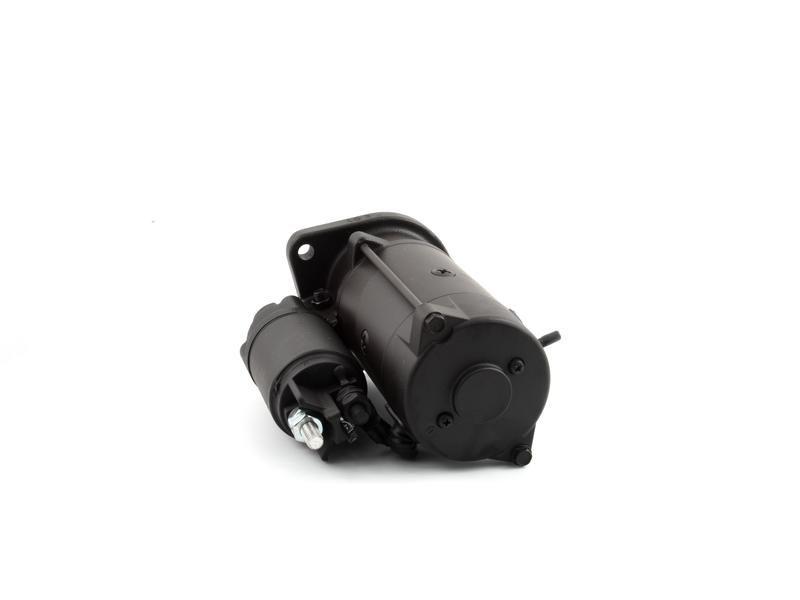

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for Steyr 4075 KOMPAKT
Part Number: S.127873Categories: Electrical Accessories
Part Number: S.127873
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information

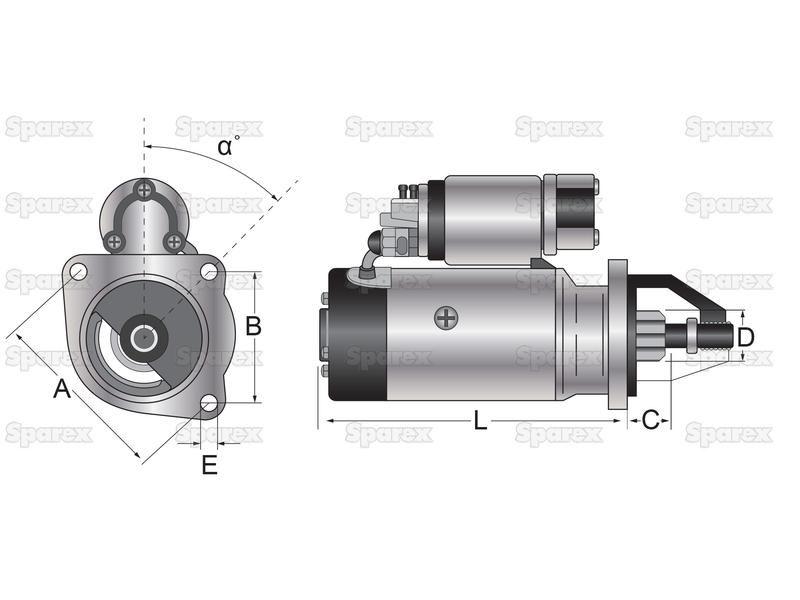

| a Angle ° | 45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 30 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 202 |
| Length mm | 387.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 215.9 |
Manufacturer Part Numbers
| Bosch |
|---|
| 1223507 |
| Case IH |
| 84208918, 87583927 |
| Fiat |
| 47715266, 504388220, 82036365, 84208918, 87398251, 87583927 |
| Ford New Holland |
| 47715266, 504388220, 84208918, 87398251, 87583927 |
| Iskra |
| IS1189 |
| IVECO |
| 504015749 |
| Lester |
| 19860 |
