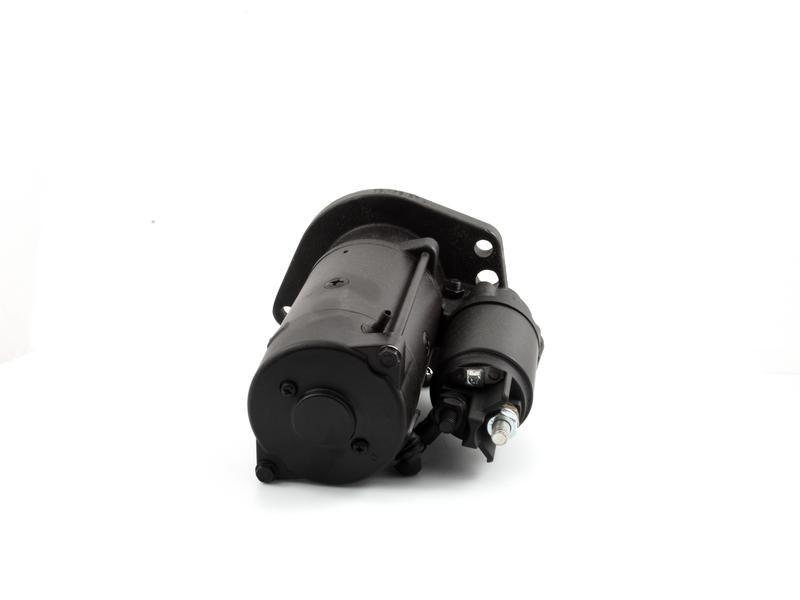

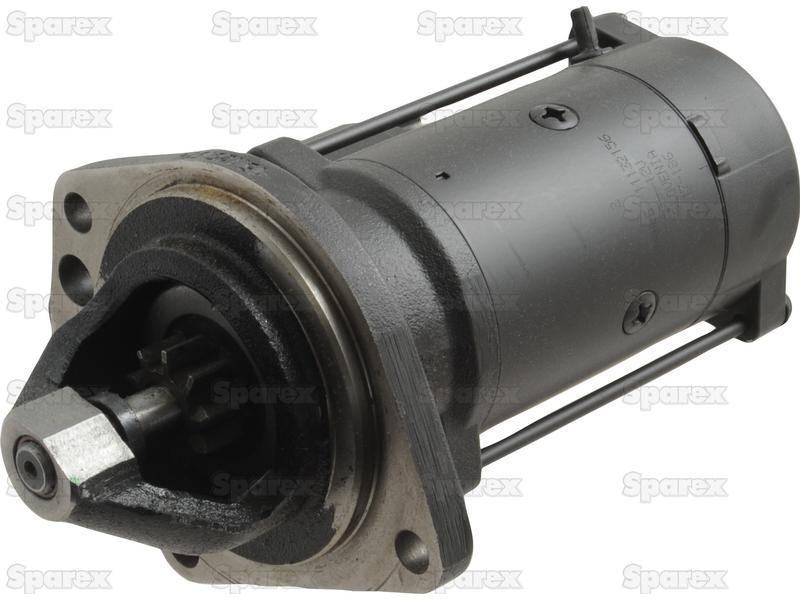

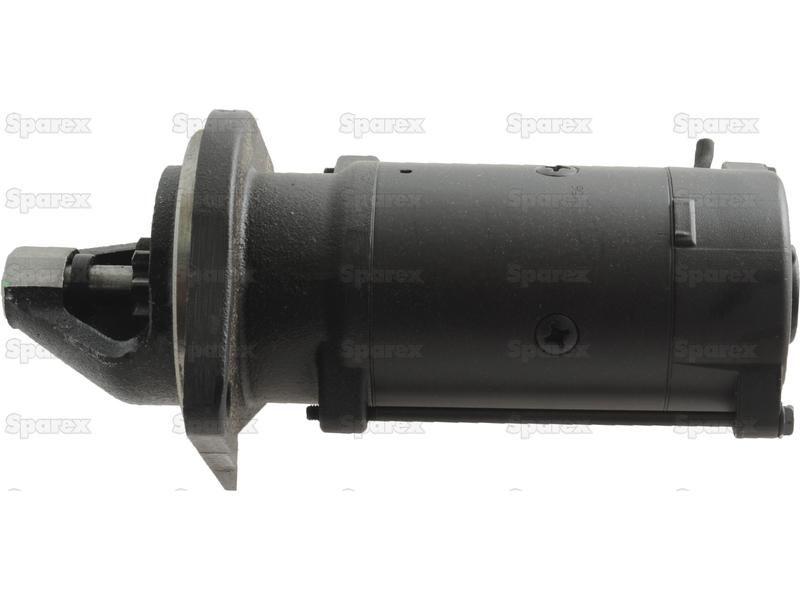

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for Fiat L95 (L Series)
Part Number: S.127865 - Categories: Electrical Accessories
£435.66
per item, including UK VAT and delivery
Part Number: S.127865
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information
| a Angle ° | -55 |
| A mm | 146 |
| B mm | 110 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 30 |
| D mm | 35 |
| Distance Between Teeth mm | 14.7 |
| E mm | 12.2 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 149.2 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 204 |
| Length mm | 387.4 |
| Mounting Hole mm | 12.2 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 247.7 |
Manufacturer Part Numbers
| Bosch |
|---|
| 1359021, 1359102, 1367028, 1367082, 986011220, 986011221, SR914X |
| Case IH |
| 87376493, 88205006 |
| Fiat |
| 153632330, 2000314, 2022506, 2022507, 4169093, 4669705, 4692478, 4699705, 4702248, 4737755, 4755109, 4755110, 4763996, 4807375, 4832942, 5801441814, 84273182, 87376493, 88205006, 9972215 |
| Ford New Holland |
| 84273182, 87376493, 88205006 |
| HELLA LTD |
| 8EA726032-001, CS240 |
| Iskra |
| IS1386 |
| IVECO |
| 500333271, 504059251 |
| Lester |
| 16659, 17111, 18029 |
| Lucas |
| LRS00847 |
| Magnetimar |
| 30380301, 63213815, 63216825, 63216826, 63216827, 63216831, 63296865, 943216831, MSN219, MT38QA, MT38TB, MT68A, MT68AA, MT68AB, MT68AC, MT68AD |
| Valeo |
| 436073, 458297 |
