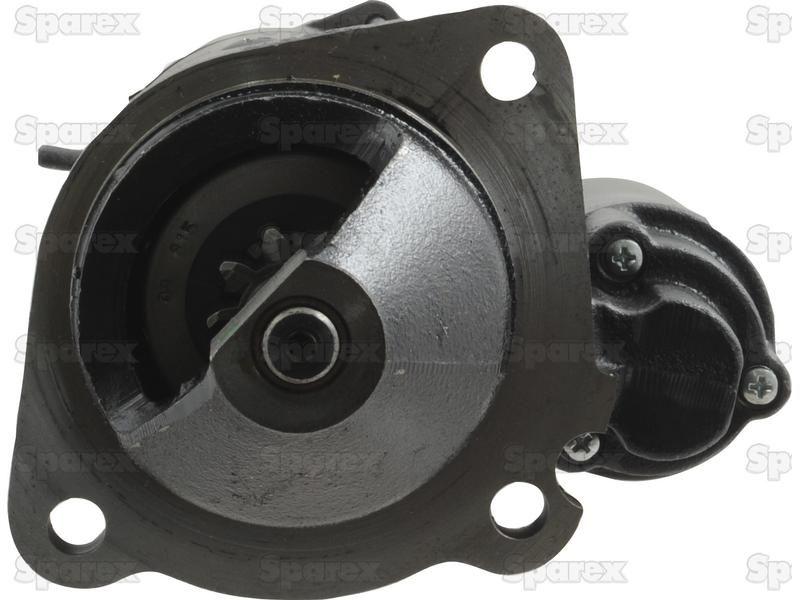

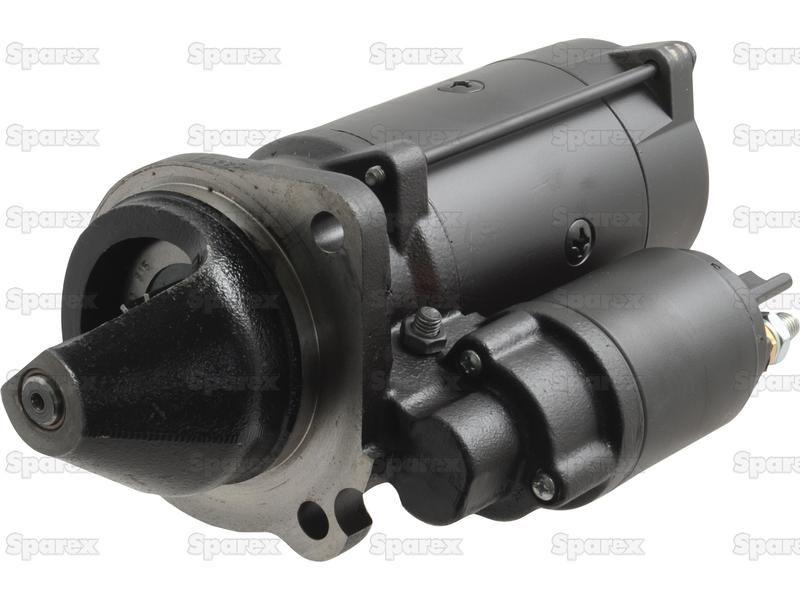

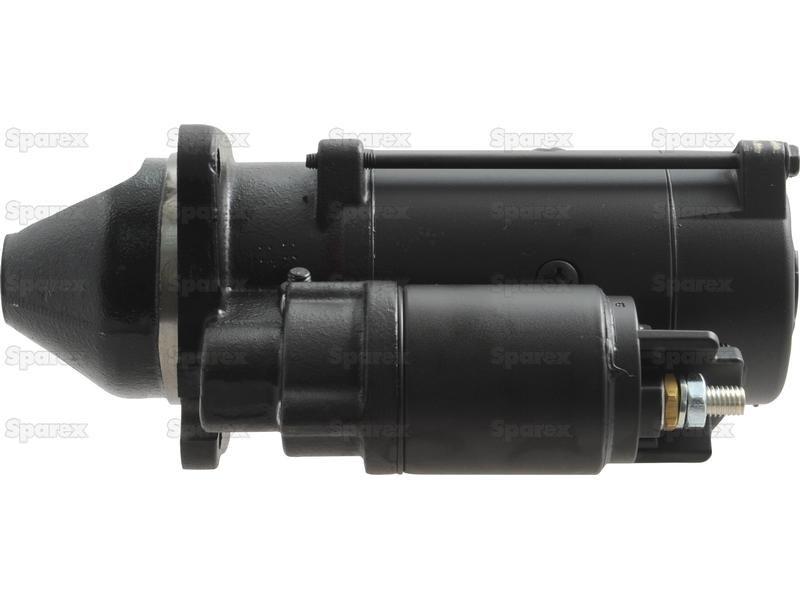

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for Renault 751 (S-1 Series)
Part Number: S.127858Categories: Electrical Accessories
Part Number: S.127858
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)
Technical Information
| Mounting Hole mm | 11.9 |
| E (mm) | 11.9 |
| A (mm) | 127 |
| Volts | 12V |
| Distance Between Teeth mm | 14.4 |
| Height (mm) | 149.2 |
| Length from Front Mounting Face to Rear mm | 210 |
| C (mm) | 24 |
| Number of Flange Holes | 3 |
| Fitting | 3 Hole Flange - LH Opening |
| Kilowatts | 3.2 |
| a Angle ° | 30 |
| D (mm) | 34.8 |
| Length (mm) | 387.4 |
| Tariff Code | 8511400090 |
| B (mm) | 89 |
| Number of Teeth: | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Bell Opening | LH |
| Brand | Mahle |
| Fits: | MWM Engine |
| Gear Reducted | Yes |
Manufacturer Part Numbers
| Bosch |
|---|
| 1359025, 1359072, 1362025, 1362043, 1362306, 1362314, 1367007, 1369017, 9000143002, 986011020, 986011021, 986011210 |
| Case IH |
| 130100090735 |
| Deutz-Fahr |
| 12187645 |
| Fendt |
| F13590206001, F514900060040, X830100004, X830100004000, X830100006, X830100009 |
| HELLA LTD |
| 8EA726182-001, 8EA737722-001, CS1173, CS550 |
| Iskra |
| IS1388 |
| Lester |
| 16394, 18229, 18460, 19730, 19731 |
| Lucas |
| LRS00566, LRS00568, LRS00632, LRS00639, LRS01069, LRS01083 |
| Magnetimar |
| 943252276, 943252282, MSR737, MSR740 |
| Renault |
| 6005003152, 6005003153, 6005011729, 6005701125, 7700026780, 7700046893, 7700501670, 7700519797, 7700525064, 7700525547, 7700627394 |
| Valeo |
| 432569, 432572, 433314, 433315 |
