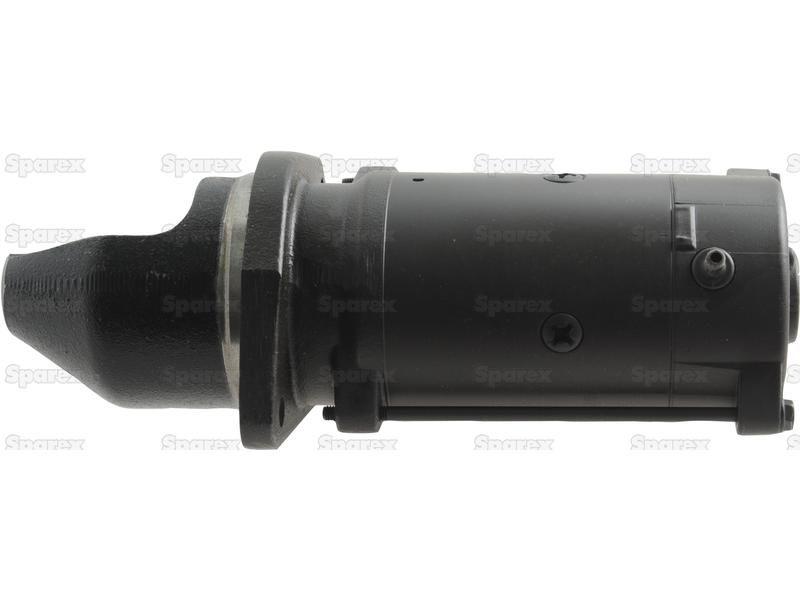

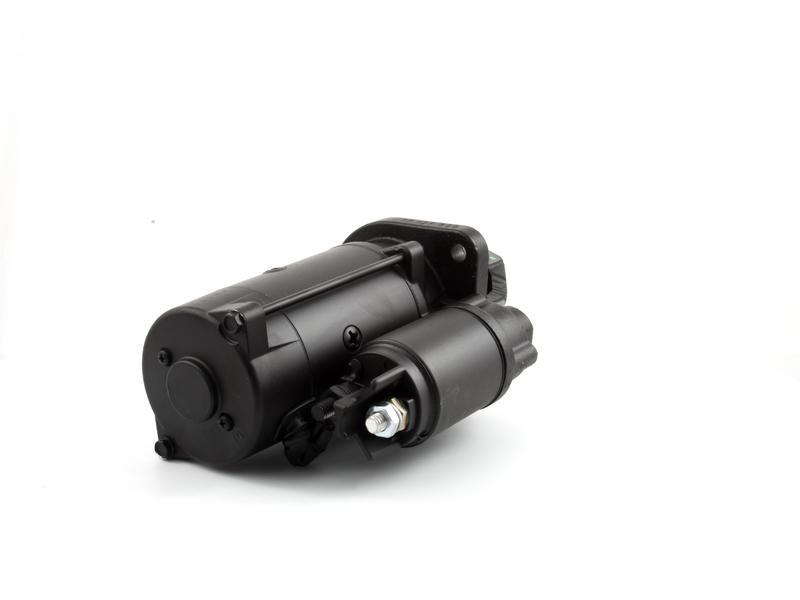

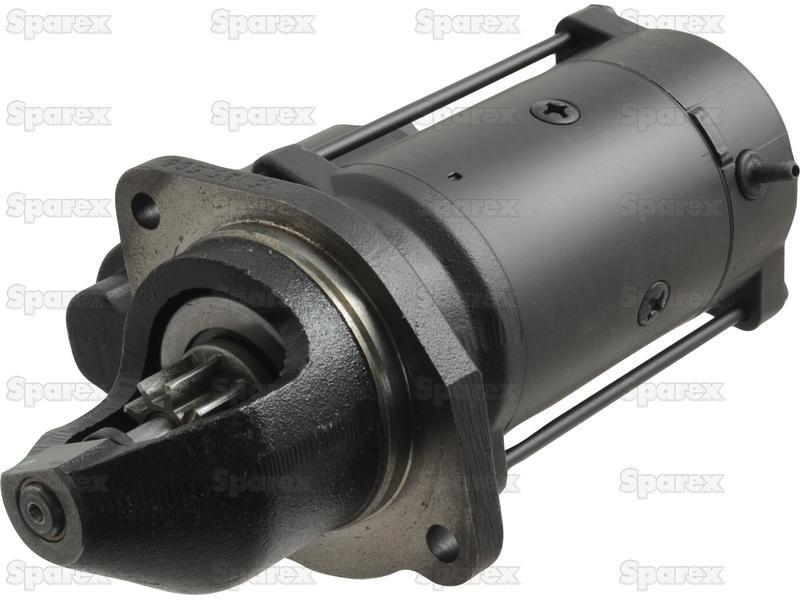

Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) for Case IH 531 (Combine)
Part Number: S.127871Categories: Electrical Accessories
Part Number: S.127871
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)

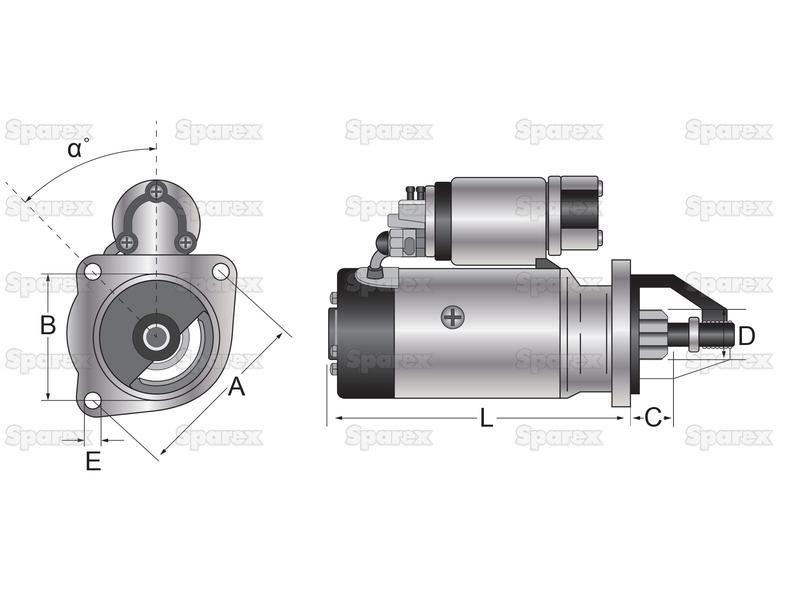

Technical Information
| a Angle ° | -45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 51 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 200 |
| Length mm | 311.2 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| Bosch |
|---|
| 1354073, 1354080, 1359014, 1359074, 1362063, 1362300, 1367001, 1369016, 986011130, 986017280 |
| Case IH |
| 1133958R1, 3055414R92, 3218677R91, 3228193EX, 3228193R91, 3229193EX, 3229193R91, B503362 |
| HELLA LTD |
| 8EA726151-001, CS503 |
| Iskra |
| IS1383 |
| Lester |
| 16566, 17228, 17320 |
| Lucas |
| LRS00570, LRS01988 |
| Magnetimar |
| 63224580, 63227508, 63227604, 943252277, MSN206 |
| Steyr |
| 2177710/2 |
| Valeo |
| 436077 |
