Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle) Bosch, Deutz-Fahr, Iskra, Kramer, Lester, Lucas, Volvo
Part Number: S.36190 - Categories: Electrical Accessories
£260.58
per item, including UK VAT and delivery
Part Number: S.36190
Grade: Replacement
Part Details
Starter Motor - 12V, 3.2Kw, Gear Reducted (Mahle)

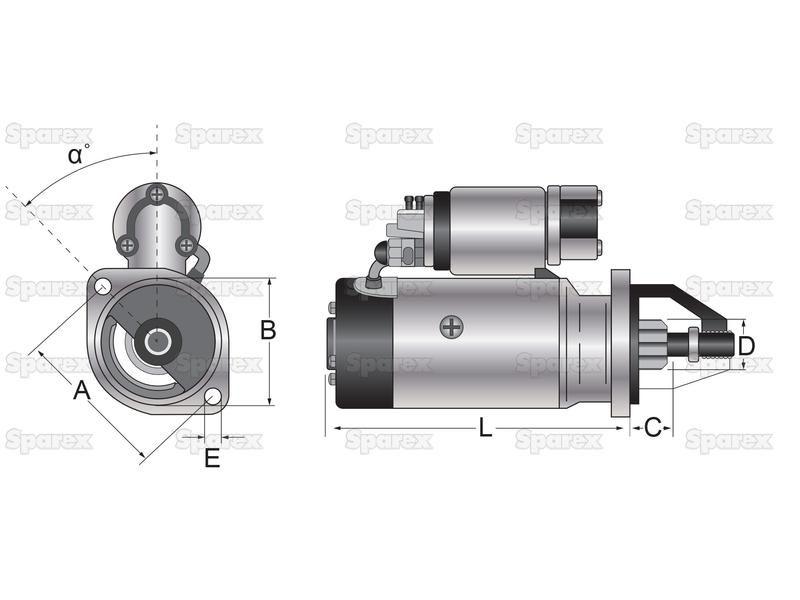

Technical Information
| a Angle ° | 40 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 26 |
| D mm | 35.5 |
| Distance Between Teeth mm | 12.4 |
| E mm | 10.9 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 139.7 |
| Kilowatts | 3.2 |
| Length from Front Mounting Face to Rear mm | 215 |
| Length mm | 330.2 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 2 |
| Number of Teeth | 11 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 225.4 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001218172, 0001218772, 0001223002, 0986017430, 0986018290, 1109370, 1218172, 1218772, 1223002, 986017430, 986018290, SR9972N, SR9972X |
| Deutz-Fahr |
| 01180180, 01180995, 02934505, 1180180, 1180995, 2934505, 2934631, 3045250 |
| Iskra |
| IS1072 |
| Kramer |
| 1000000406, 2000808899, 808899 |
| Lester |
| 18230 |
| Lucas |
| LRS01422 |
| Volvo |
| 9002904386 |
