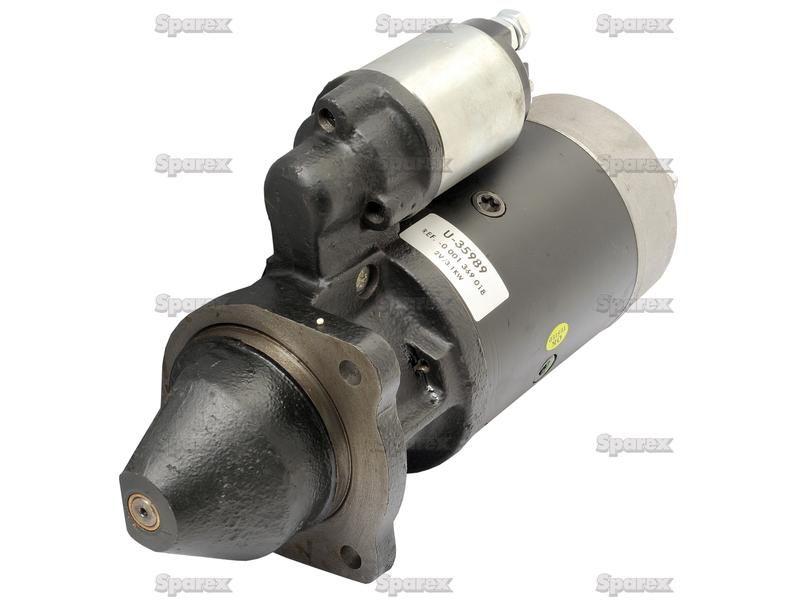

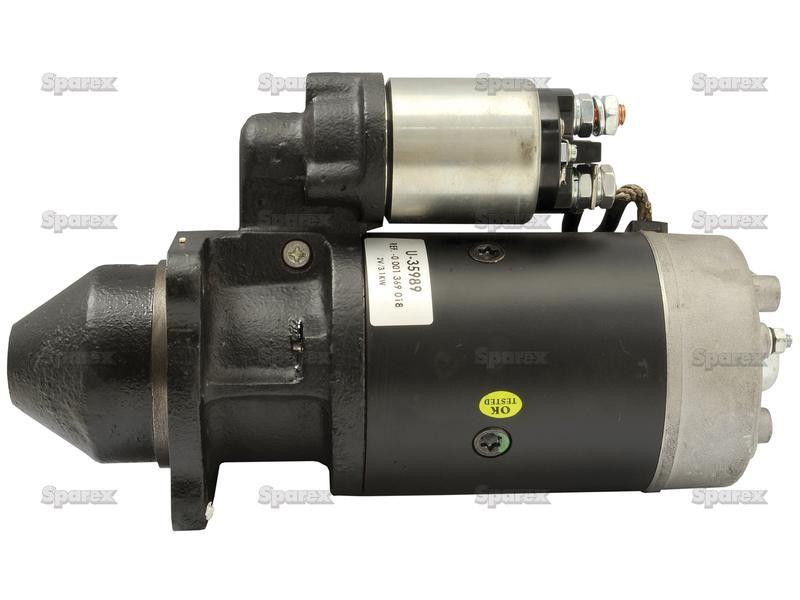

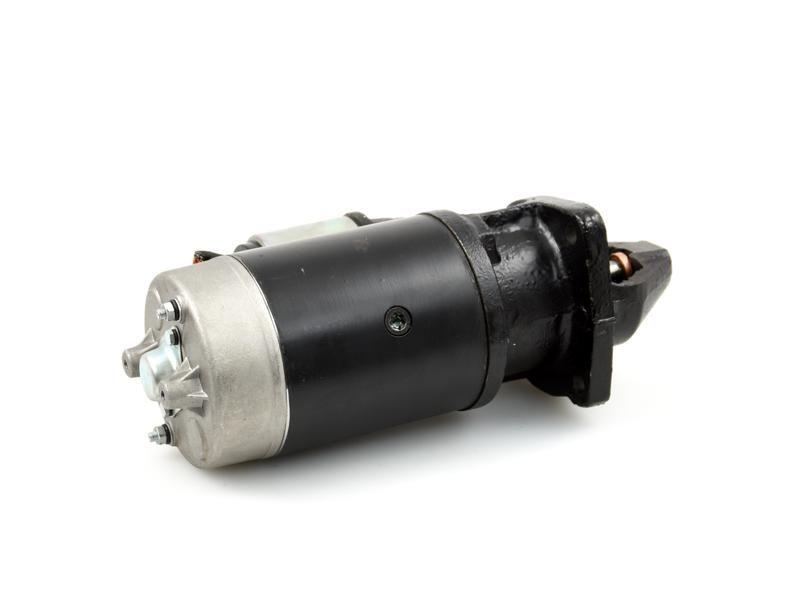

Starter Motor - 12V, 3.1Kw (Sparex) for Case IH
Part Number: S.359891Categories: Electrical Accessories
Part Number: S.359891
Grade: Replacement
Part Details
Starter Motor - 12V, 3.1Kw (Sparex)
Technical Information

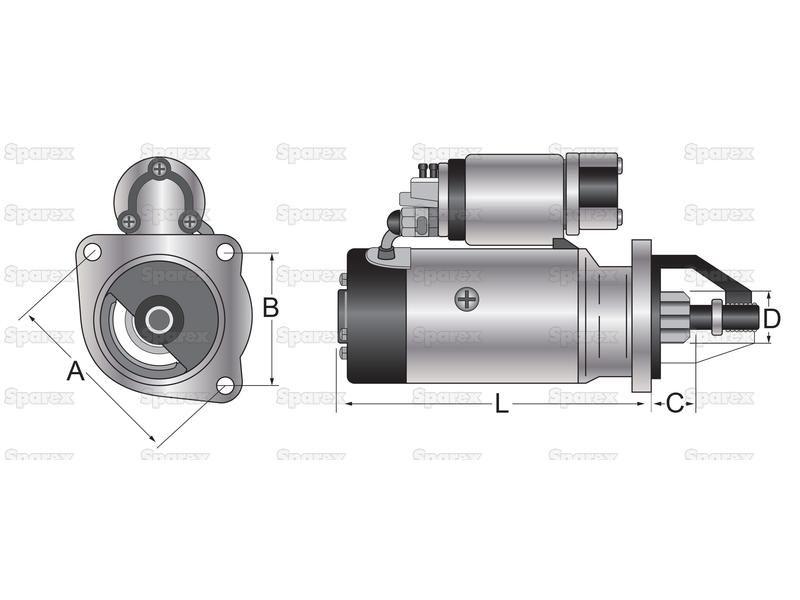

| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Sparex |
| C mm | 25 |
| D mm | 41 |
| Distance Between Teeth mm | 14.3 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | No |
| Height mm | 190 |
| Kilowatts | 3.1 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 380 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 11 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 220 |
Models
| Case IH |
|---|
| 323 (23 Series), 353 (23 Series), 383 (23 Series), 423 (23 Series), 433 (33 Series), 440 (40 Series), 453 (Combine - IH 15 Series), 533 (International), 540 (530 Series), 633 (33 Series), 640 (40 Series), 733 (33 Series), 740 (40 Series), 833 (33 Series), 840 (40 Series), 940 (40 Series) |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001359075, 0001362064, 0001362301, 0001369018, 0986012680, 0986017290 |
| Case IH |
| 3228192R91, 787804R92 |
| Iskra |
| IS0705 |
