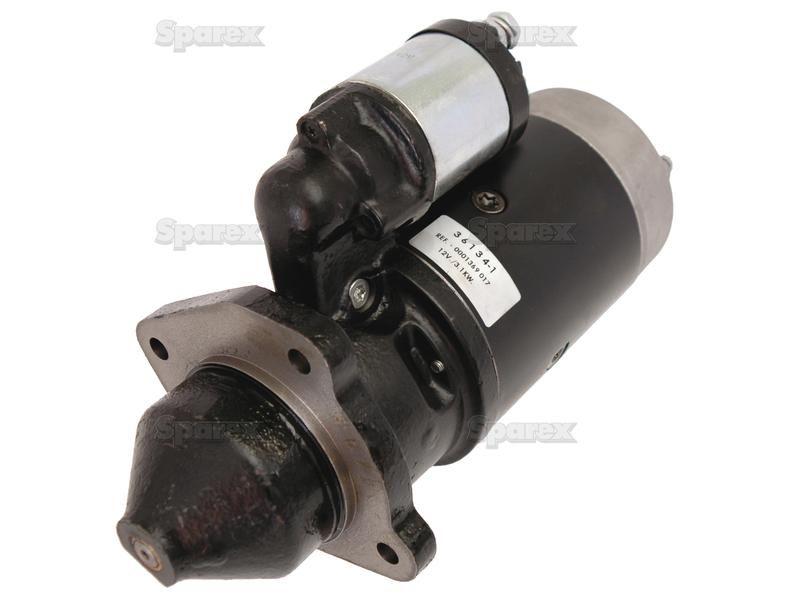

Starter Motor - 12V, 3.1Kw (Mahle) for Renault 103-14 (12-14 Series)
Part Number: S.36134Categories: Electrical Accessories
Part Number: S.36134
Grade: Replacement
Part Details
Starter Motor - 12V, 3.1Kw (Mahle)
Technical Information
| a Angle ° | 30 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 24 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 11.5 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | No |
| Height mm | 152.4 |
| Kilowatts | 3.1 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 387.4 |
| Mounting Hole mm | 11.5 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Related Products | 39950 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060180 |
| Bosch |
| 0001359025, 0001369017, 1359025, 1369017 |
| Fendt |
| G514900060100 |
| Iskra |
| IS0706 |
| Lester |
| 18229 |
| Lucas |
| LRS01069, LRS1069 |
| Renault |
| 6005003153, 6005701125, 7700519797, 7700525547 |
