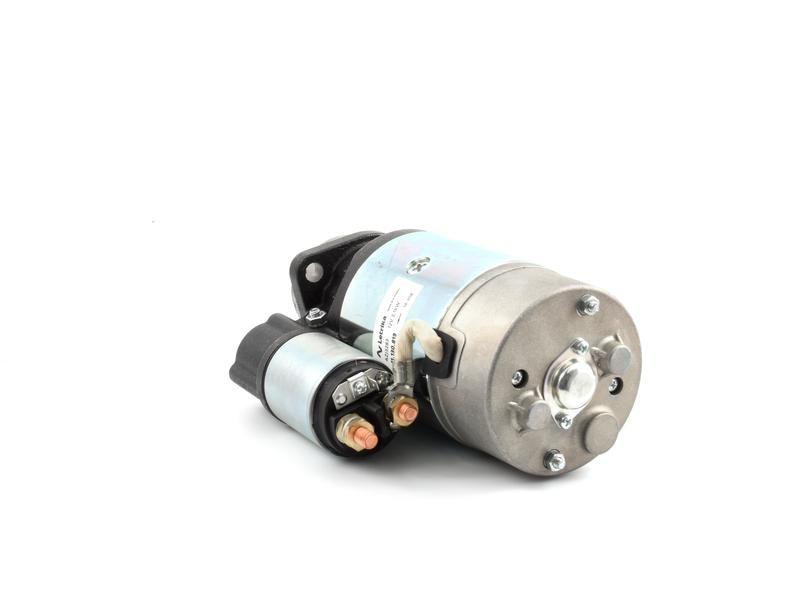

Starter Motor - 12V, 3.1Kw (Mahle) for John Deere 3030 (30 Series)
Part Number: S.361070Categories: Electrical Accessories
Part Number: S.361070
Grade: Replacement
Part Details
Starter Motor - 12V, 3.1Kw (Mahle)

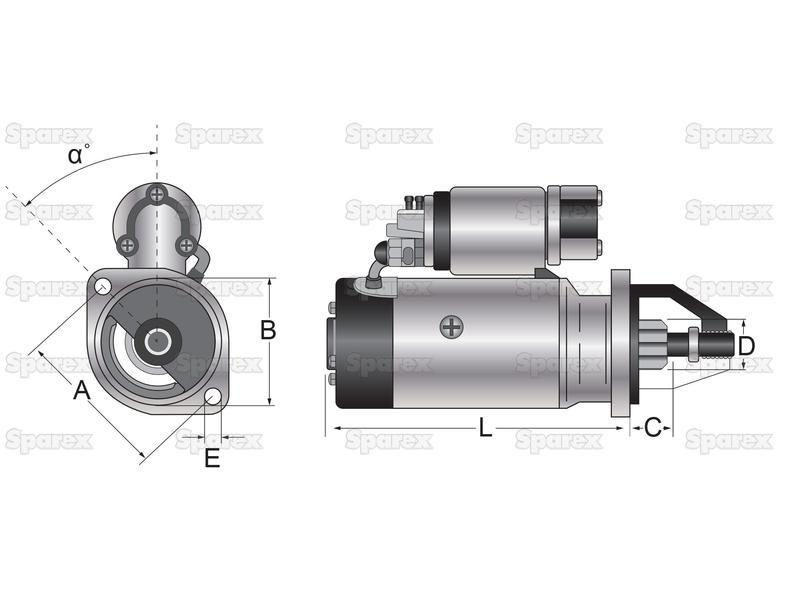

Technical Information
| a Angle ° | -45 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 38 |
| D mm | 32 |
| Distance Between Teeth mm | 12.3 |
| E mm | 13.5 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | No |
| Height mm | 152.4 |
| Kilowatts | 3.1 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 381 |
| Mounting Hole mm | 13.5 |
| Number of Flange Holes | 2 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 38047, 39951 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 228.6 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060190 |
| Bosch |
| 0001367075, 0001367078, 0001369005, 0001369022, 0986014740, 1367075, 1367078, 1369001, 1369005, 1369022, 986014740, SR901X |
| Iskra |
| 11.130.569, 11.130.819, AZJ3181, AZJ3283, IS0569 |
| John Deere |
| AL110503, AL110504, AL110597, AL110598, AL11503, AL62772, AL78760, RE500733, RE60384 |
| Lester |
| 16563, 17095 |
| Lucas |
| LRS01484 |
| Renault |
| 6005012975, 6005012976, 6005022635, 7700044184 |
| Valeo |
| 436070 |
