Starter Motor - 12V, 3.1Kw (Mahle) for Deutz-Fahr DX6.50 (DX6 Series)
Part Number: S.36117Categories: Electrical Accessories
Part Number: S.36117
Grade: Replacement
Part Details
Starter Motor - 12V, 3.1Kw (Mahle)

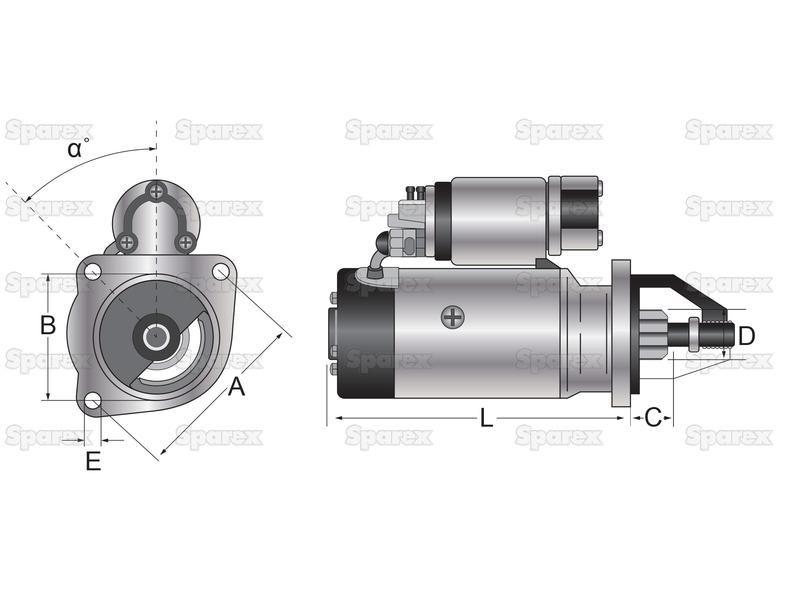

Technical Information
| a Angle ° | -52 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 31 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | No |
| Height mm | 146.1 |
| Kilowatts | 3.1 |
| Length from Front Mounting Face to Rear mm | 235 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 38047, 39950 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 219.1 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060120 |
| Bosch |
| 0001369014, 0001369024, 0986016550, 1369014, 1369024, 986016550, SR9942X |
| Deutz-Fahr |
| 01179318, 01179319, 01180805, 1179318, 1179319, 1180805 |
| Fendt |
| F119900060010, F716903060040 |
| Iskra |
| IS0567 |
| Lester |
| 17074, 18026 |
| Lucas |
| LRS00987 |
