Starter Motor - 12V, 3.1Kw (Mahle) for Case IH
Part Number: S.359880Categories: Electrical Accessories
Part Number: S.359880
Grade: Replacement
Part Details
Starter Motor - 12V, 3.1Kw (Mahle)

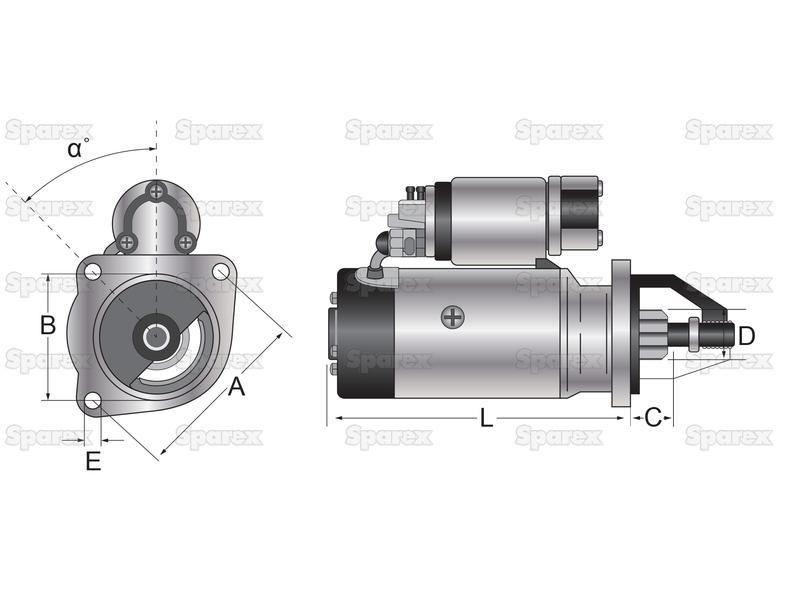

Technical Information
| a Angle ° | -45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 51 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | No |
| Height mm | 146.1 |
| Kilowatts | 3.1 |
| Length from Front Mounting Face to Rear mm | 230 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 38047, 39954 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 215.9 |
Models
| Case IH |
|---|
| 1046 (46 Series), 1055 (55 Series), 1055XL, 1056 (56 Series), 1056XL, 1246 (46 Series), 1255 (55 Series), 1255XL, 1455 (55 Series), 1455XL, 523 (23 Series), 553 (International), 624 (24 Series), 644 (44 Series), 654 (24 Series), 724 (24 Series), 743 (43 Series), 743 (International), 743XL, 744 (44 Series), 744 (International), 745 (45 Series), 745 (International), 745S, 745XL, 824 (24 Series), 844 (44 Series), 844S, 844XL, 845 (45 Series), 845XL, 856 (56 Series), 856XL, 946 (46 Series), 955 (55 Series), 955XL, 956 (56 Series), 956XL |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060160 |
| Bosch |
| 0001354073, 0001354080, 0001359014, 0001359074, 0001362063, 0001362300, 0001367001, 0001369016, 0986011130, 0986017280, 1369016, 986017280 |
| Case IH |
| 1133958R1, 121905A1, 3228193R91, B503362 |
| Claas |
| 6005706638 |
| Fiat |
| 121905AEX |
| Ford New Holland |
| 3228193R91 |
| Iskra |
| IS0704 |
| Lester |
| 17228 |
| Lucas |
| LRS570 |
| McCormick |
| 121905A1 |
