Starter Motor - 12V, 2.8Kw (Sparex) for Massey Ferguson 50 (Industrial Tractors)
Part Number: S.41138Categories: Electrical Accessories
Part Number: S.41138
Grade: Replacement
Part Details
Starter Motor - 12V, 2.8Kw (Sparex)
Technical Information

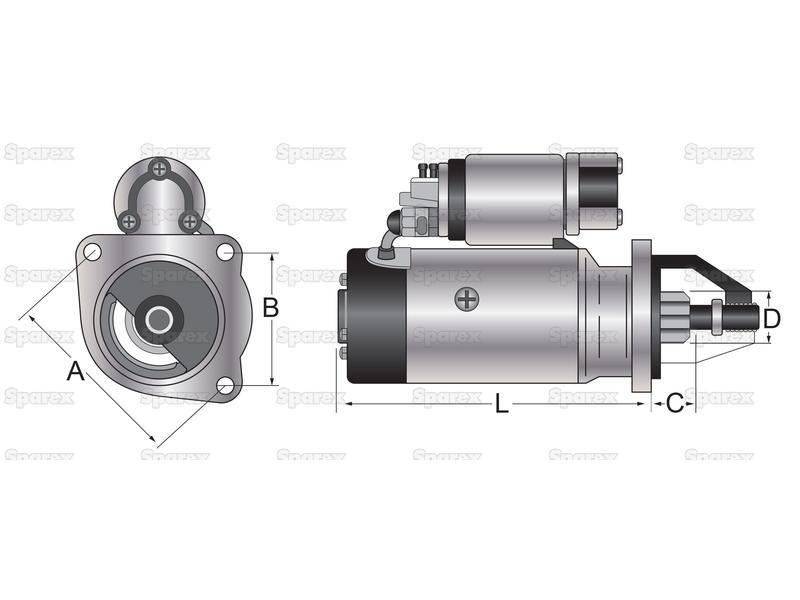

| A mm | 146 |
| B mm | 12.5 |
| Bell Opening | LH |
| Brand | Sparex |
| C mm | 28.7 |
| D mm | 39.6 |
| Distance Between Teeth mm | 14.1 |
| Earth Stud | Yes |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | No |
| Height mm | 180 |
| Kilowatts | 2.8 |
| Length from Front Mounting Face to Rear mm | 230 |
| Length mm | 162 |
| Mounting Hole mm | 13.5 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.7 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 197 |
Manufacturer Part Numbers
| Case IH |
|---|
| 3597371R2 |
| Landini |
| 1691805M1, 1691805M2, 1868283M3, 1868283M4, 1868283M5, 3597371M2, 3763363M91, 3763363M92, 515913M92 |
| Lucas |
| 26273, 26411, 27540, LRS301 |
| Massey Ferguson |
| 1691805M1, 1808449M2, 1868283M3, 1868283M4, 1868283M5, 1868283R5, 26411, 3597371M2, 3597371R2, 3763363M91, 3763363M92, 515913M92 |
