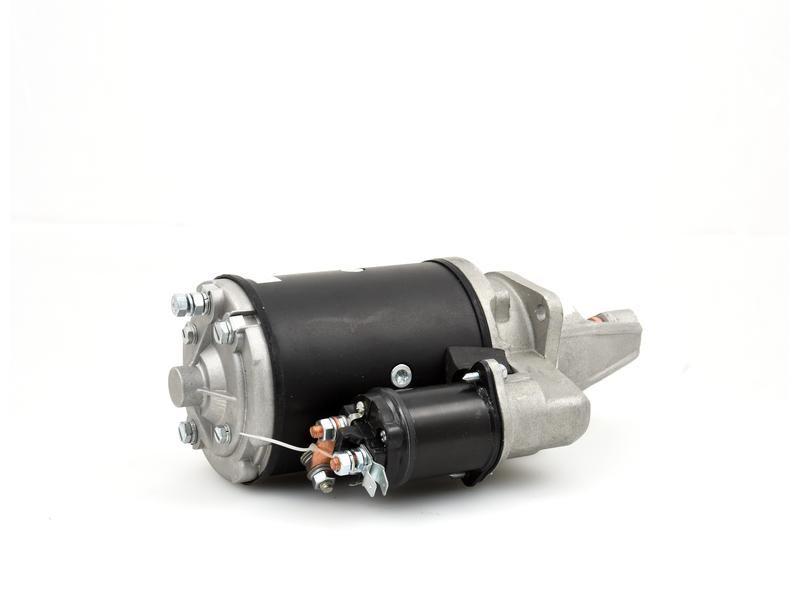

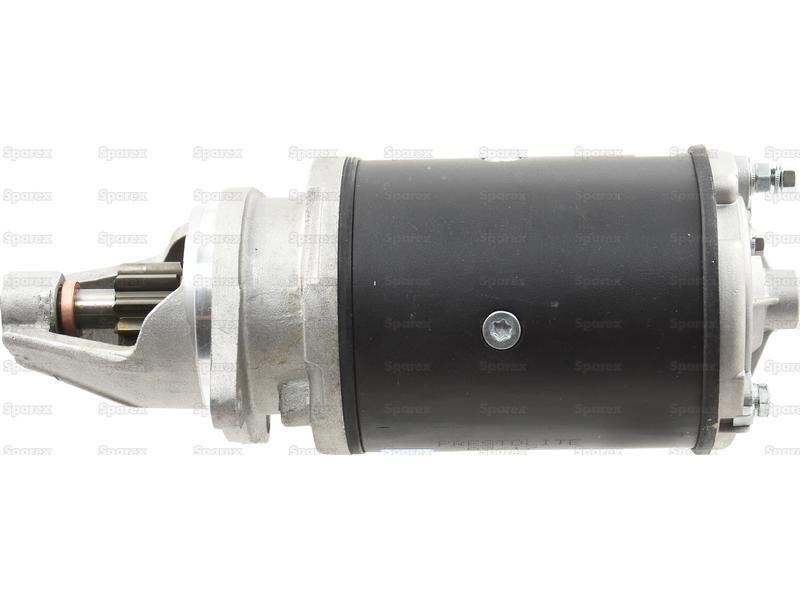

Starter Motor - 12V, 2.8Kw (Sparex) for Landini 16500 (Large Series)
Part Number: S.41141Categories: Electrical Accessories
Part Number: S.41141
Grade: Replacement
Part Details
Starter Motor - 12V, 2.8Kw (Sparex)
Technical Information

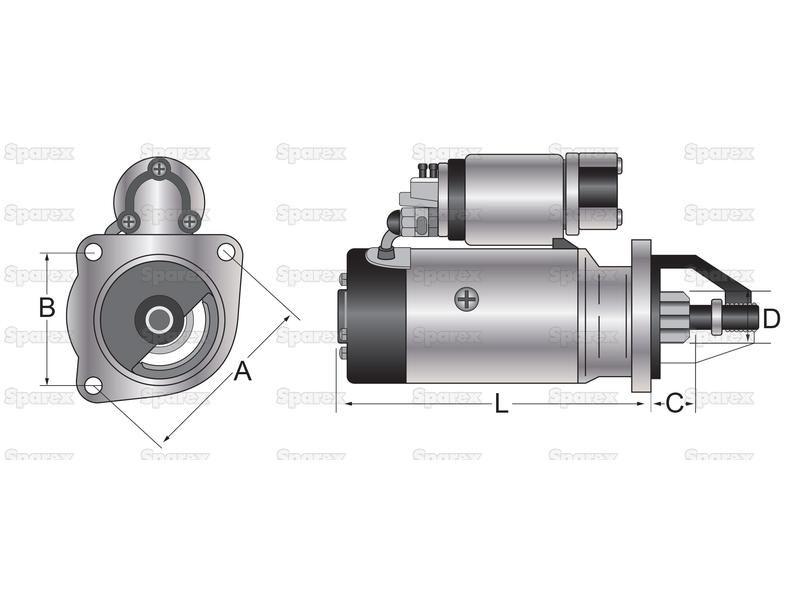

| Number of Teeth: | 10 |
| Mounting Hole mm | 11 |
| A (mm) | 127 |
| Volts | 12V |
| Distance Between Teeth mm | 14.2 |
| Length (mm) | 162 |
| Height (mm) | 180 |
| Kilowatts | 2.8 |
| Length from Front Mounting Face to Rear mm | 240 |
| Number of Flange Holes | 3 |
| Fitting | 3 Hole Flange - RH Opening |
| D (mm) | 39.6 |
| C (mm) | 51 |
| Outer Diameter of Battery Terminal mm | 7.5 |
| Tariff Code | 8511400090 |
| B (mm) | 89 |
| Gear Reducted | No |
| Bell Opening | RH |
| Brand | Sparex |
| Earth Stud | Yes |
Manufacturer Part Numbers
| Iskra |
|---|
| IS0896 |
| Landini |
| 1618050M4 |
| Lucas |
| 27533, LRS553 |
| Massey Ferguson |
| 1618050E4, 1618050E4ATG, 1618050M4, 1618050R4, 1618050T, 26398, 27533 |
