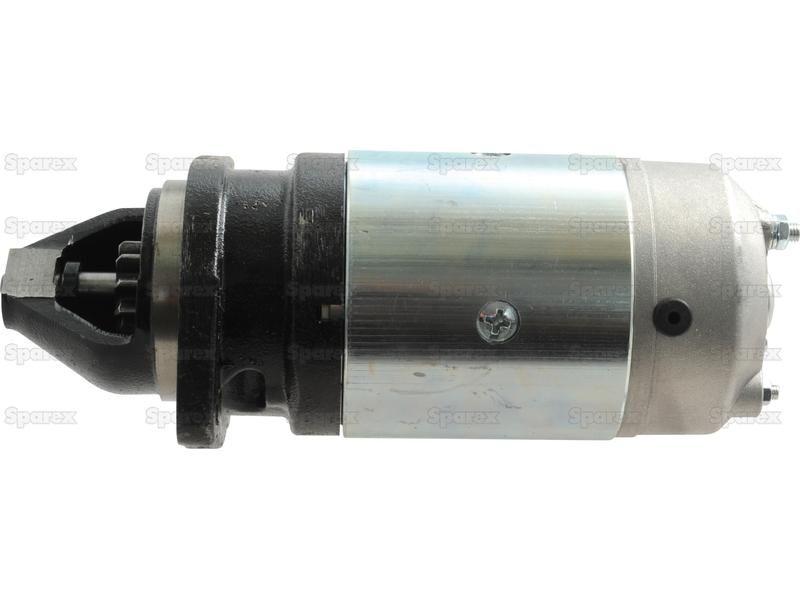

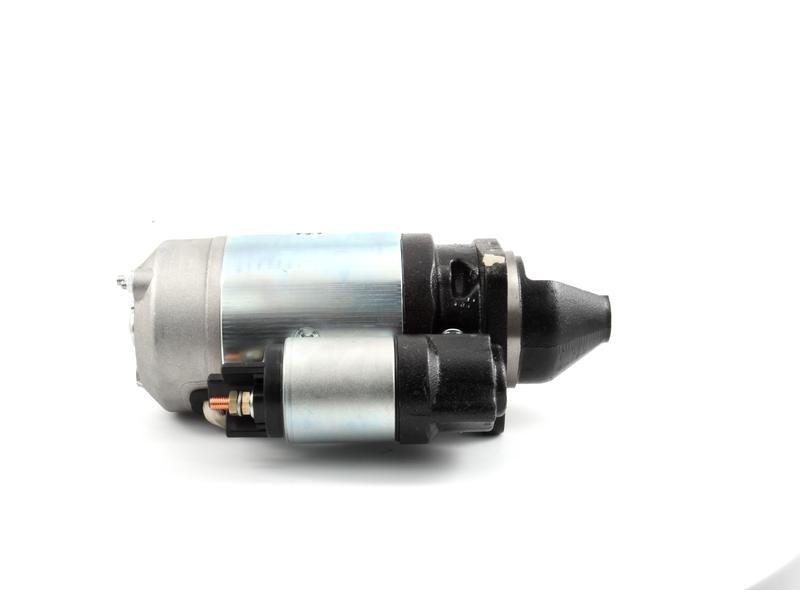

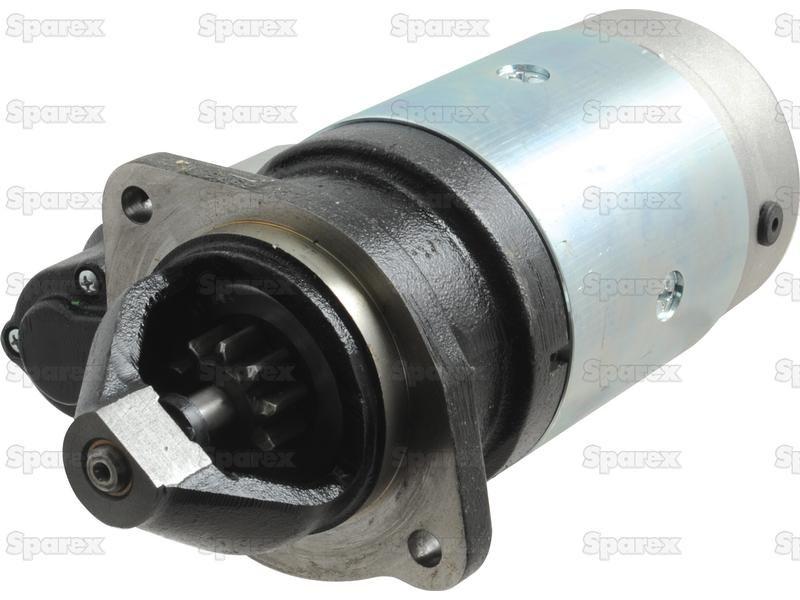

Starter Motor - 12V, 2.8Kw (Mahle) for JCB 532 (Loader)
Part Number: S.35976Categories: Electrical Accessories
Part Number: S.35976
Grade: Replacement
Part Details
Starter Motor - 12V, 2.8Kw (Mahle)

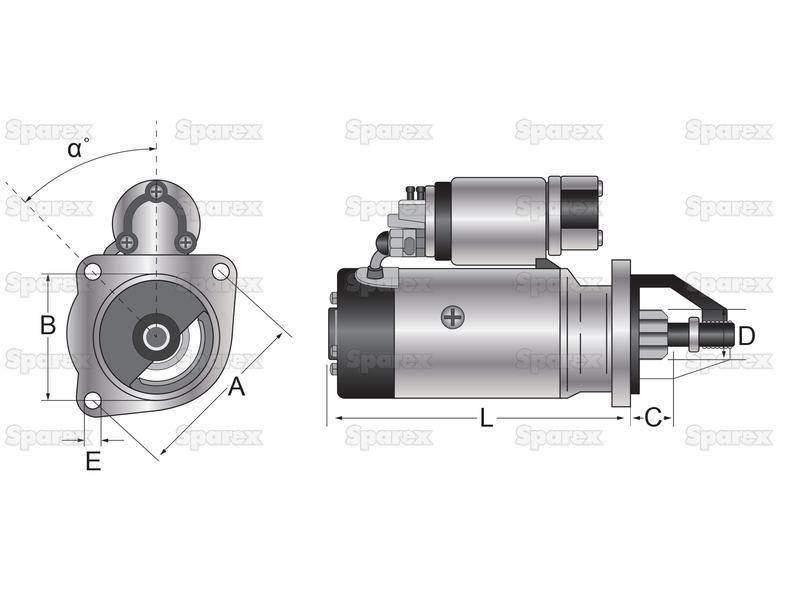

Technical Information
| a Angle ° | -40 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 32.5 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | No |
| Height mm | 152.4 |
| Kilowatts | 2.8 |
| Length from Front Mounting Face to Rear mm | 250 |
| Length mm | 387.4 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 39956 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900060070 |
| Bosch |
| 0001367040, 9000143416 |
| Case IH |
| 234987A1, 73326810 |
| Claas |
| 6005700081 |
| HELLA LTD |
| CS946 |
| Iskra |
| IS0509 |
| JCB |
| 714/29500 |
| Landini |
| 12873004, 1691806M1, 1860093M2, 1868285M2, 1868285M3, 2873003, 2873A031, 2873B072, 3539390M91, 3539390M92, 3542185M, 3542185M91, 3542185M92, 3546391M, 3546391M91, 3546391M92, 3597372M1, 3597372M2, 3763362M91, 3763362M94 |
| Lester |
| 17072, 17650, 18289, 18482, 19736 |
| Lucas |
| 26271, 26271R, 26404, 26404R, 26410, 26413, 26413R, 27464, 27539, 27539R, 27572, 27572B, LRS00232, LRS215, LRS232, LRS519, NSB529, NSB531, NSB540, S5027 |
| Massey Ferguson |
| 1447731M1, 1680064M1, 1691806M1, 1691806R1, 1860093M2, 1868285M2, 1868285M3, 1868285M91, 1868285R3, 1868287T, 2873B057, 2873B072, 3519400M92, 3597372M1, 3597372M2, 3597372R2, 3763362M91, 3763362M92, 3930506E1, 3930506E1ATG, 3930506R1, 3930509R1, 4224340M91, 4226701M91 |
| Perkins |
| 26410R, 2873003, 2873B055, 2873B072 |
| Renault |
| 6005003154, 6005021272, 6005700081, 7700011850, 7701031686 |
| Valeo |
| 433316 |
