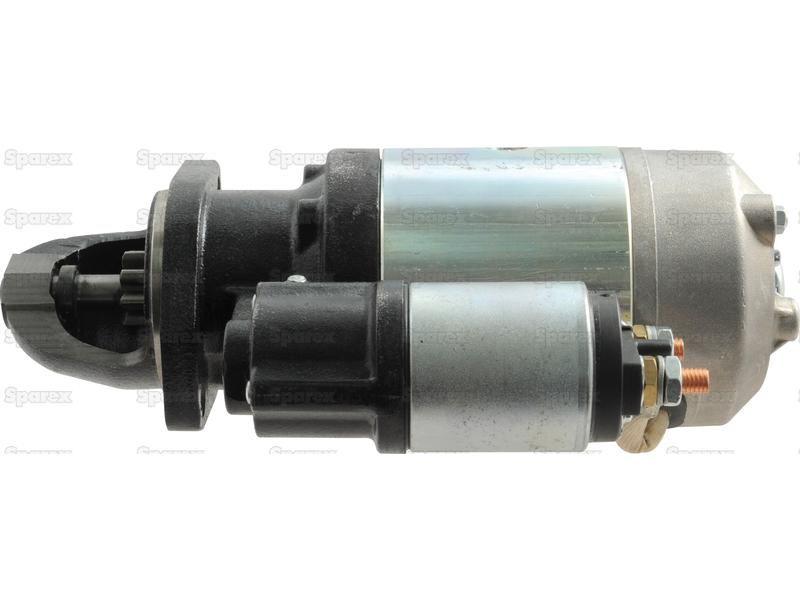

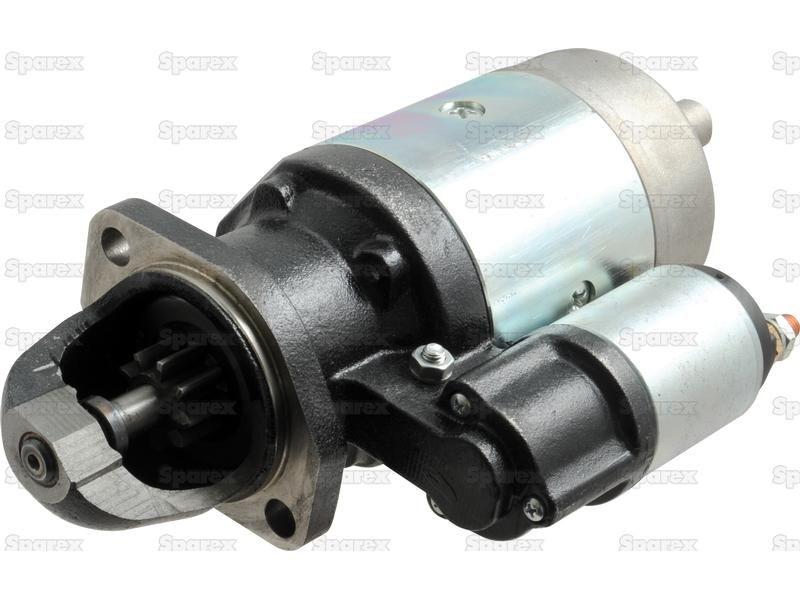

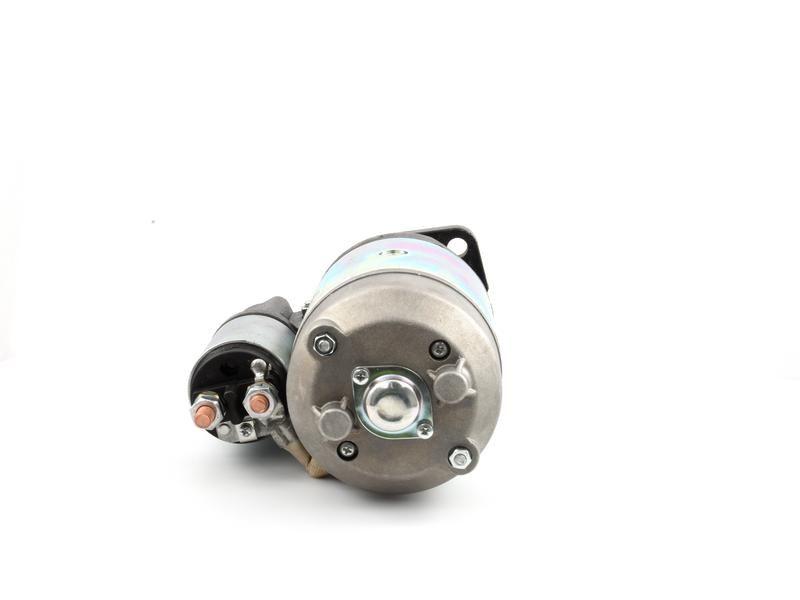

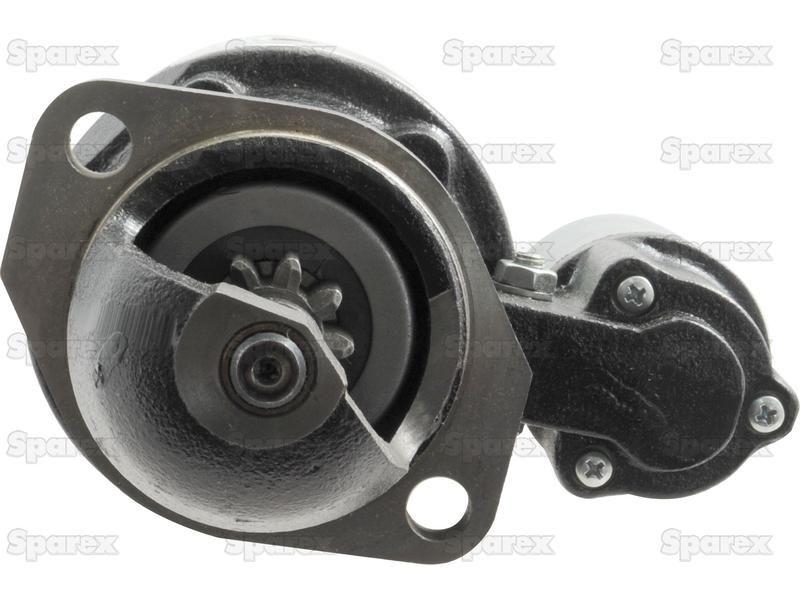

Starter Motor - 12V, 2.7Kw (Mahle) for Steyr, Bosch, Case IH, Iskra, Lester
Part Number: S.36135Categories: Electrical Accessories
Part Number: S.36135
Grade: Replacement
Part Details
Starter Motor - 12V, 2.7Kw (Mahle)

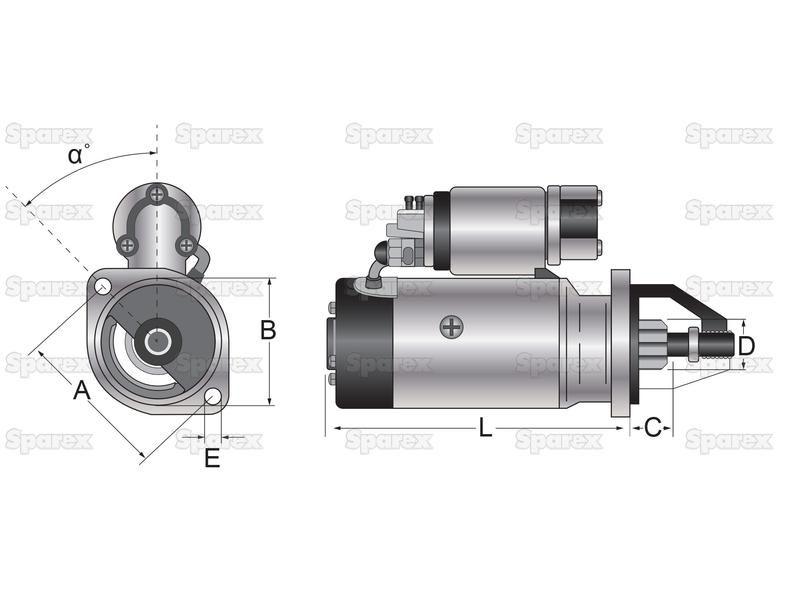

Technical Information
| a Angle ° | 35 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 24 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 12.5 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | No |
| Kilowatts | 2.7 |
| Length from Front Mounting Face to Rear mm | 240 |
| Length mm | 240 |
| Mounting Hole mm | 12.5 |
| Number of Flange Holes | 2 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 39954, 39963 |
| Tariff Code | 8511400090 |
| Volts | 12V |
Models
| Steyr |
|---|
| 8055 (Various Series), 8060 TURBO, 8065 TURBO, 8070, 8075 (Various Series), 8080 TURBO, 8090 (Various Series), 8100 (Various Series), 8120 TURBO, 8140 (Various Series), 8150 (Various Series), 8160 TURBO, 8165, 8170 TURBO, 8180 TURBO |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001362072, 1362072 |
| Case IH |
| 711104R93 |
| Iskra |
| IS0709 |
| Lester |
| 32399 |
| Steyr |
| 31100090017 |
