Starter Motor - 12V, 2.7Kw (Mahle) for Renault 681 (S-1 Series)
Part Number: S.35979Categories: Electrical Accessories
Part Number: S.35979
Grade: Replacement
Part Details
Starter Motor - 12V, 2.7Kw (Mahle)
Technical Information

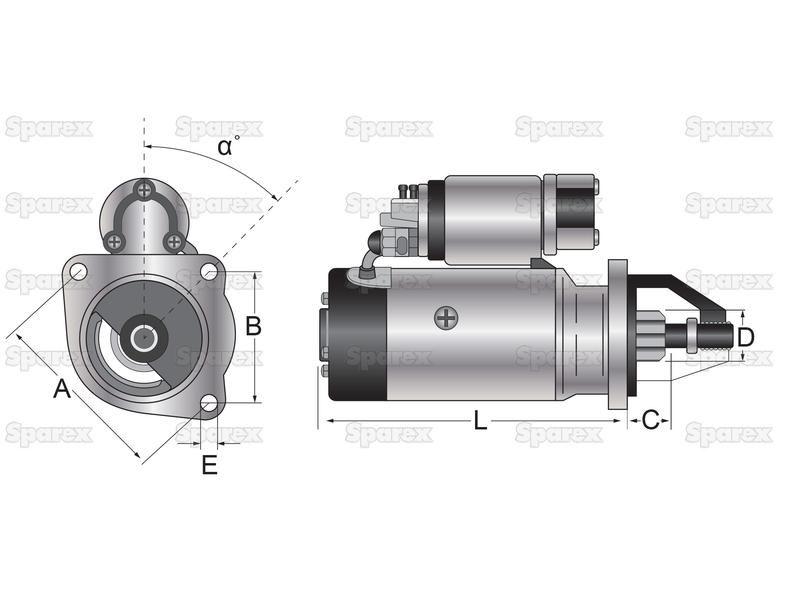

| Mounting Hole mm | 11.5 |
| E (mm) | 11.5 |
| A (mm) | 127 |
| Alternative to | 127858 |
| Volts | 12V |
| Distance Between Teeth mm | 14.4 |
| Height (mm) | 146.1 |
| Kilowatts | 2.7 |
| Length from Front Mounting Face to Rear mm | 230 |
| C (mm) | 24 |
| Number of Flange Holes | 3 |
| Fitting | 3 Hole Flange - LH Opening |
| a Angle ° | 30 |
| D (mm) | 34.8 |
| Length (mm) | 381 |
| Related products | 39950 |
| Tariff Code | 8511400090 |
| B (mm) | 89 |
| Number of Teeth: | 9 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Bell Opening | LH |
| Brand | Mahle |
| Gear Reducted | No |
Manufacturer Part Numbers
| AGCO |
|---|
| C830100009000 |
| Bosch |
| 0001362025, 0001362043, 0001362306, 0001362314, 0986011020, 0986011021 |
| Fendt |
| F13590206001, X830100004000 |
| Iskra |
| IS0669 |
| Lester |
| 16394, 18460, 19730, 19731 |
| Lucas |
| LRS00568, LRS00632, LRS00639, LRS01083, LRS1083, LRS568, LRS632, LRS639 |
| Magnetimar |
| 94325227 |
| Renault |
| 6005003152, 6005011729, 7700026780, 7700046893, 7700501670, 7700519797, 7700525064, 7700627394 |
| Valeo |
| 432569, 432572, 433314, 433315 |
